Engine Controls Schematics

Engine Controls Schematics

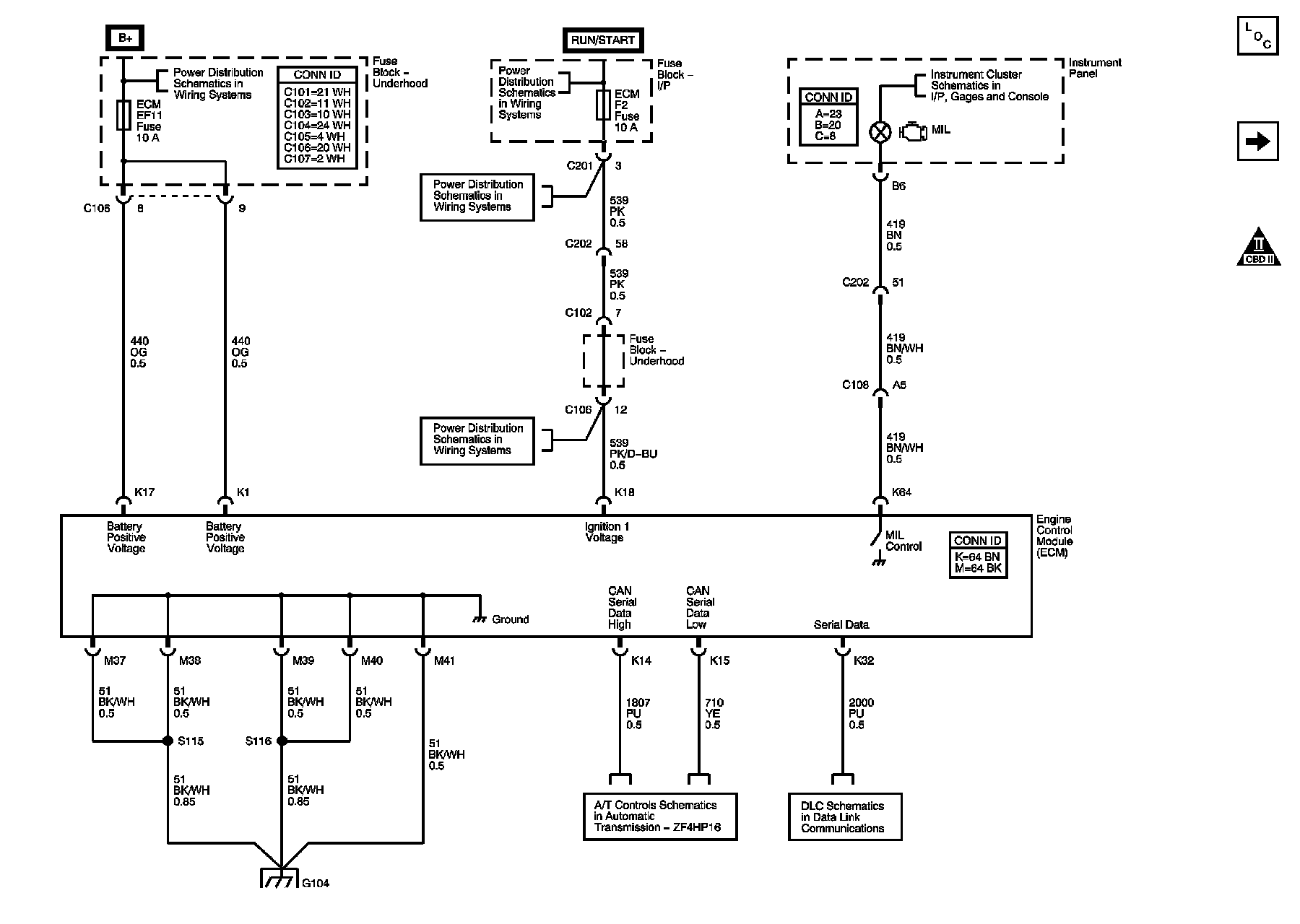

Module Power, Ground, Serial Data, Malfunction Indicator Lamp (MIL)





Master Electrical Component List

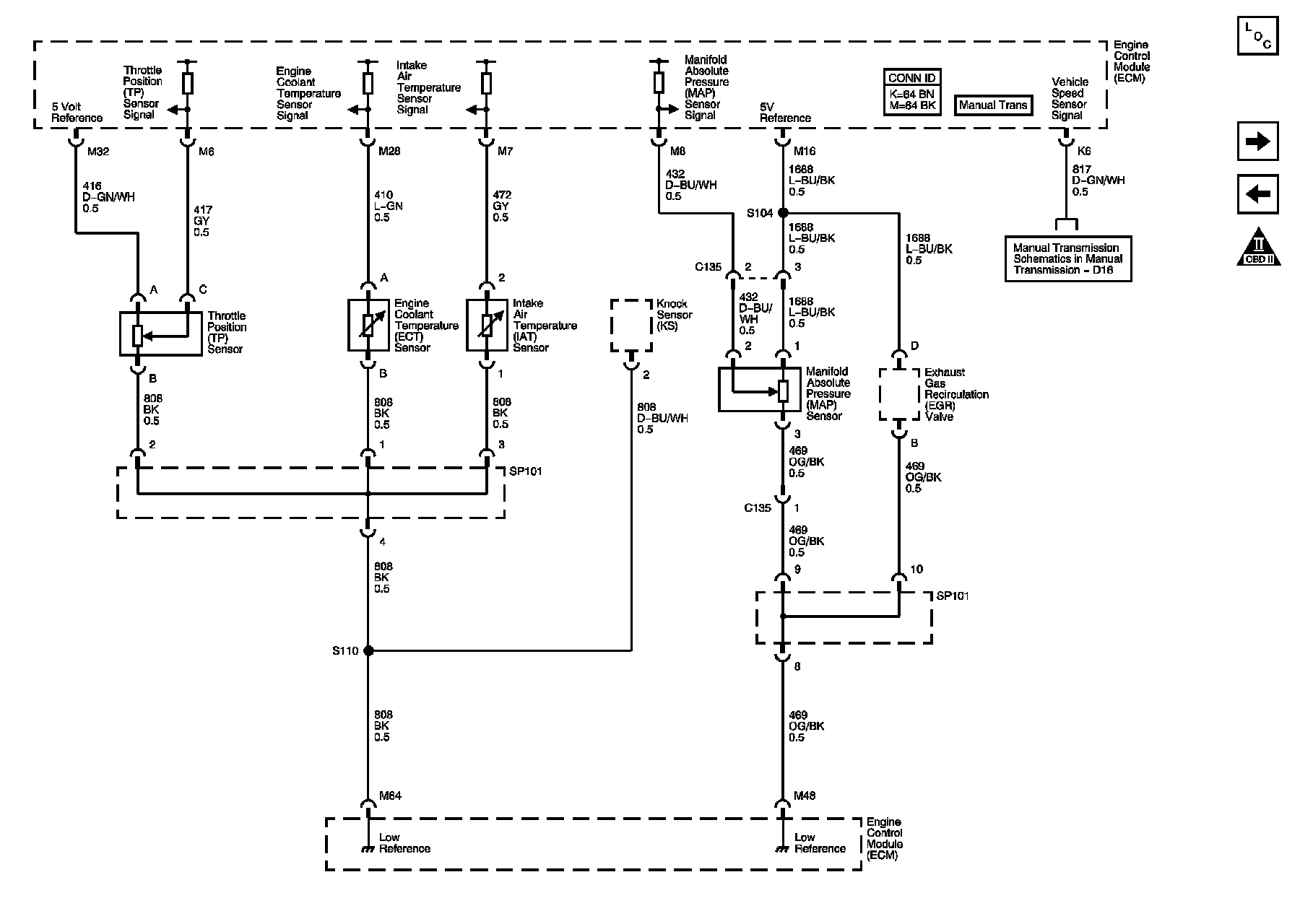

Engine Data Sensors Pressure and Temperature
OBD II Symbol Description Notice
Underhood Fuse Block ECM Fuse
I/P Fuse Block ECM Fuse
Power Steering, Shift Program, Air Bag, Seat Belt, Oil Pressure, MIL, ABS, TCS, Parking Brake, and Charing Warning Lamps
I/P Fuse Block ECM Fuse
I/P Fuse Block ECM Fuse
Power, Ground, Hold Switch and DLC
Data Link Connector Schematics
G104, G103, G105

Engine Data Sensors- Pressure and Temperature





Master Electrical Component List

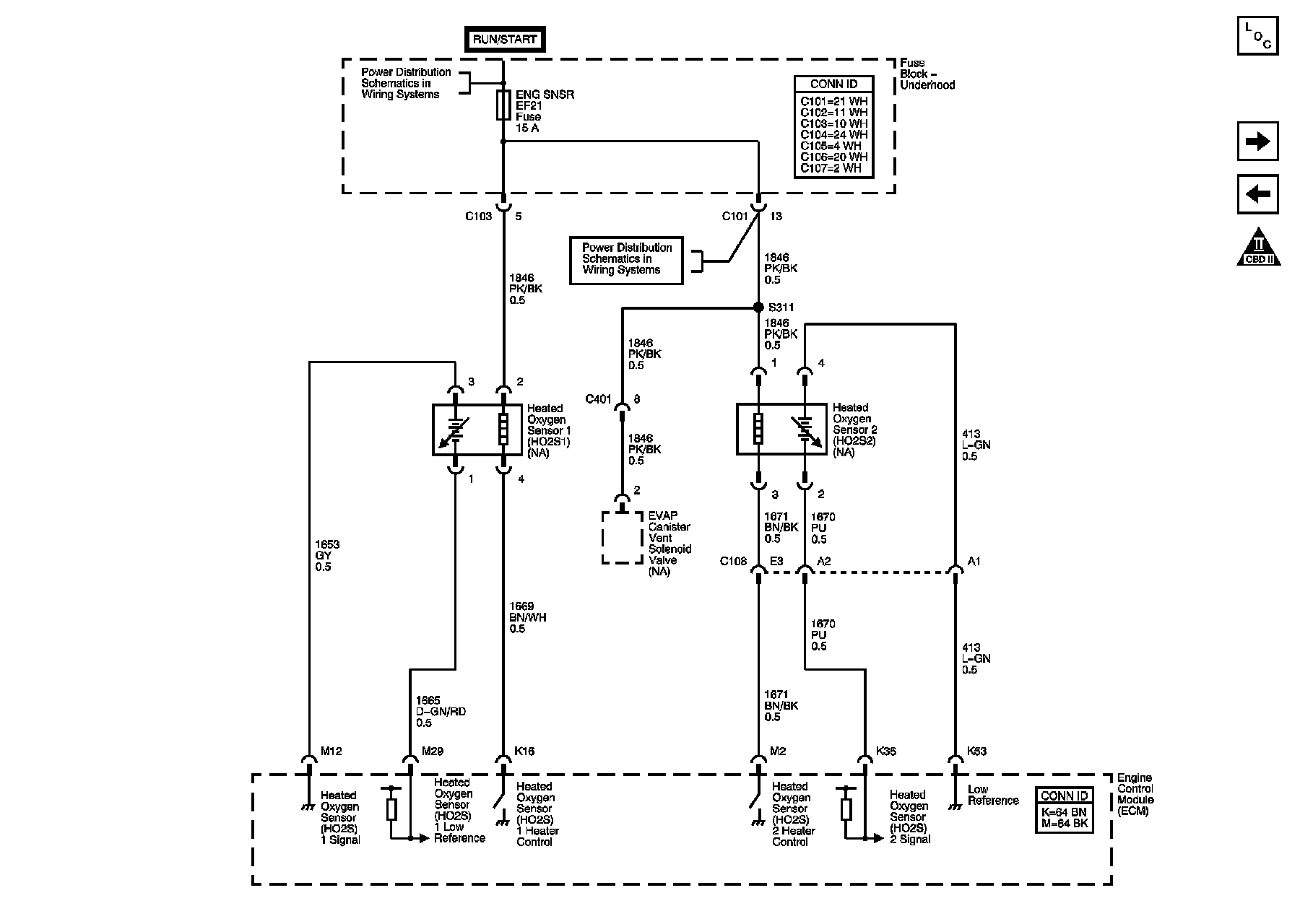

Oxygen Sensors
Module Power, Ground, Serial Data, Malfunction Indicator Lamp
OBD II Symbol Description Notice
Manual Transmission Schematics - D16

Oxygen Sensors (O2S)





Master Electrical Component List

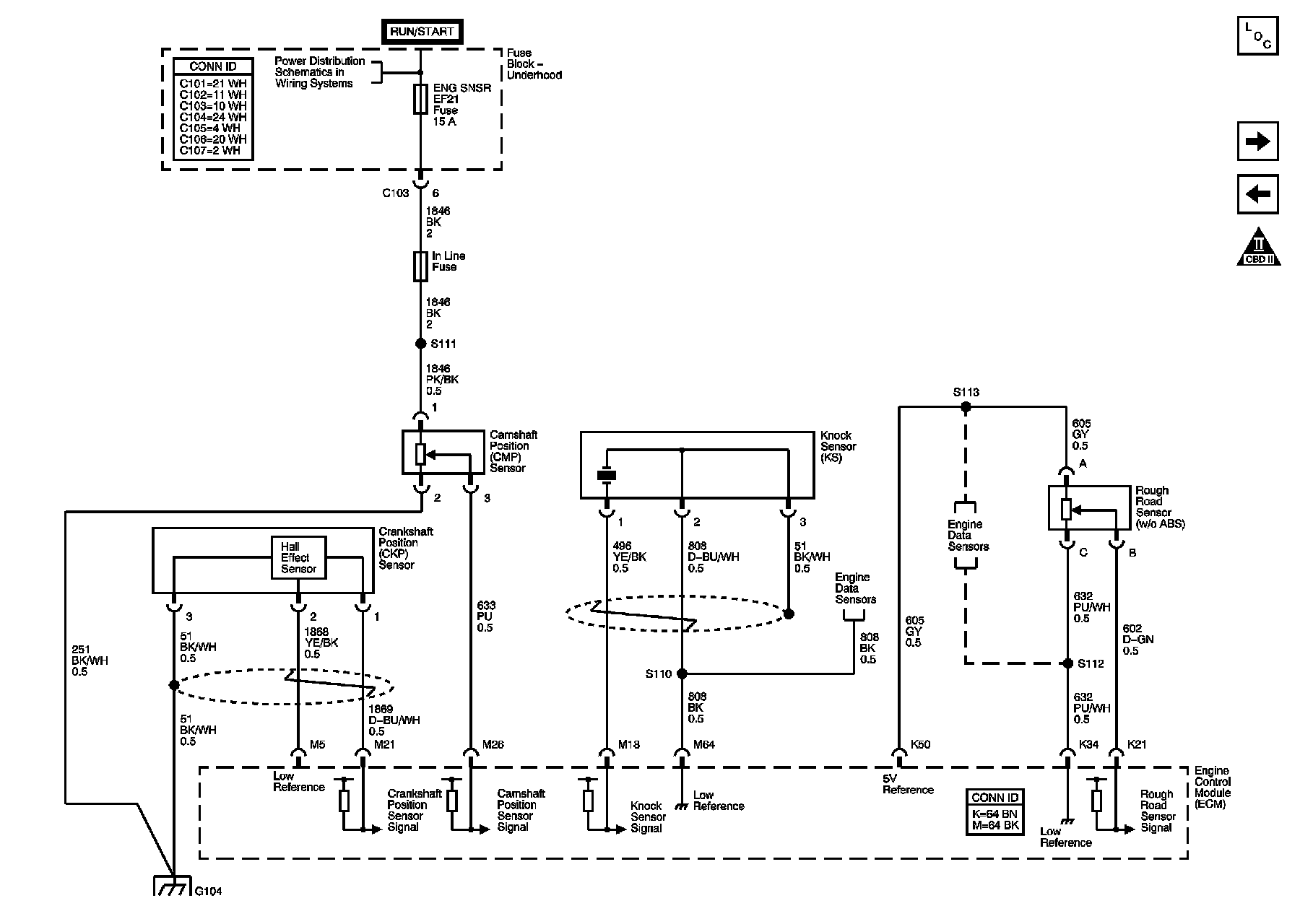

CKP, CMP, Knock, Rough Road Sensors
Engine Data Sensors Pressure and Temperature
OBD II Symbol Description Notice
Underhood Fuse Block MAIN Relay and ECM, ENG SNSR, and INJ Fuses MR-140
Underhood Fuse Block MAIN Relay and ECM, ENG SNSR, and INJ Fuses MR-140

CKP, CMP, Knock, Rough Road Sensors





Master Electrical Component List

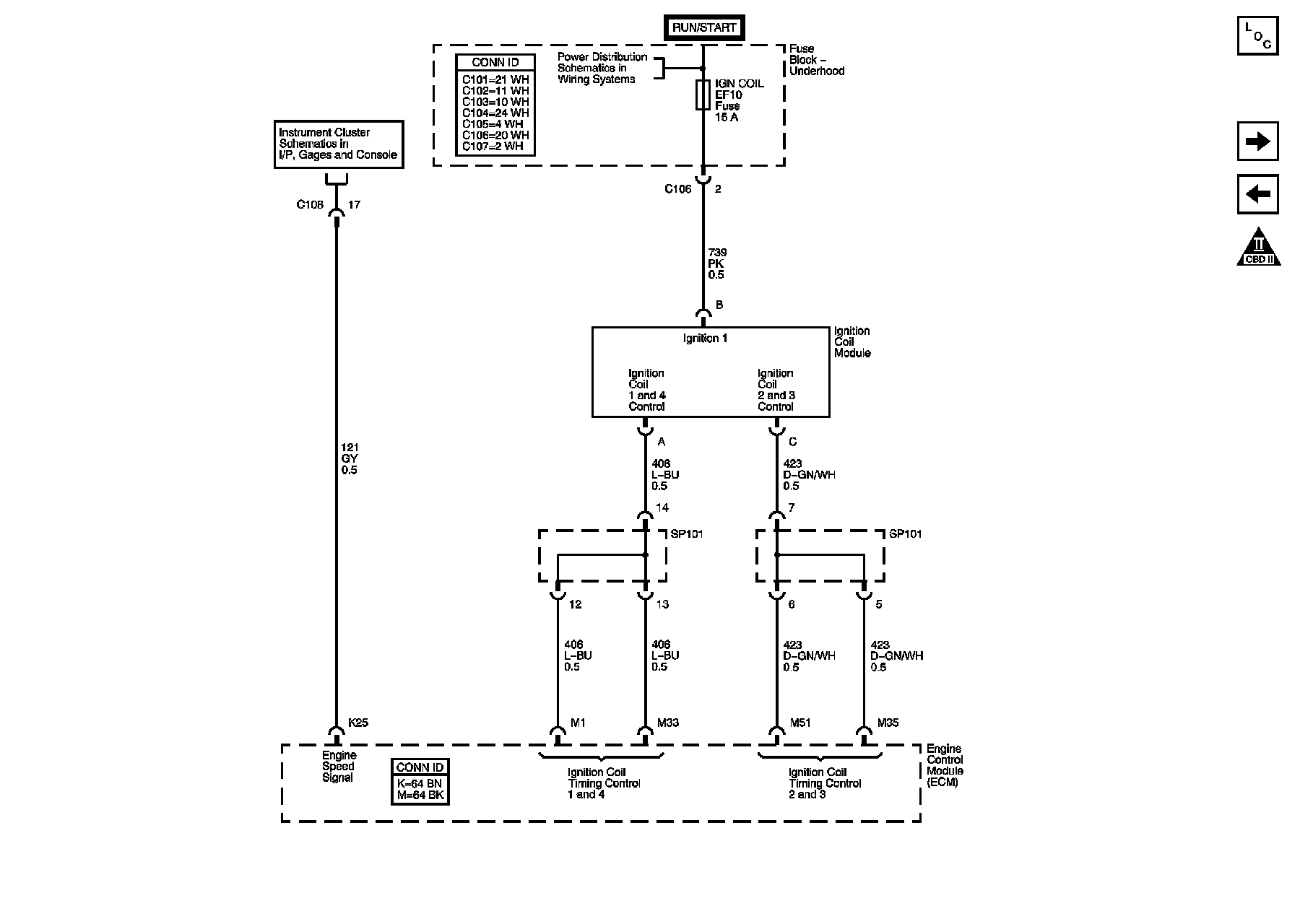

Ignition System
Oxygen Sensors
OBD II Symbol Description Notice
Underhood Fuse Block MAIN Relay and ECM, ENG SNSR, and INJ Fuses 1.5L
G104, G103, G105

Ignition System





Master Electrical Component List

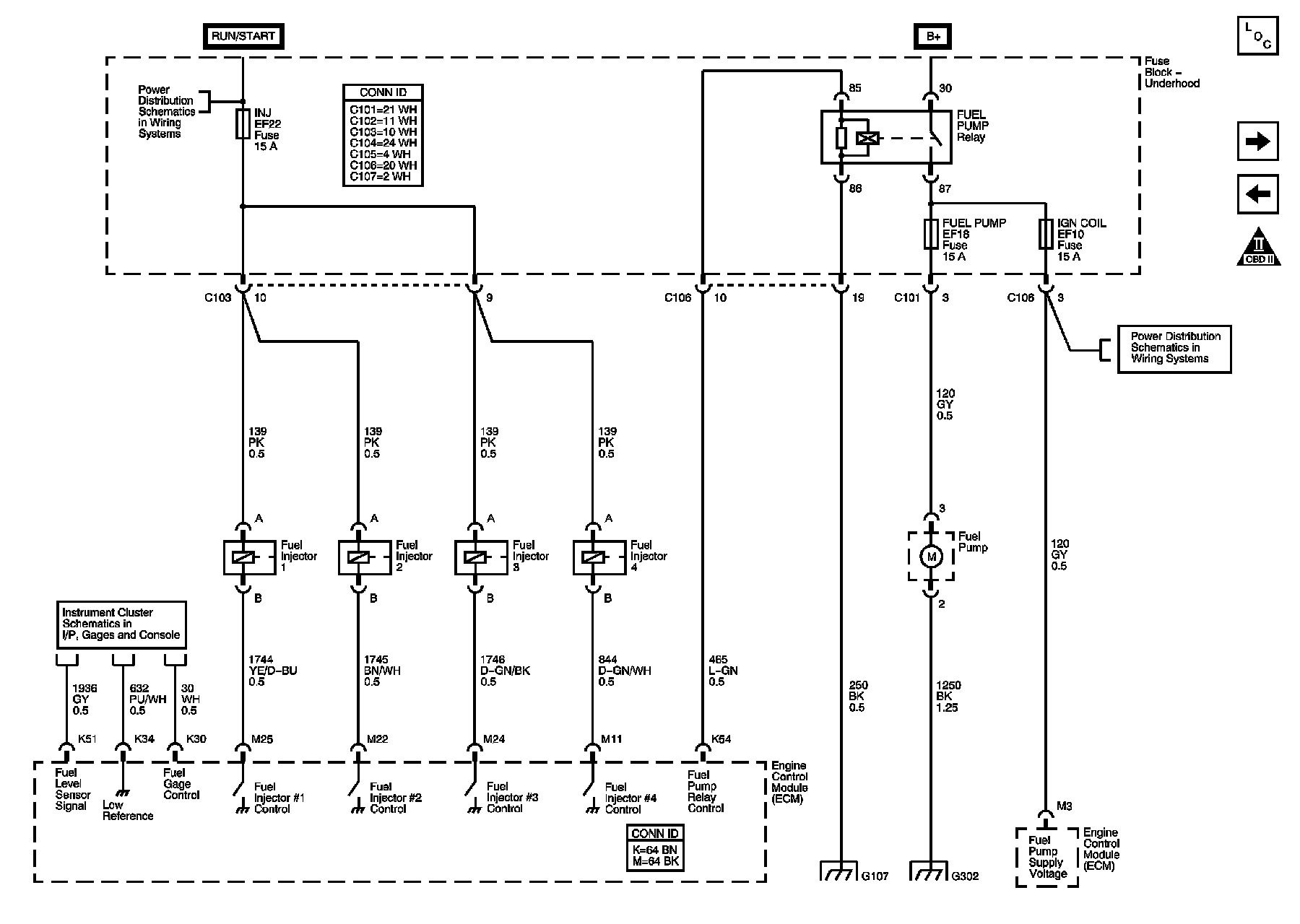

Fuel Pump and Fuel Injectors
CKP, CMP, Knock, Rough Road Sensors
OBD II Symbol Description Notice
Underhood Fuse Block FUEL PUMP Relay and FUEL PUMP and IGN COIL Fuses
Power, Ground and Gauges 1.8L/2.0L

Fuel Pump and Fuel Injectors





Master Electrical Component List

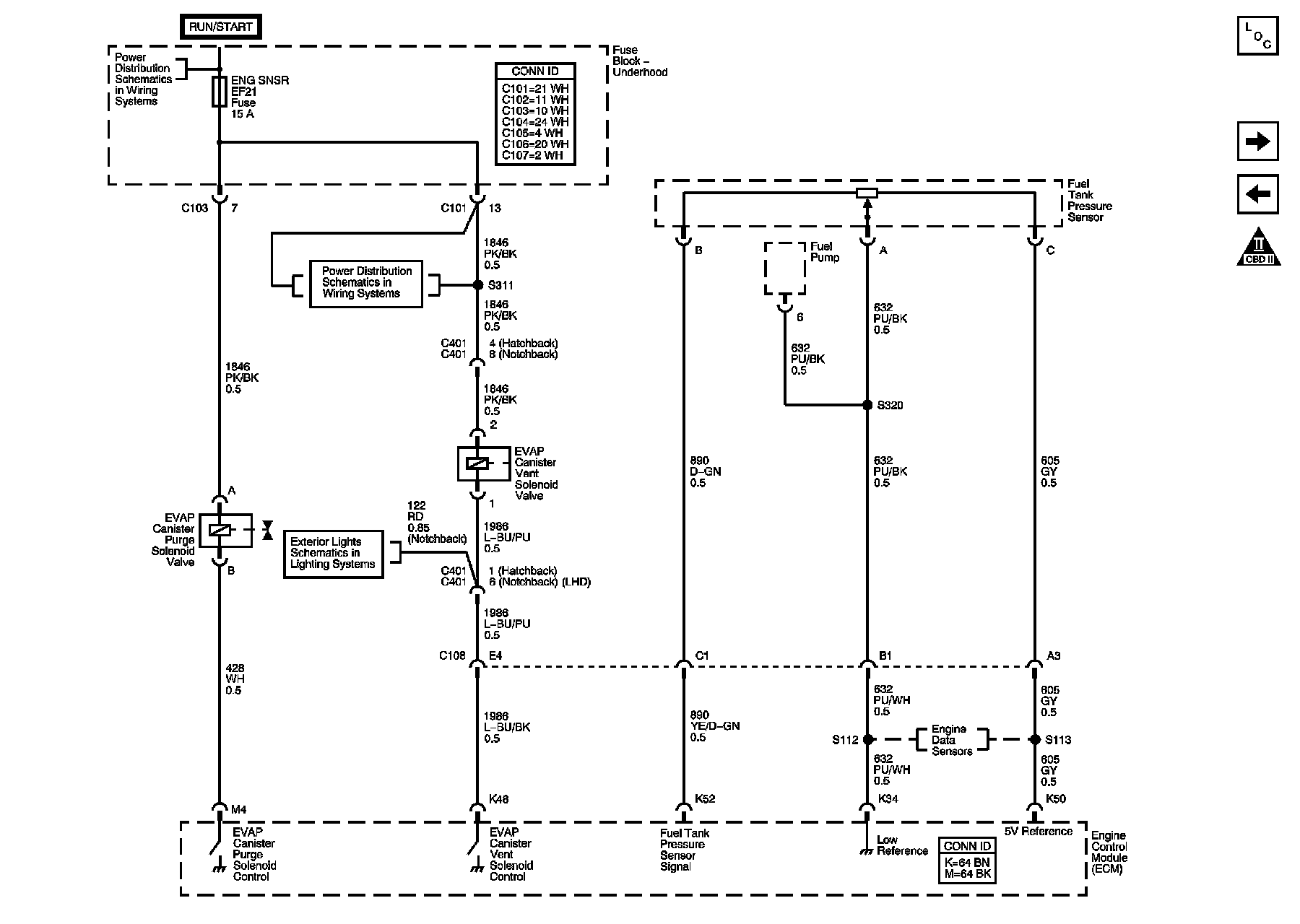

Fuel Controls EVAP Controls
Ignition System
OBD II Symbol Description Notice
Underhood Fuse Block MAIN Relay and ECM, ENG SNSR, and INJ Fuses MR-140
Underhood Fuse Block FUEL PUMP Relay and FUEL PUMP and IGN COIL Fuses
Power, Ground and Gauges 1.8L/2.0L
G201 (1 of 2)
G303, G401

Fuel Controls- EVAP Controls





Master Electrical Component List

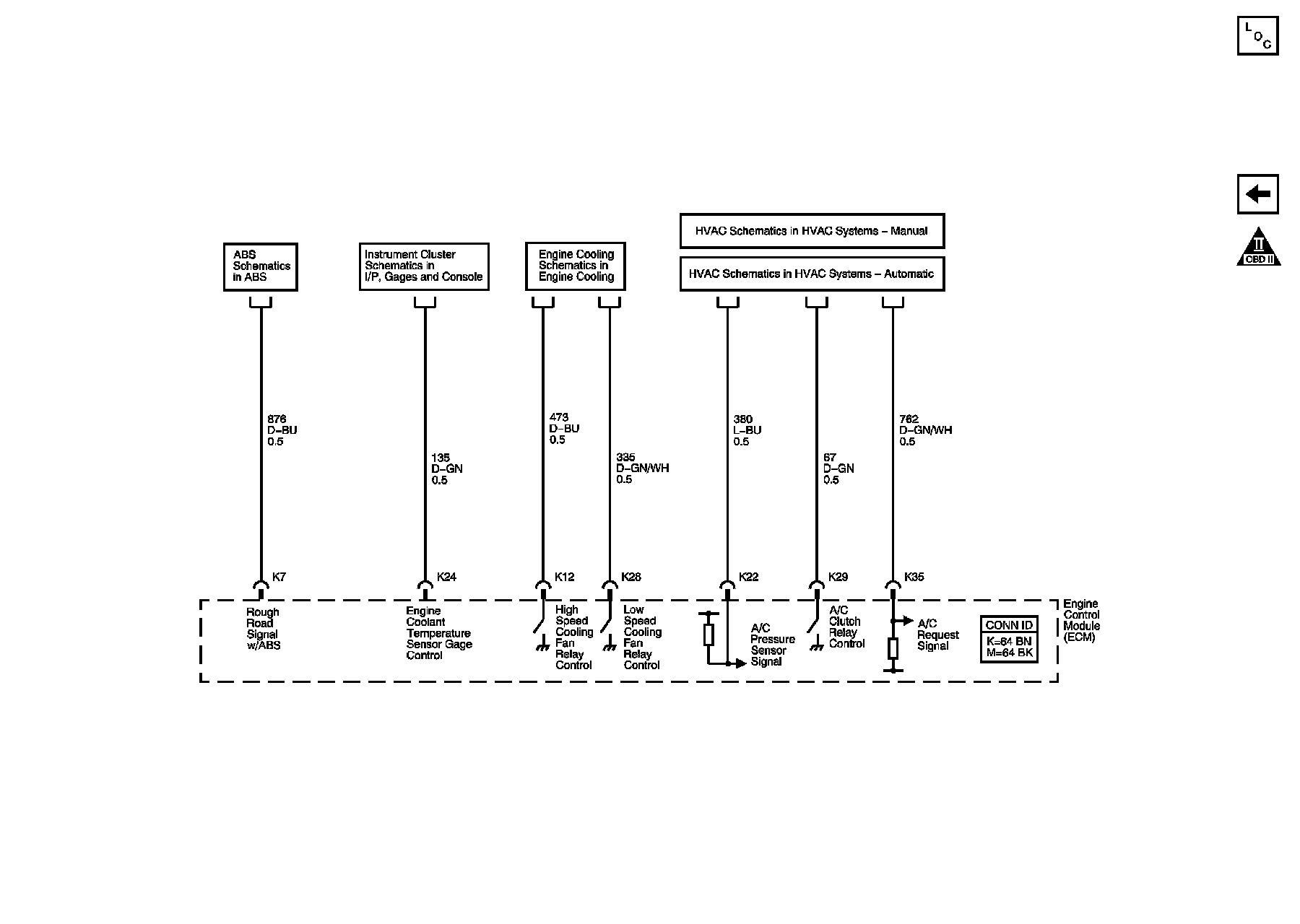

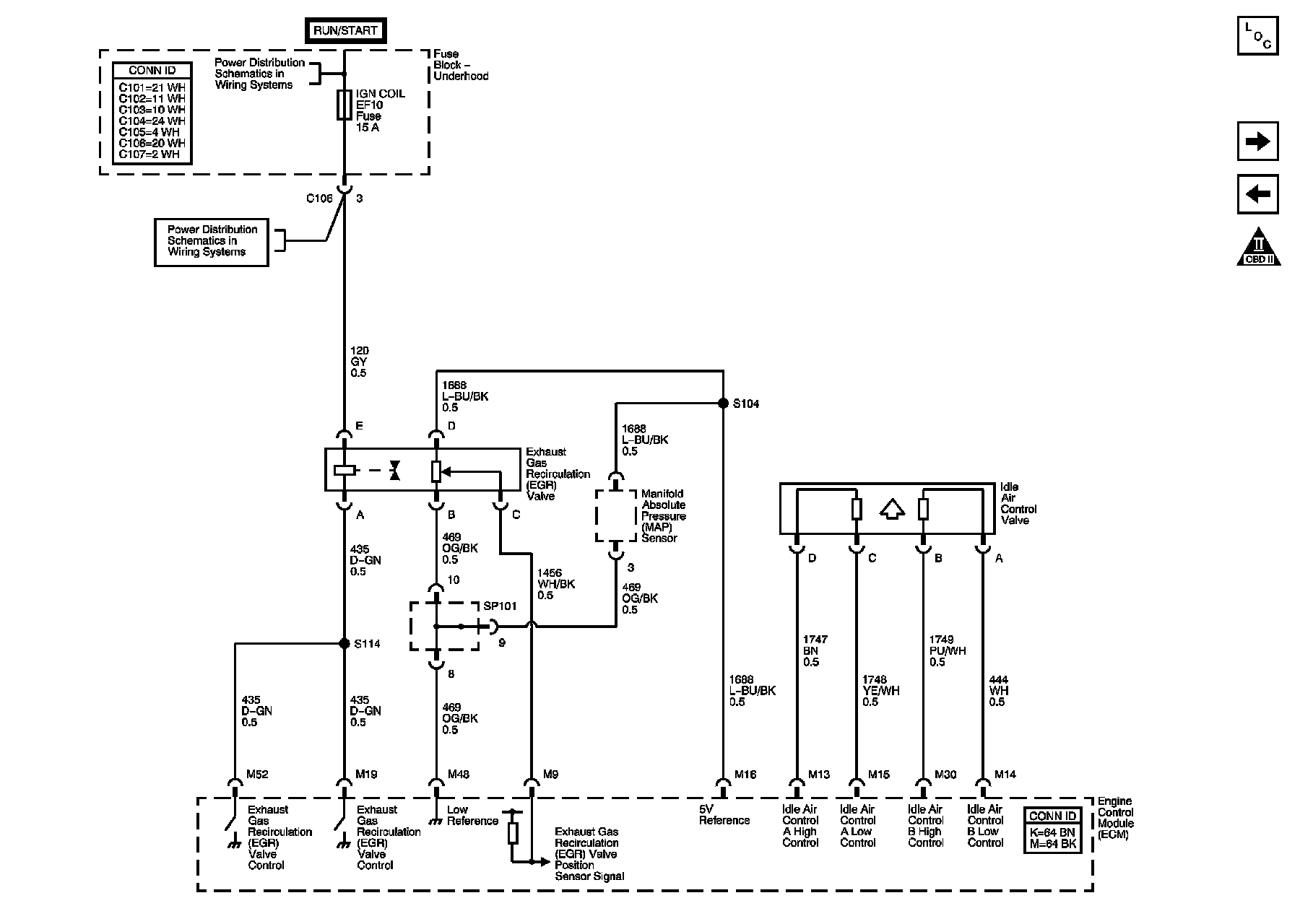

Device Controls
Fuel Pump and Fuel Injectors
OBD II Symbol Description Notice
Underhood Fuse Block MAIN Relay and ECM, ENG SNSR, and INJ Fuses 1.5L
Underhood Fuse Block MAIN Relay and ECM, ENG SNSR, and INJ Fuses MR-140
Turn and Hazard Lamps North America

Device Controls





Master Electrical Component List
Controlled/Monitored Subsystem References
Fuel Controls EVAP Controls
OBD II Symbol Description Notice
Underhood Fuse Block FUEL PUMP Relay and FUEL PUMP and IGN COIL Fuses
Underhood Fuse Block FUEL PUMP Relay and FUEL PUMP and IGN COIL Fuses

Controlled/Monitored Subsystem References





Master Electrical Component List
Device Controls
OBD II Symbol Description Notice
Warning Lamps, Serial Data, Rough Road
Power, Ground and Gauges 1.8L/2.0L
MR-140
Compressor Controls MR 140
Compressor Controls MR-140
