HVAC Systems - Manual

HVAC Schematics

Blower Controls

Master Electrical Component List
Underhood Fuse Block - Battery Feeds 1 of 3
Underhood Fuse Block HVAC FLWR, ABS and Horn Fuses
G201 (2 of 2)
G201 (2 of 2)
G203

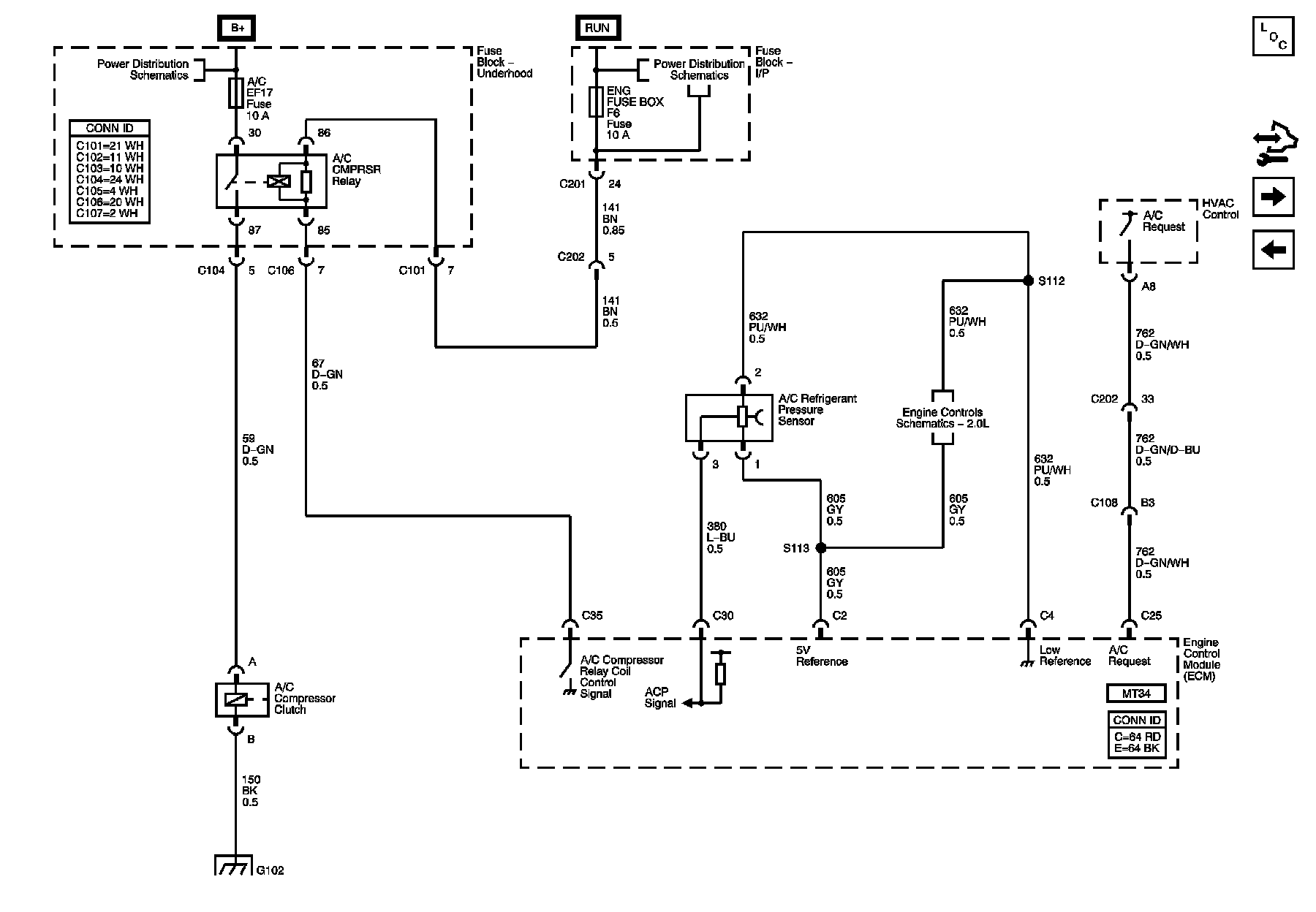

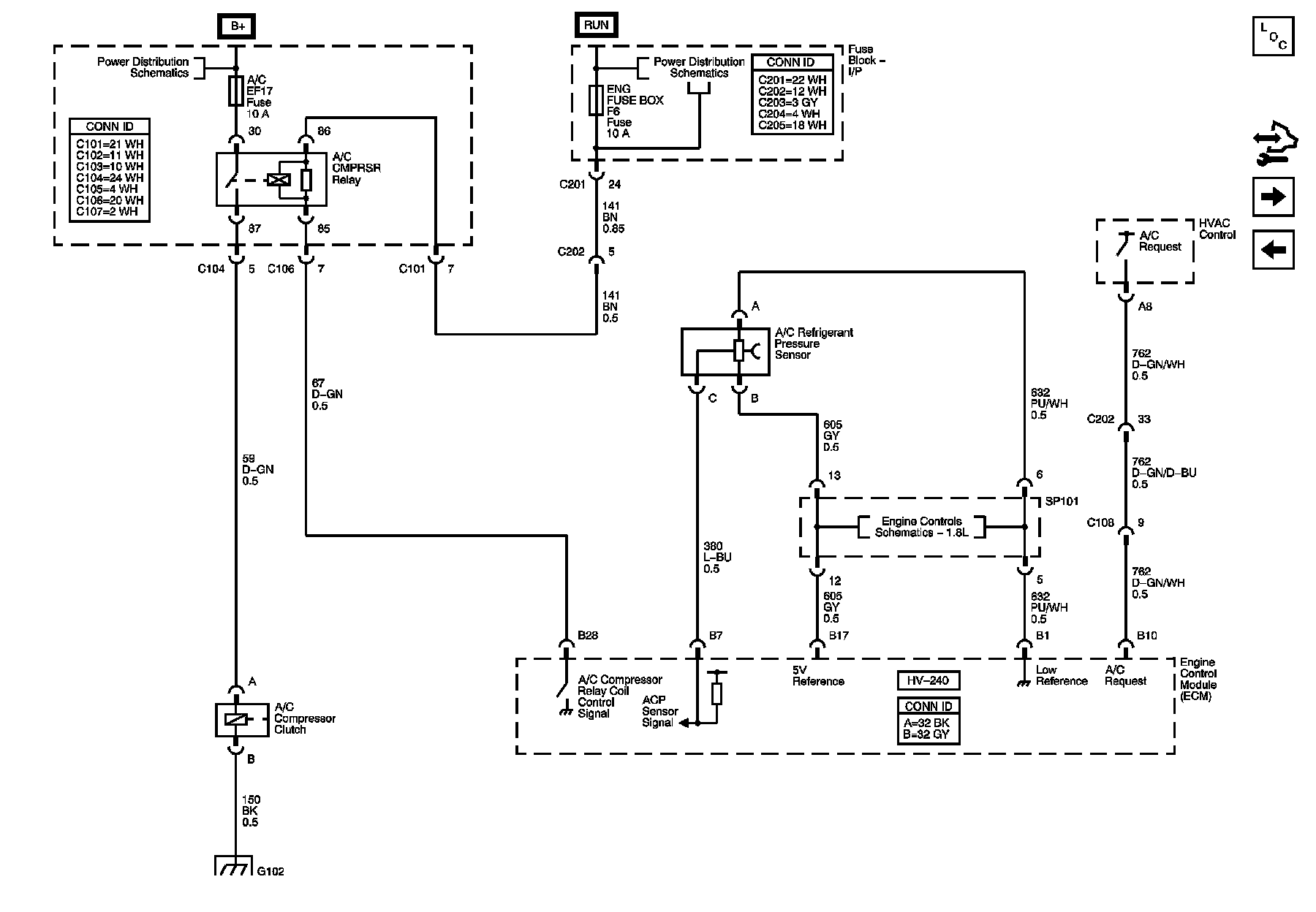

Compressor Controls- Sirius D4

Master Electrical Component List
Underhood Fuse Block A/C, DEFOG, and MIR HTD Fuses
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
Controlled/Monitored Subsystem References
Controlled/Monitored Subsystem References
G102

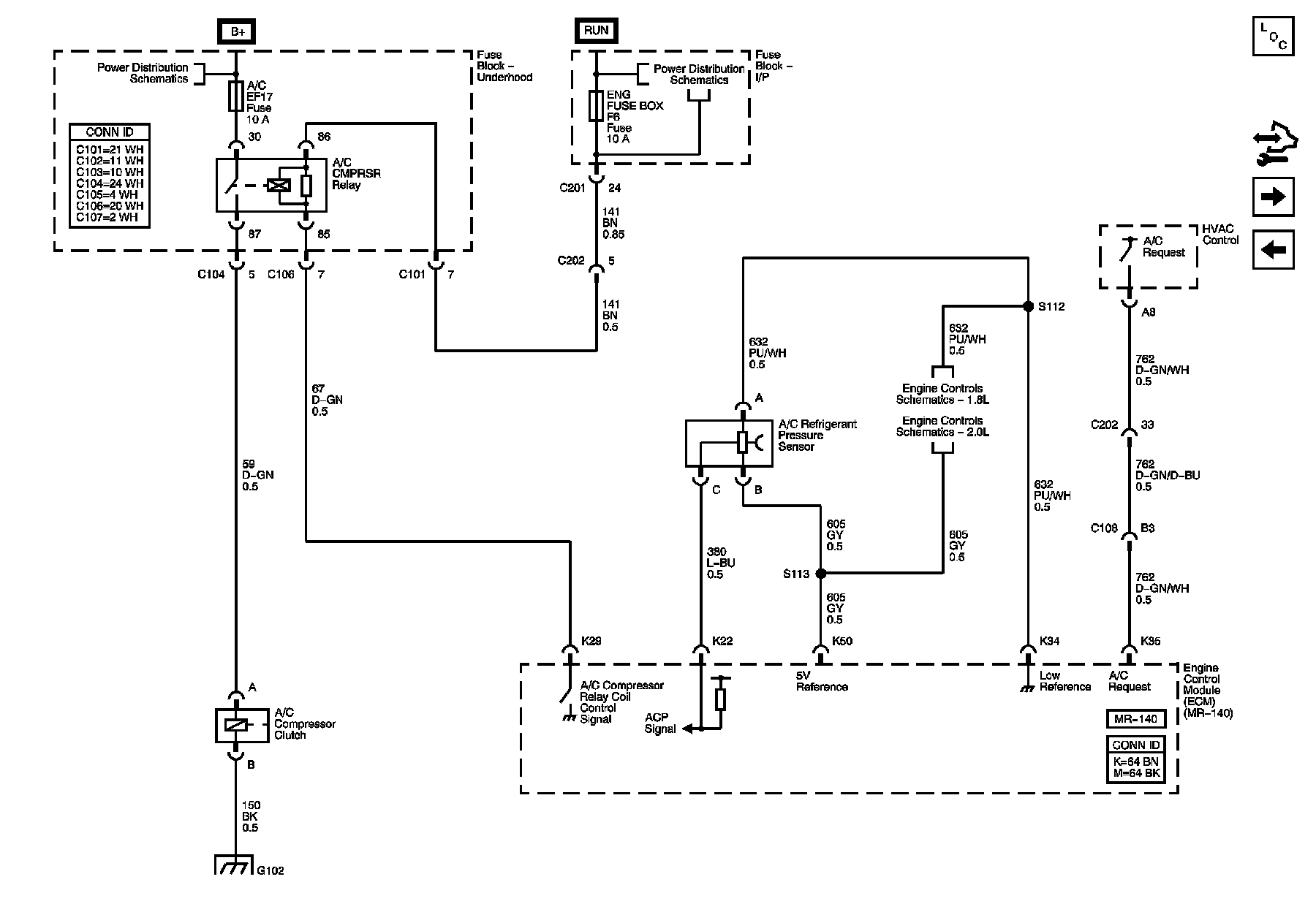

Compressor Controls- MR-140

Master Electrical Component List
Underhood Fuse Block A/C, DEFOG, and MIR HTD Fuses
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
Link target Object 1720612 does not exist in this publication.
G102

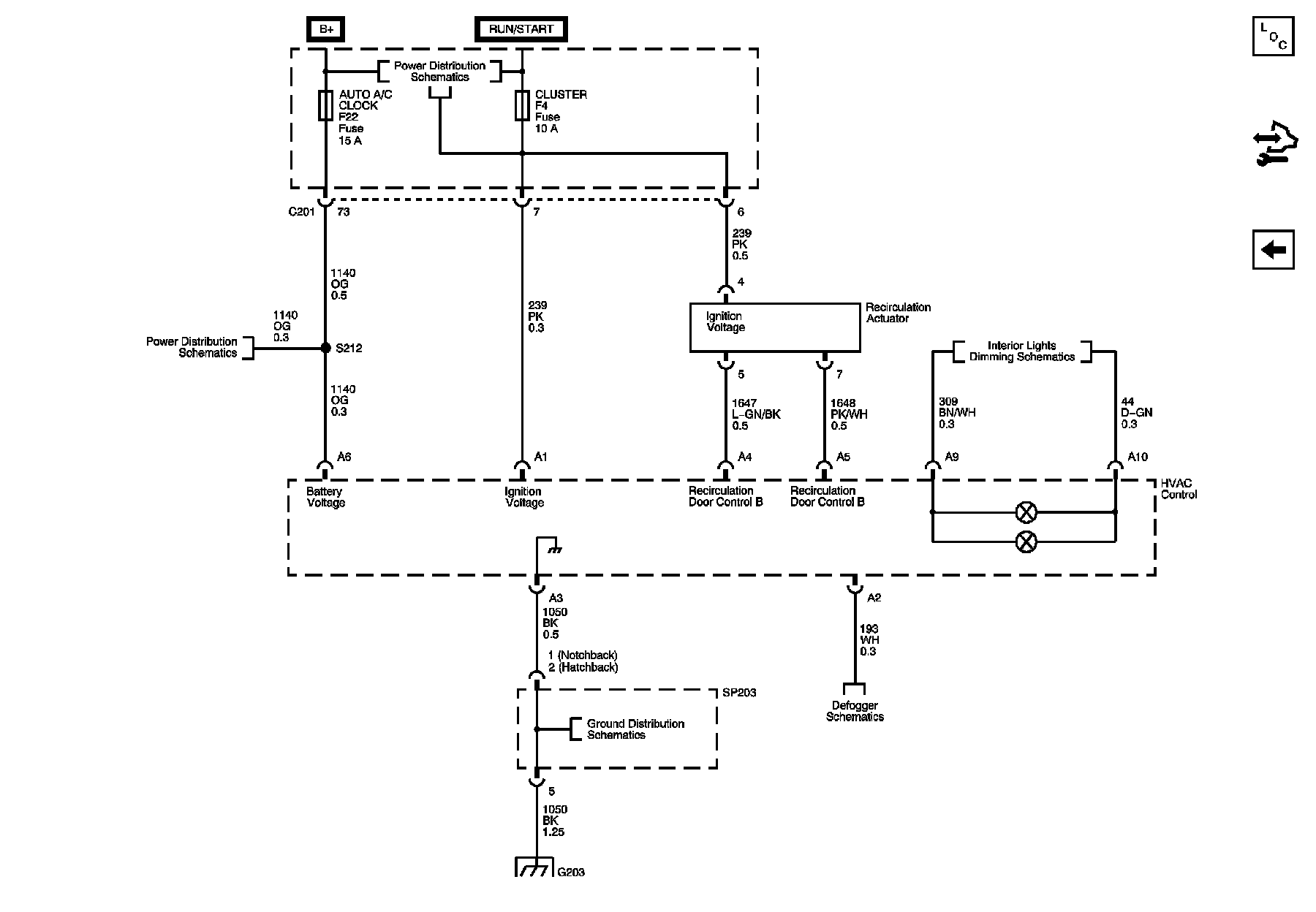

Temperature Controls/Air Delivery

Master Electrical Component List
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
Underhood Fuse Block BATT PWR, IGN 1 and IGN 2 Fuses, Ignition Switch, I/P Fuse Block - RADIO, IMMOBILIZER, DLC, AUTO A/C, HAZARD LAMPS, RKE, TCM, REAR
I/P Illumination w/Dimming
Stationary Windows
G203
G203
