Electrical Diagrams

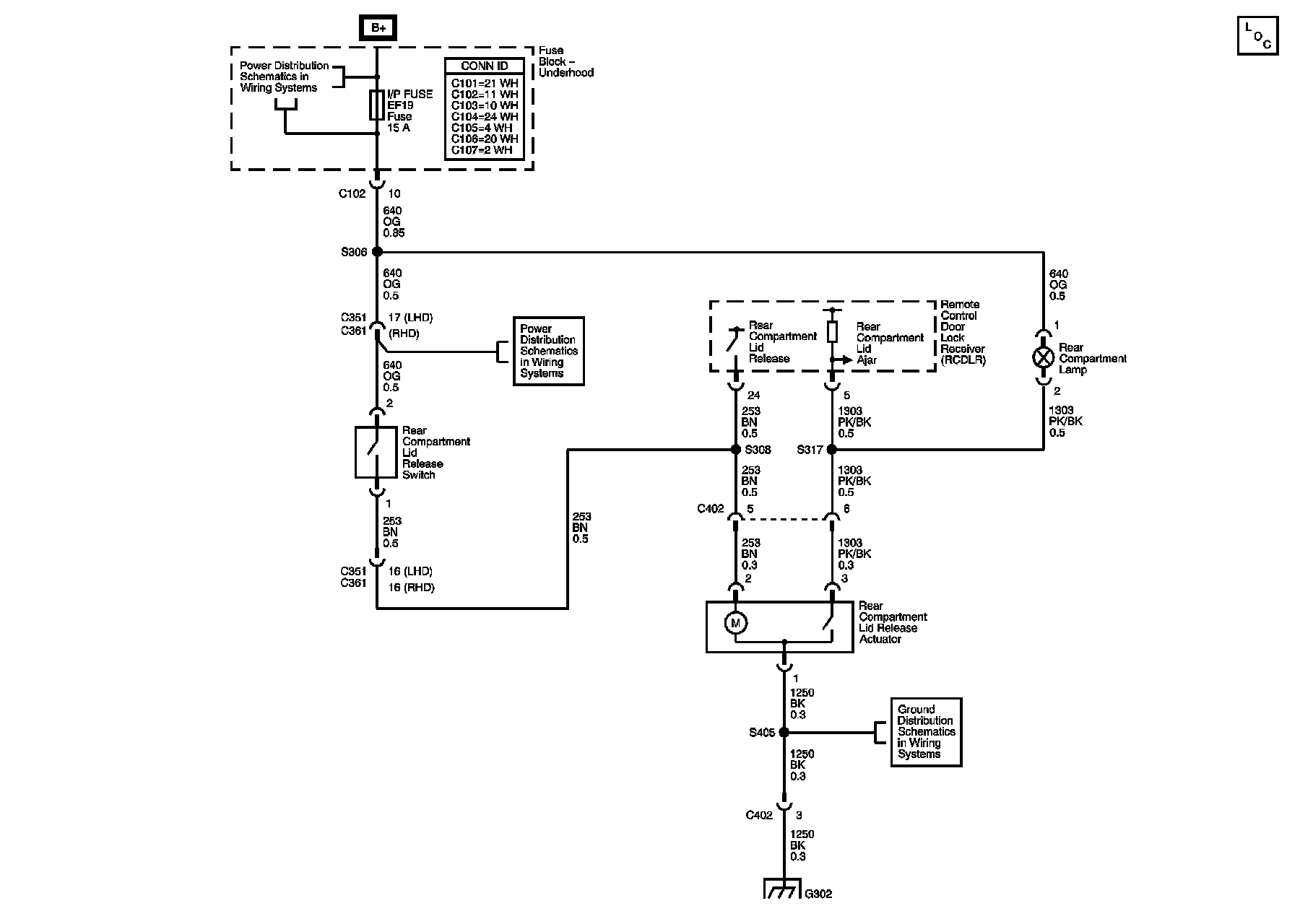

Body Rear End Schematics





Master Electrical Component List
Underhood Fuse Block IP FUSE, DR/LOCK and STOP LAMP Fuses
Underhood Fuse Block IP FUSE, DR/LOCK and STOP LAMP Fuses
G303, G401
G303, G401
