Oxygen Sensor: Locations

Left Front of Engine:

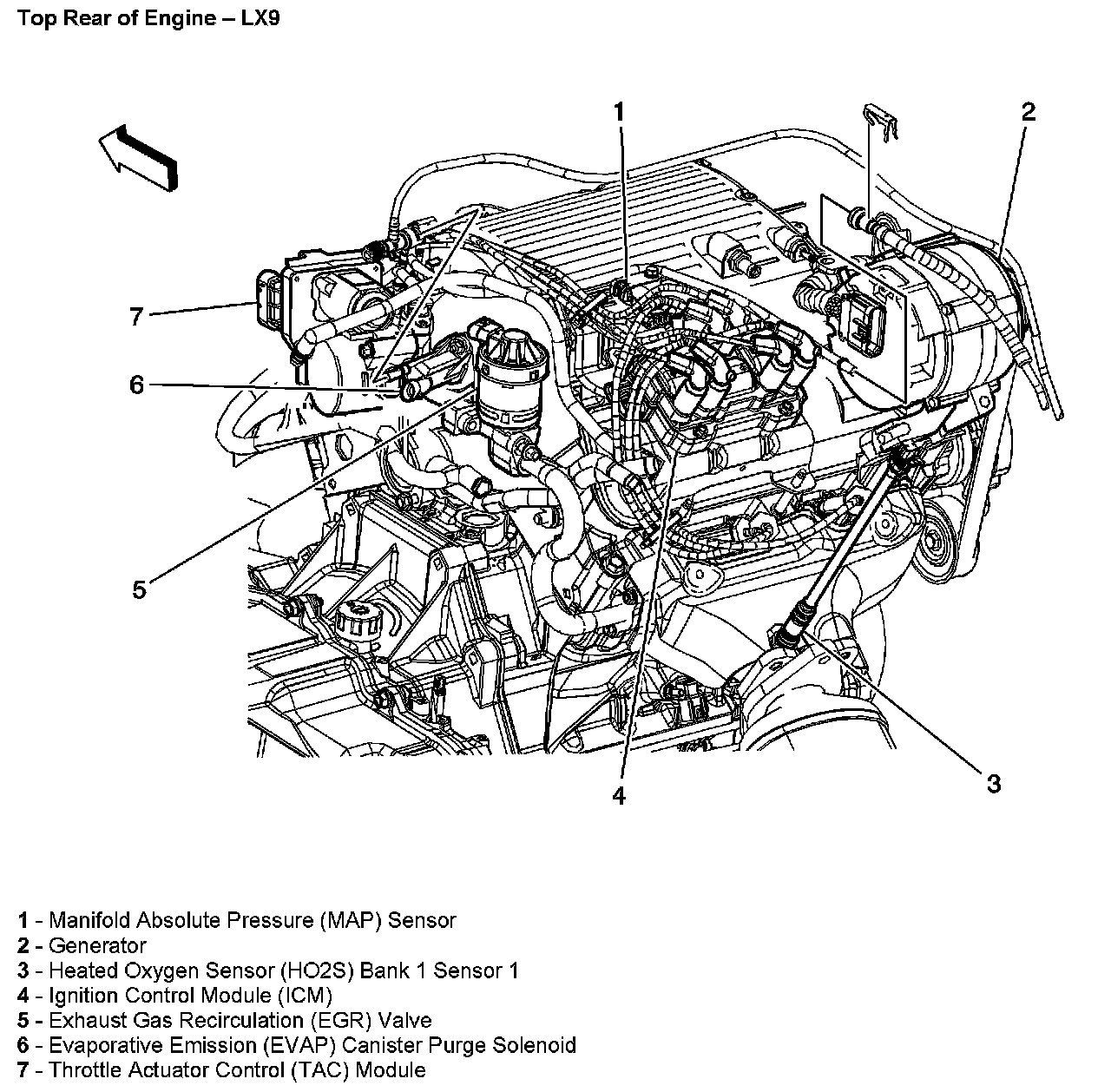

Top Rear of Engine:

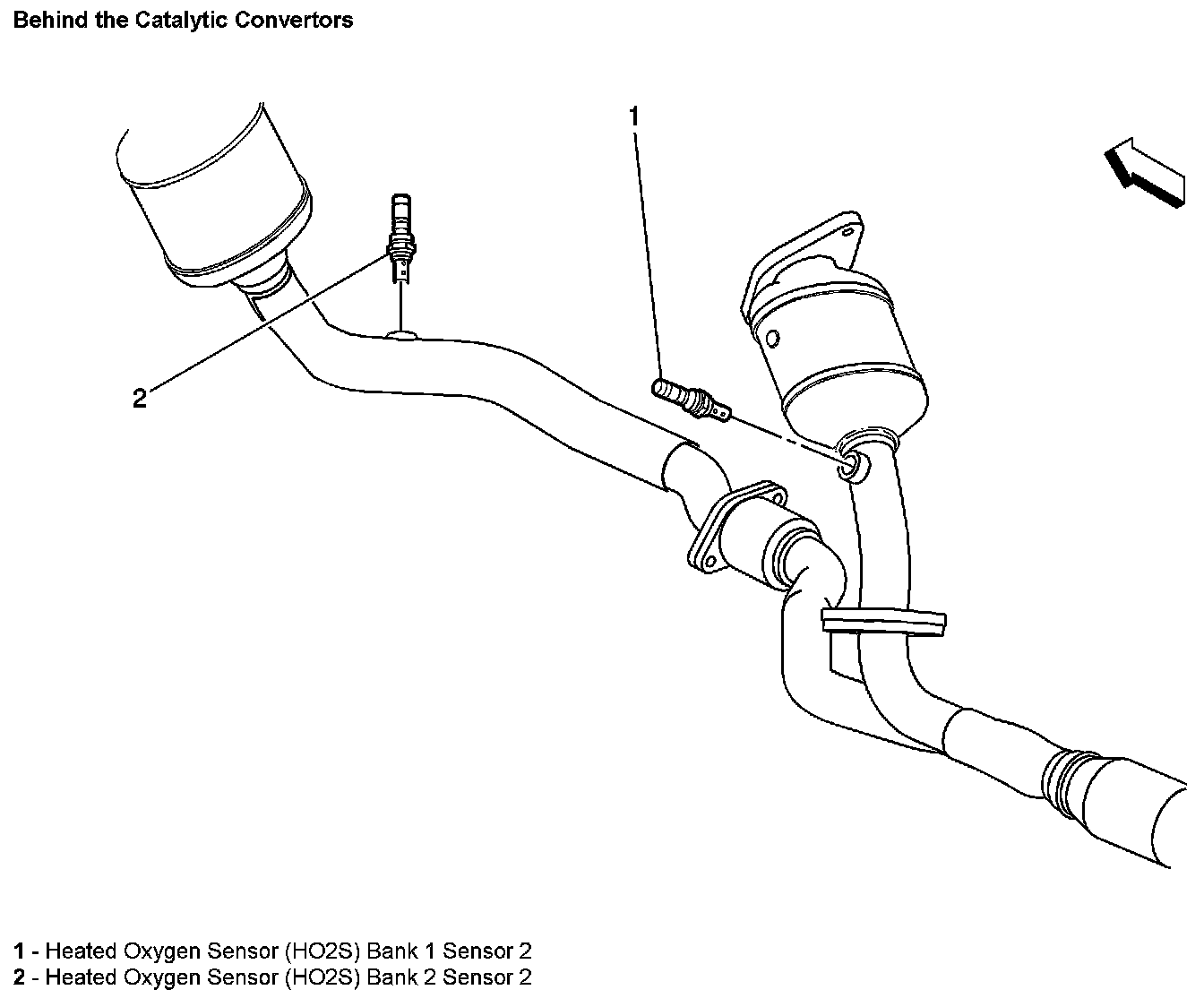

Behind the Catalytic Convertors:
