Steering Control Module



Power Steering System Connector End Views





Power Steering Control Module - C1

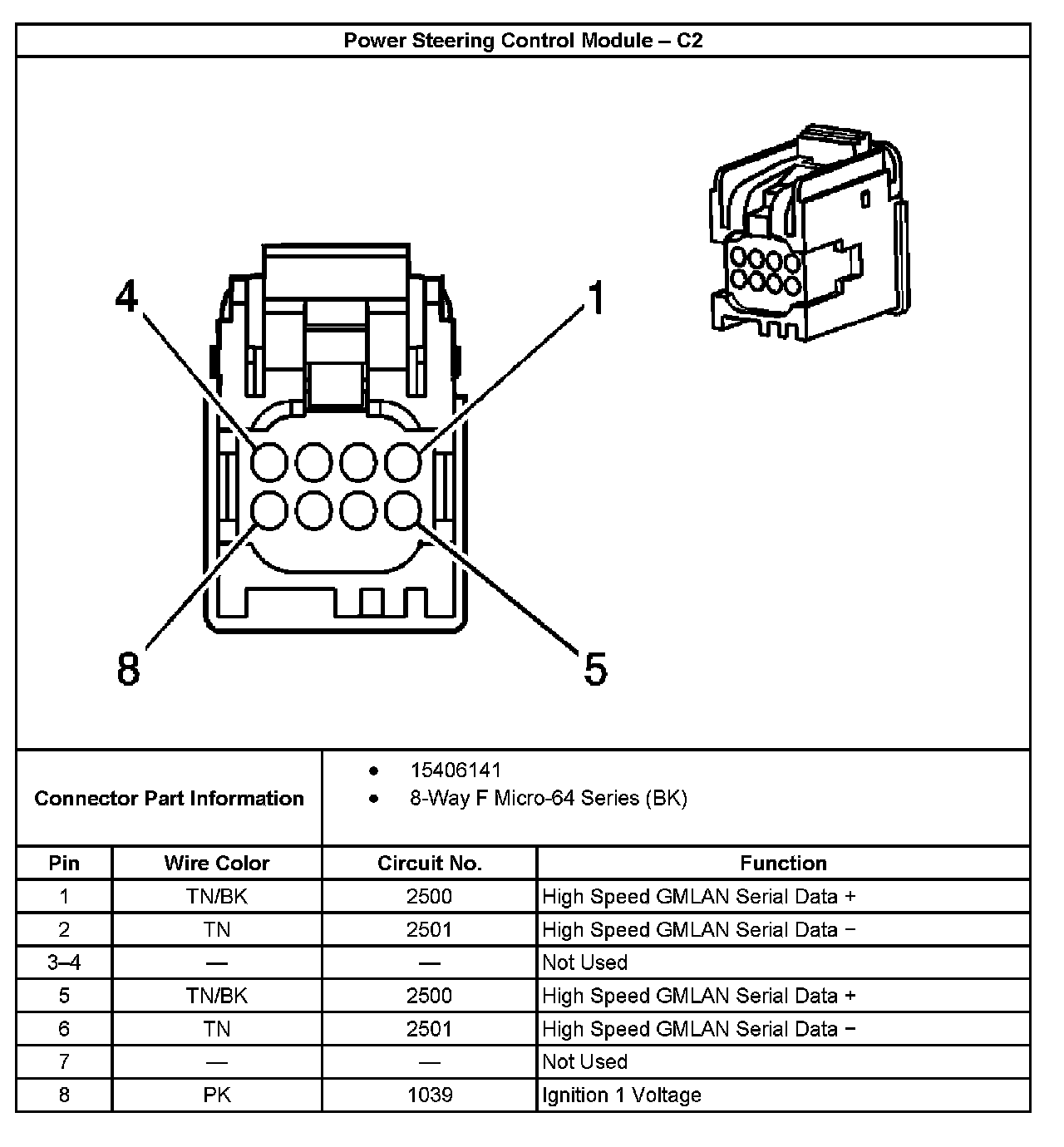

Power Steering Control Module - C2





Power Steering Control Module - C3
