Fuse Block: Application and ID

FUSE BLOCK - UNDERHOOD

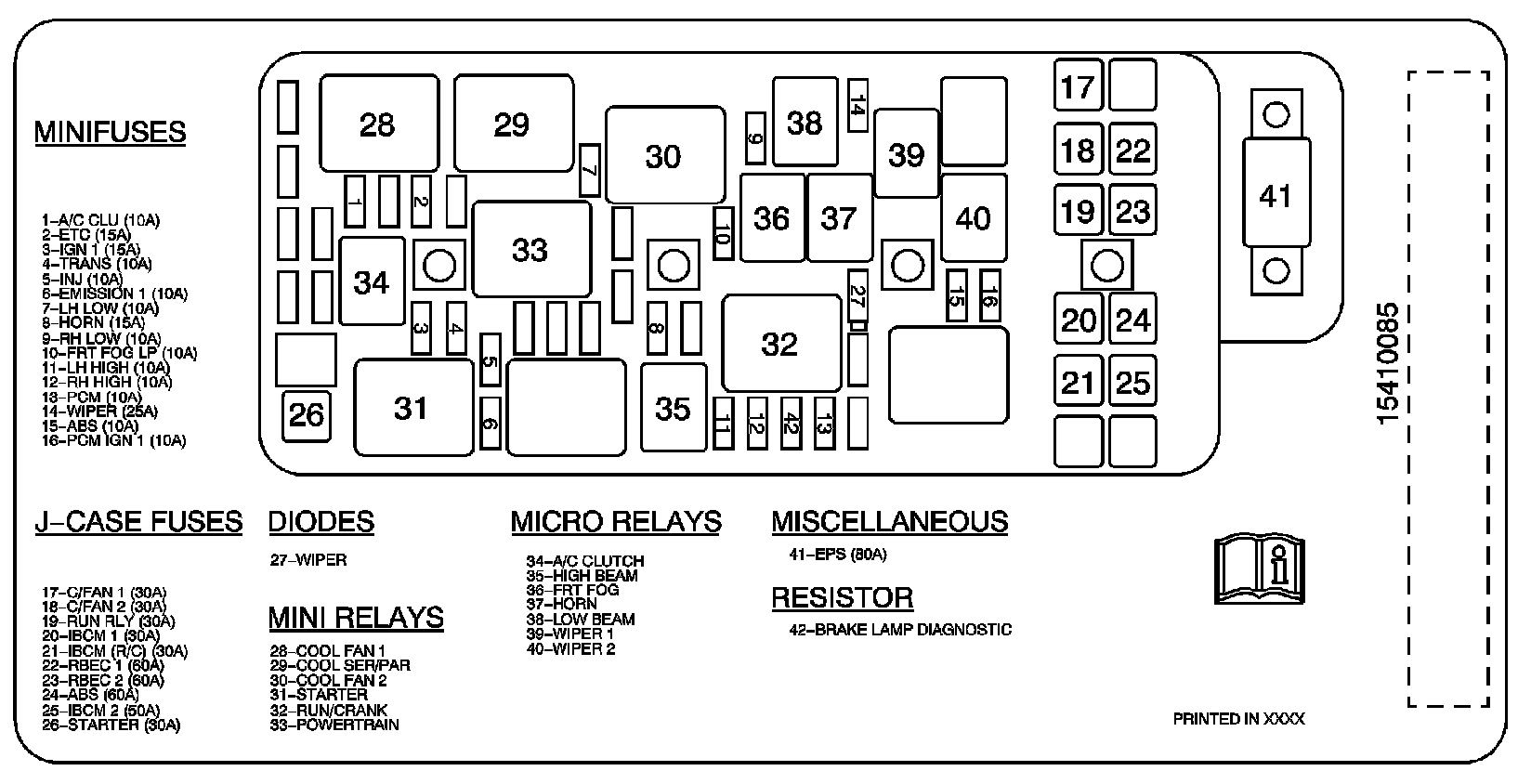

Fuse Block - Underhood Label

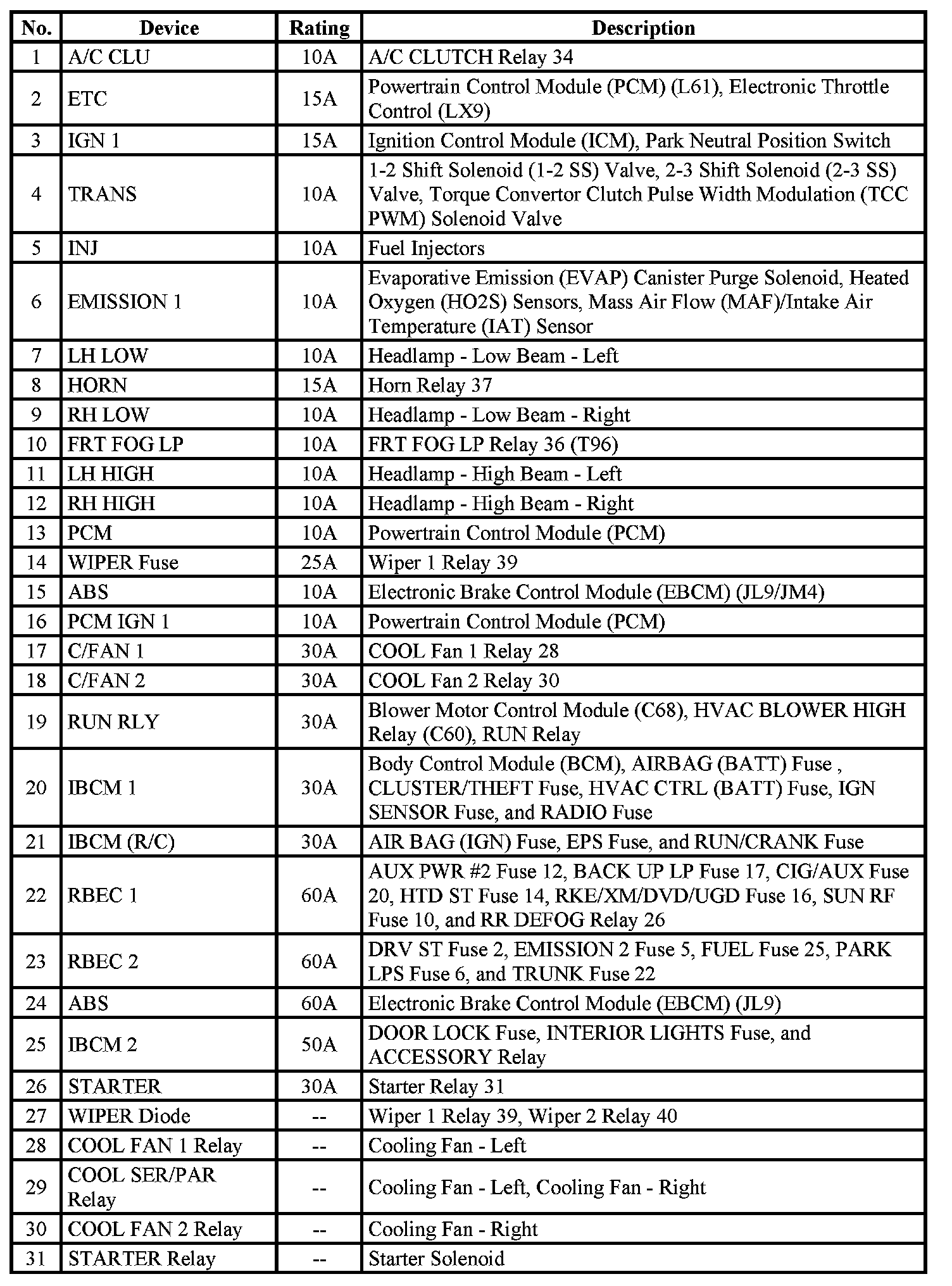

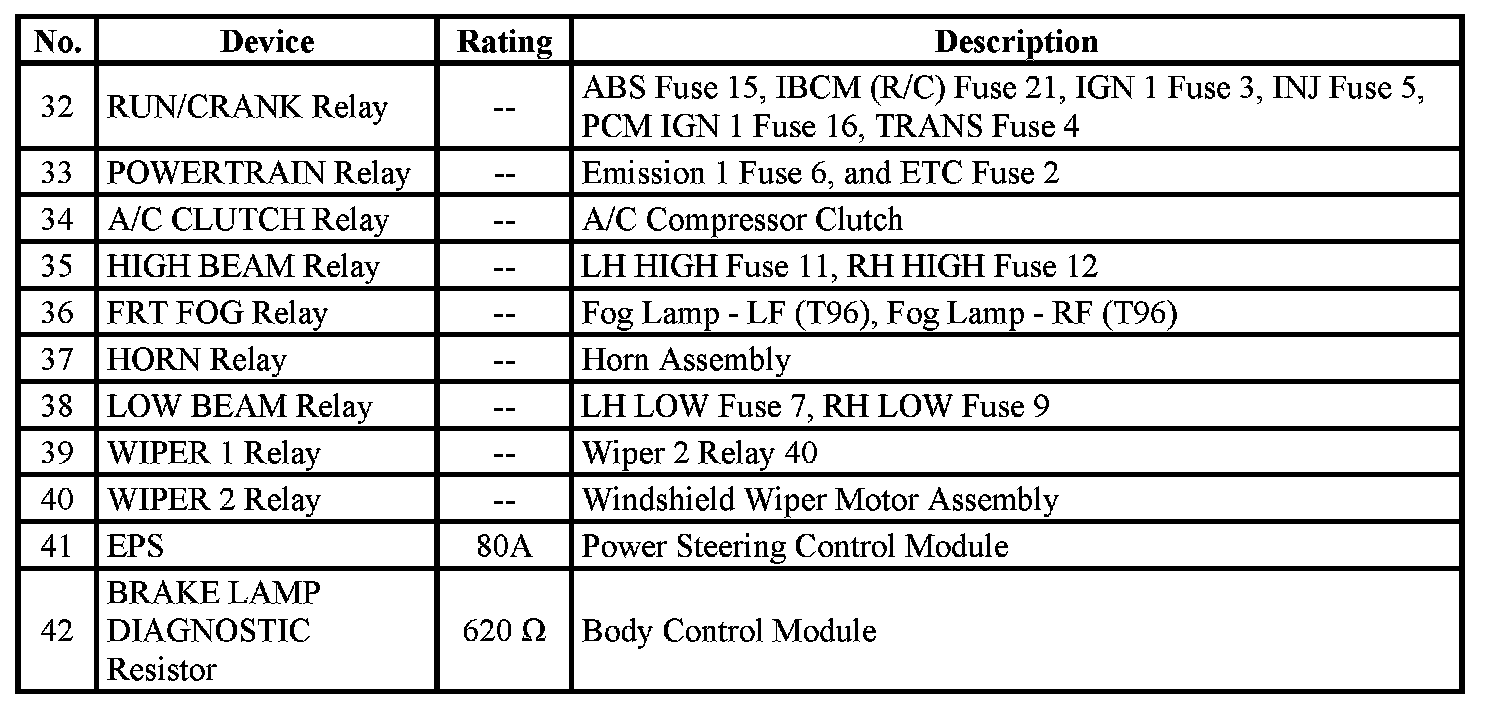

Fuse Block - Underhood Usage

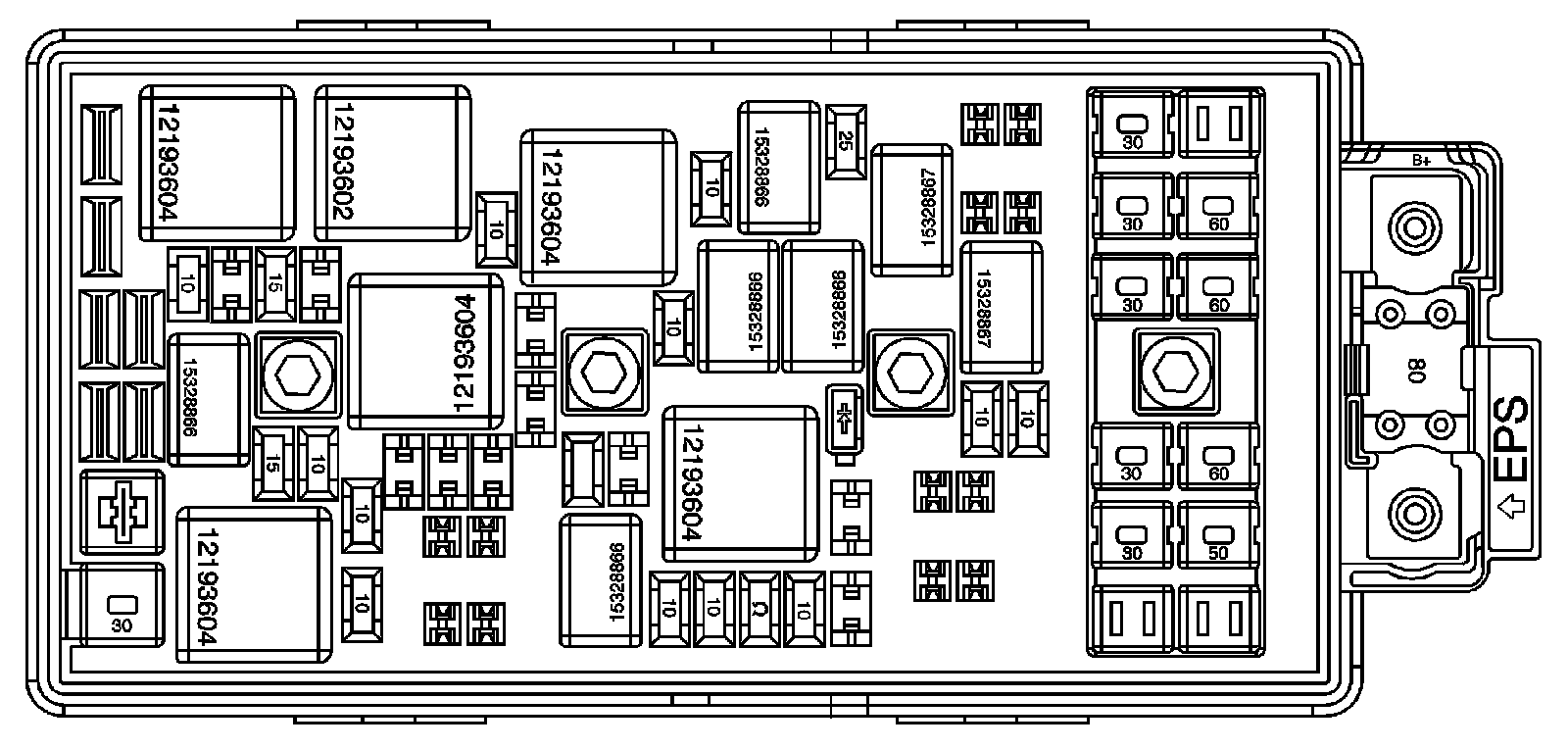

Fuse Block - Underhood Top View

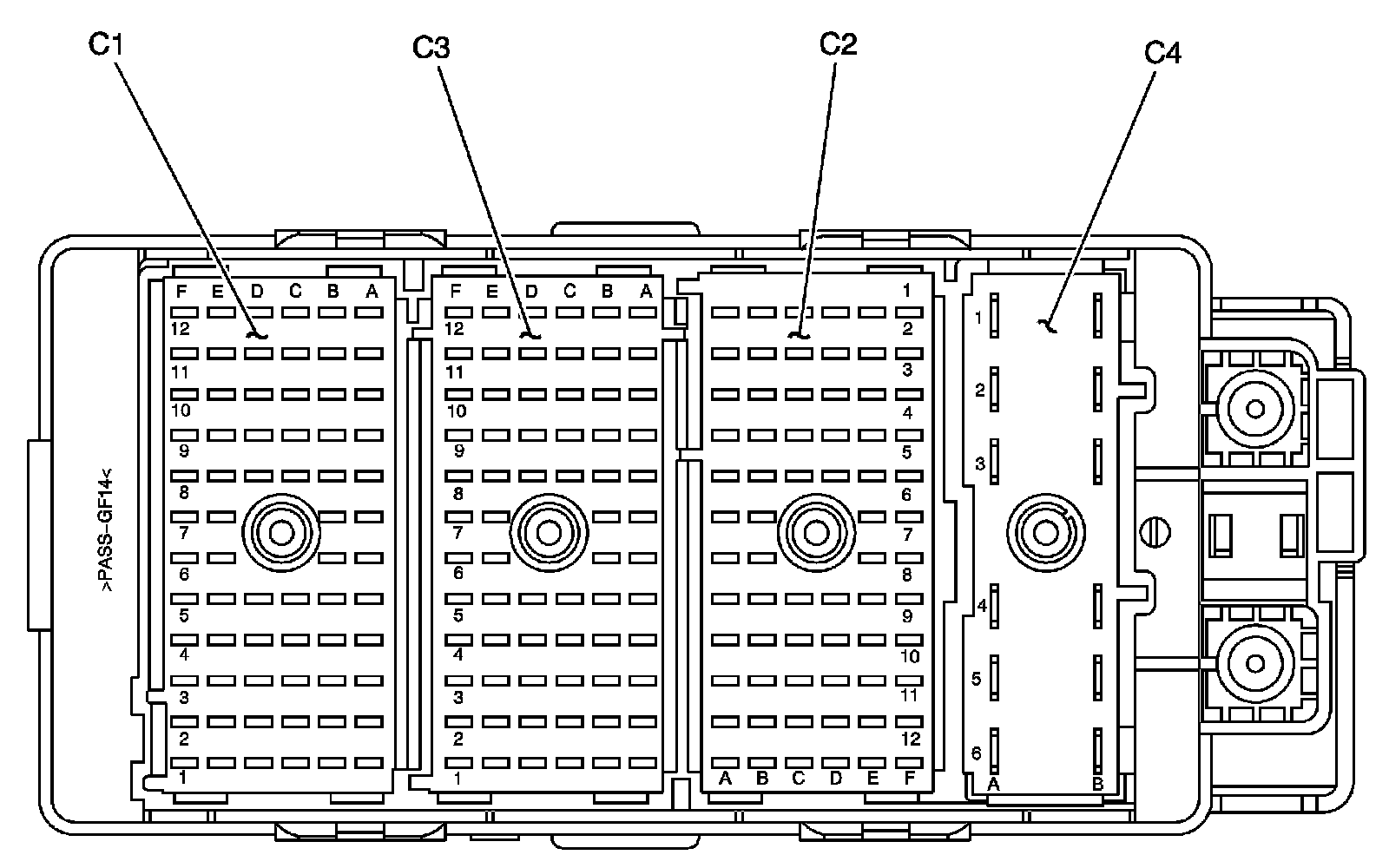

Fuse Block - Underhood Bottom View
