Instrument Panel Relay Block
Instrument Panel Relay Block

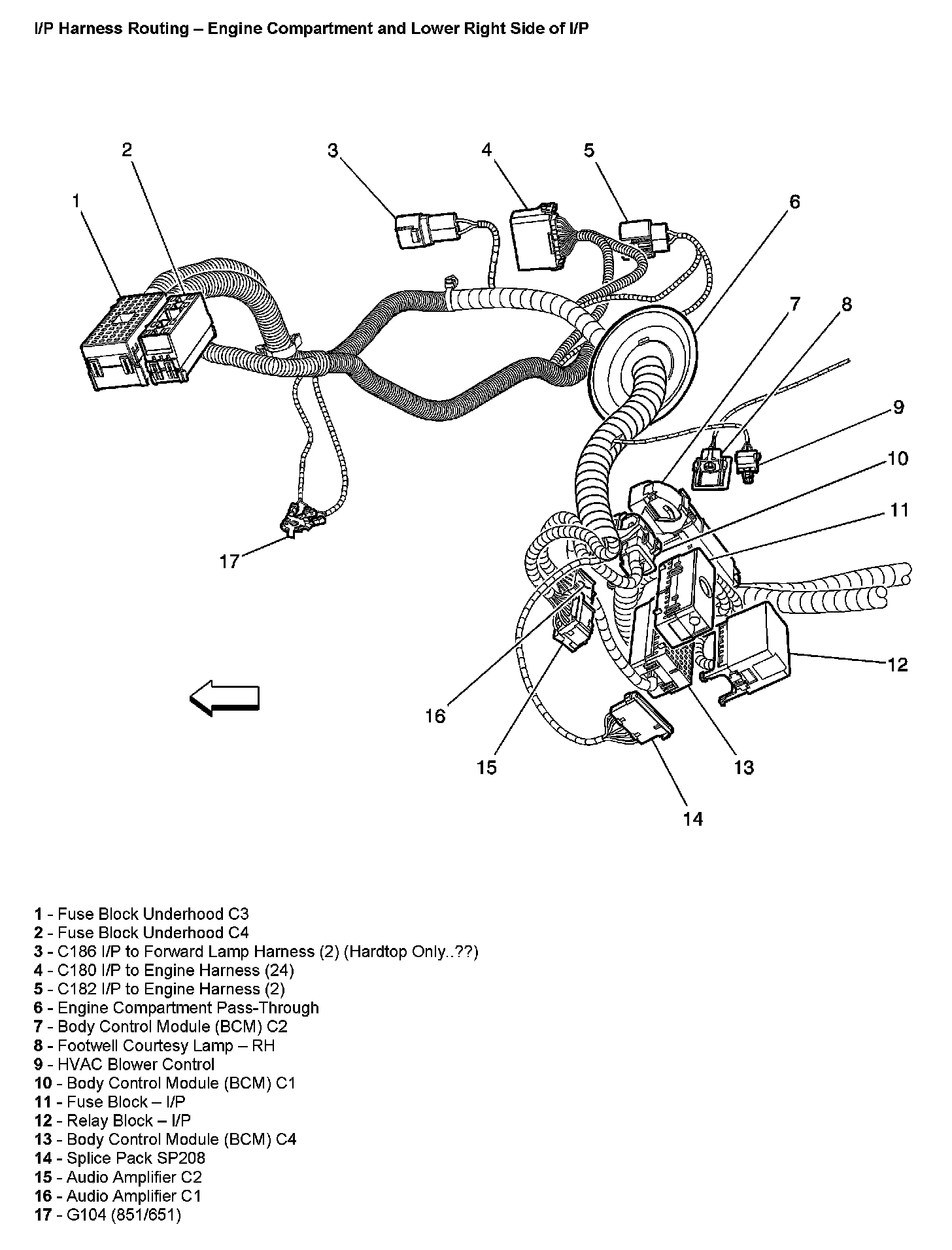

P Harness Routing - Engine Compartment And Lower Right Side Of I/P:
Right Side Of I/P:
