Home >> Chevrolet >> 2005 >> Cobalt L4-2.2L VIN F >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Tightening Torques and Sequences

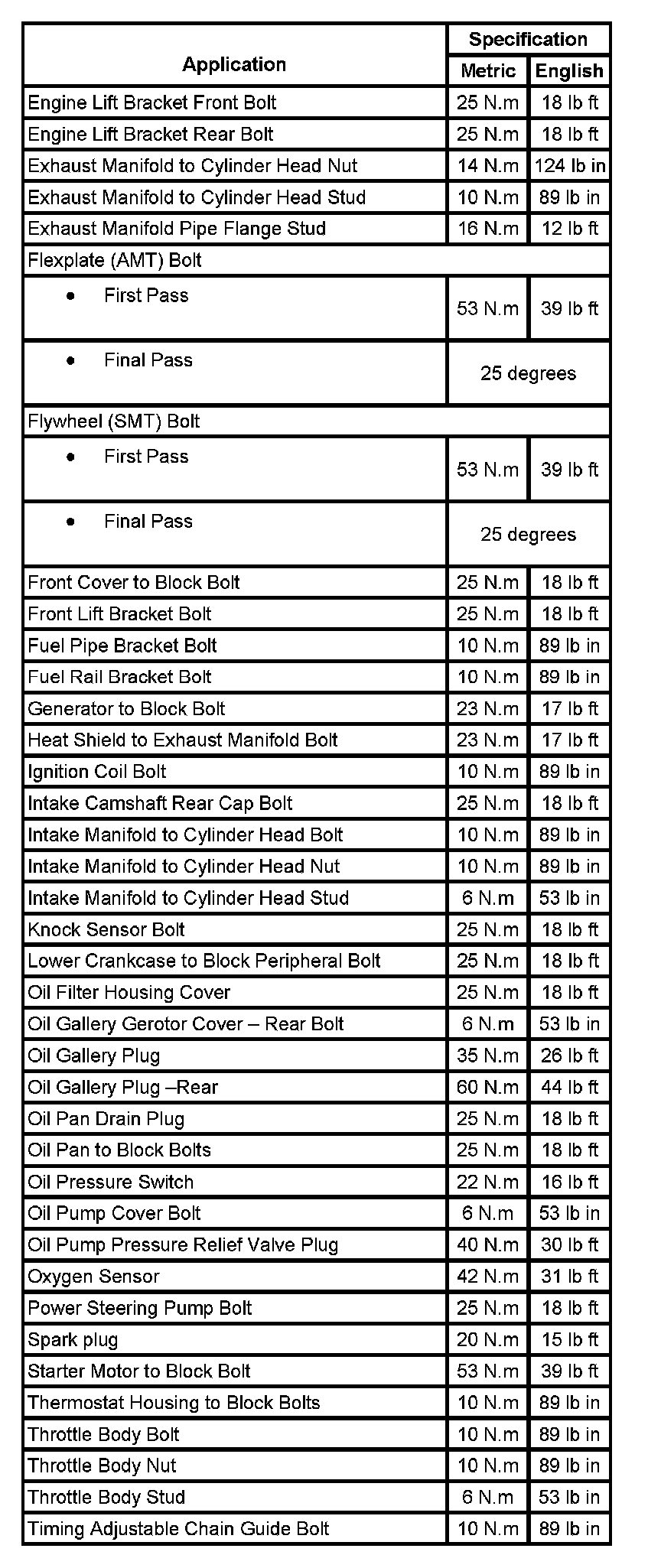

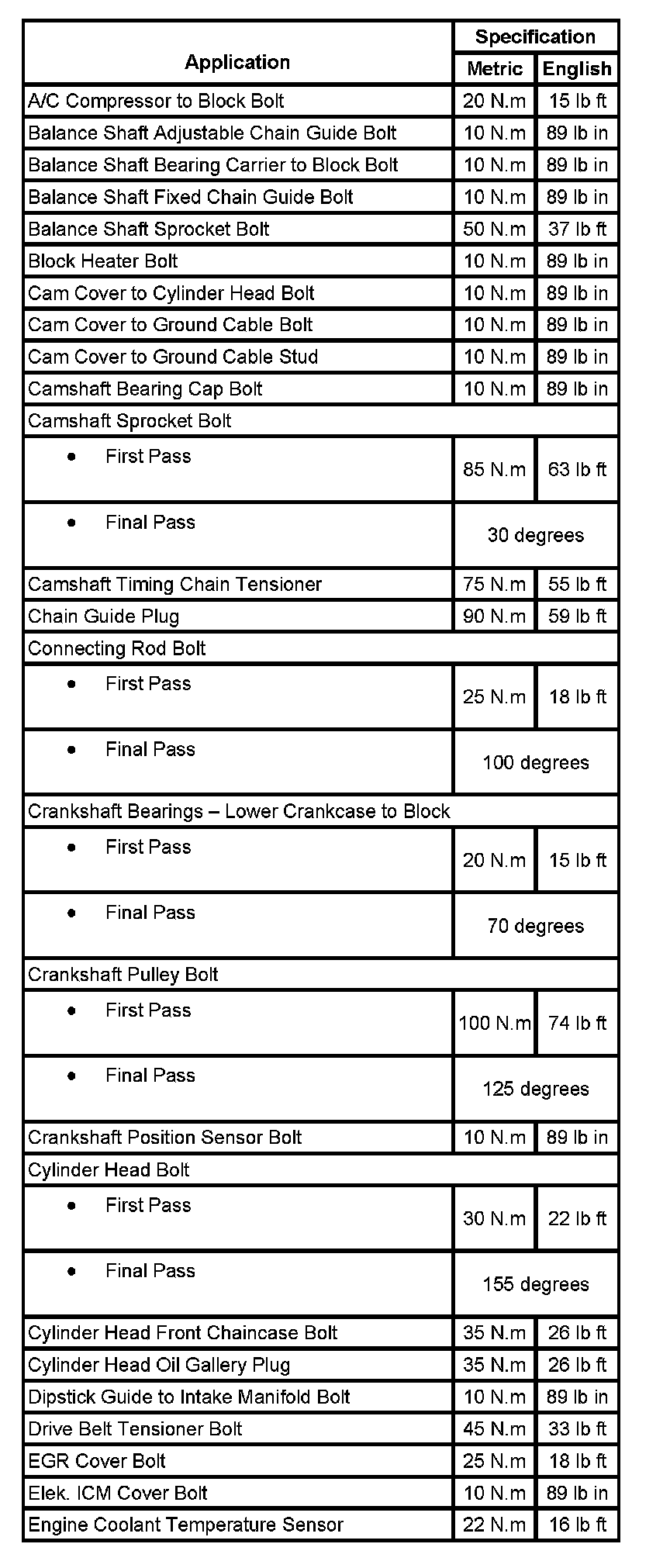

Tightening Torques and Sequences

Tightening Torques and Sequences:



Tightening Torques and Sequences:



Tightening Torques and Sequences:
