Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Inoperative - One or More Modes

Wipers Inoperative - One or More Modes

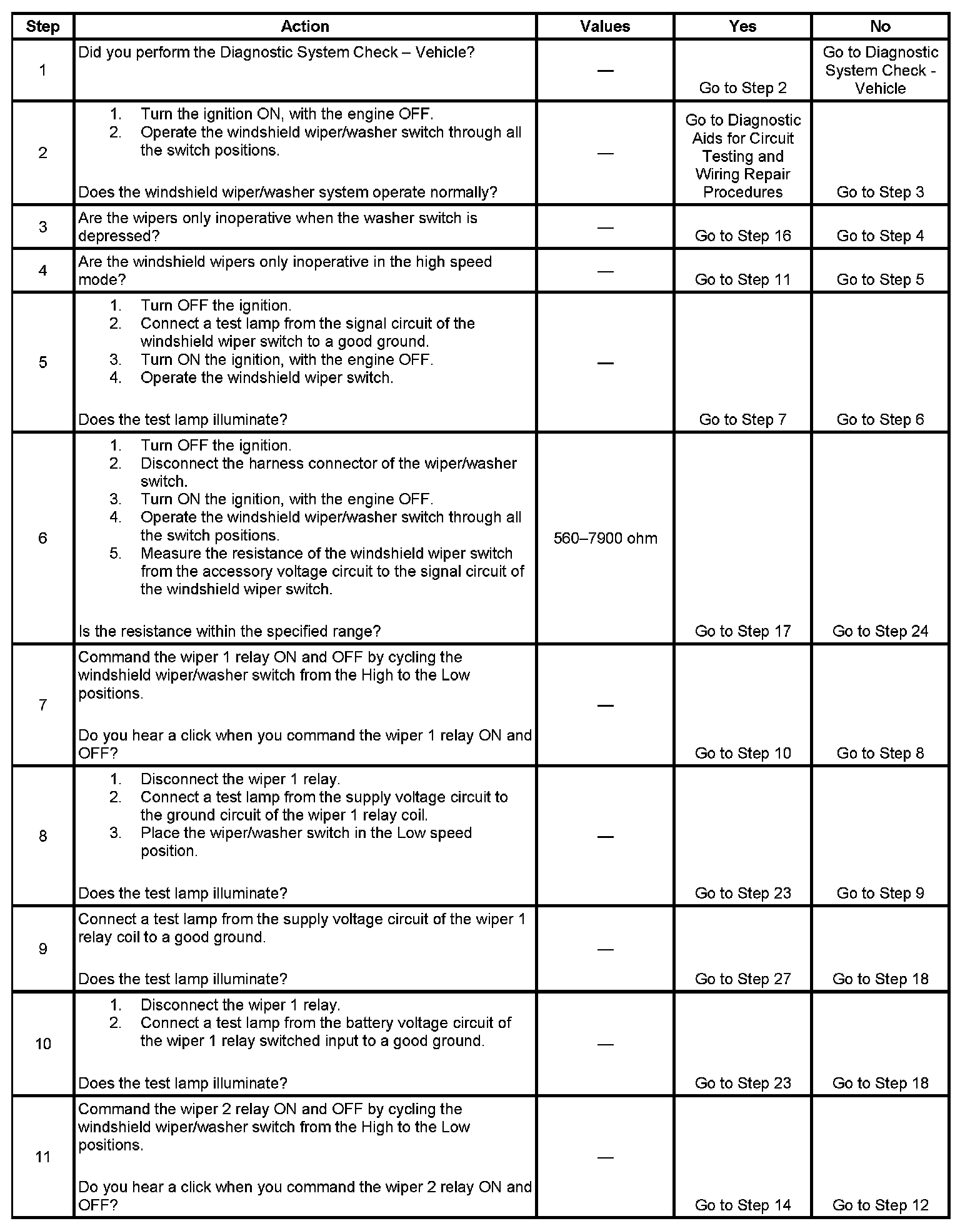

Steps 1 - 11:

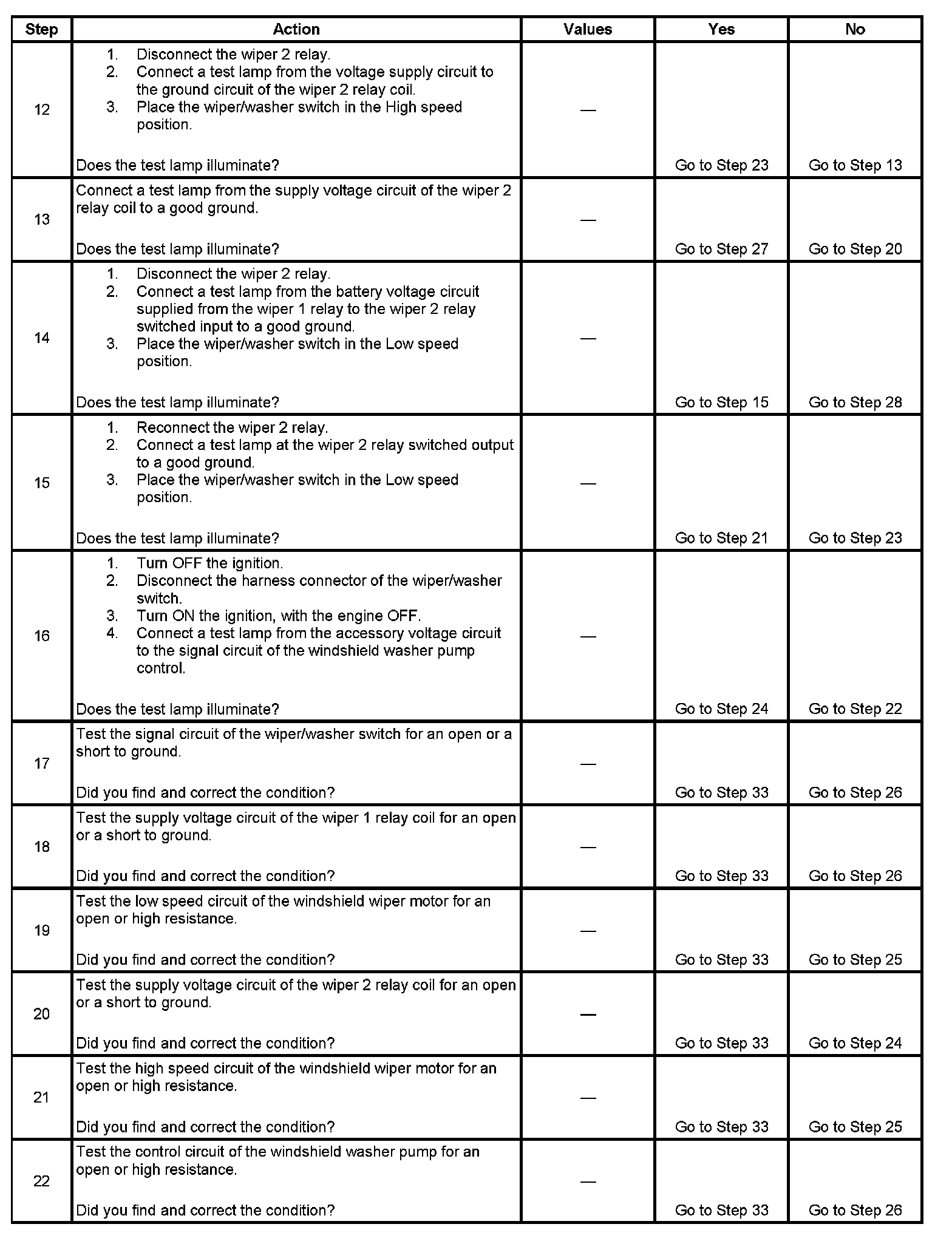

Steps 12 - 22:

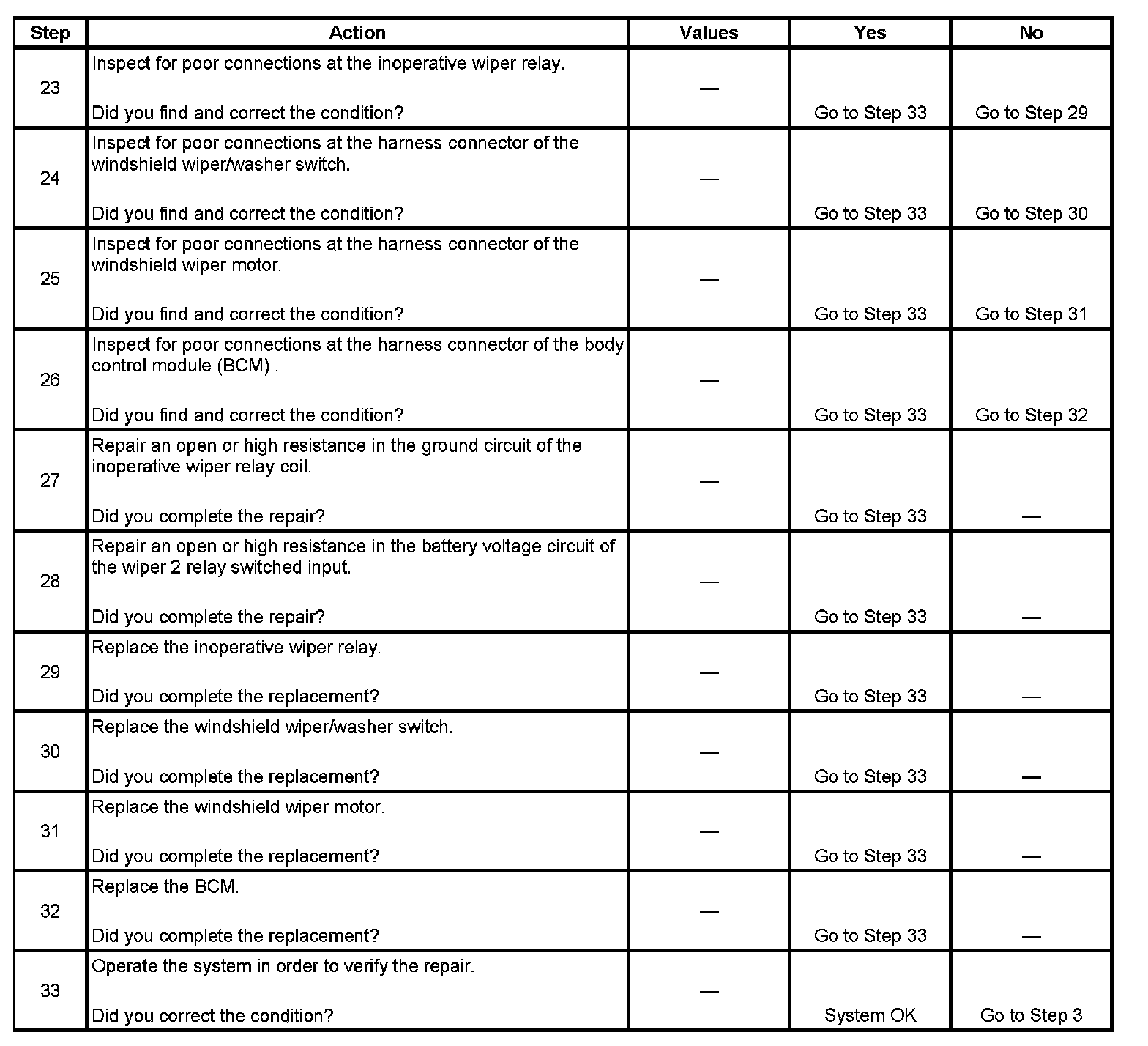

Steps 23 - 33:
