Window Motor (Coupe)

Window Motor - Driver (Coupe) (With RPO Code A31):

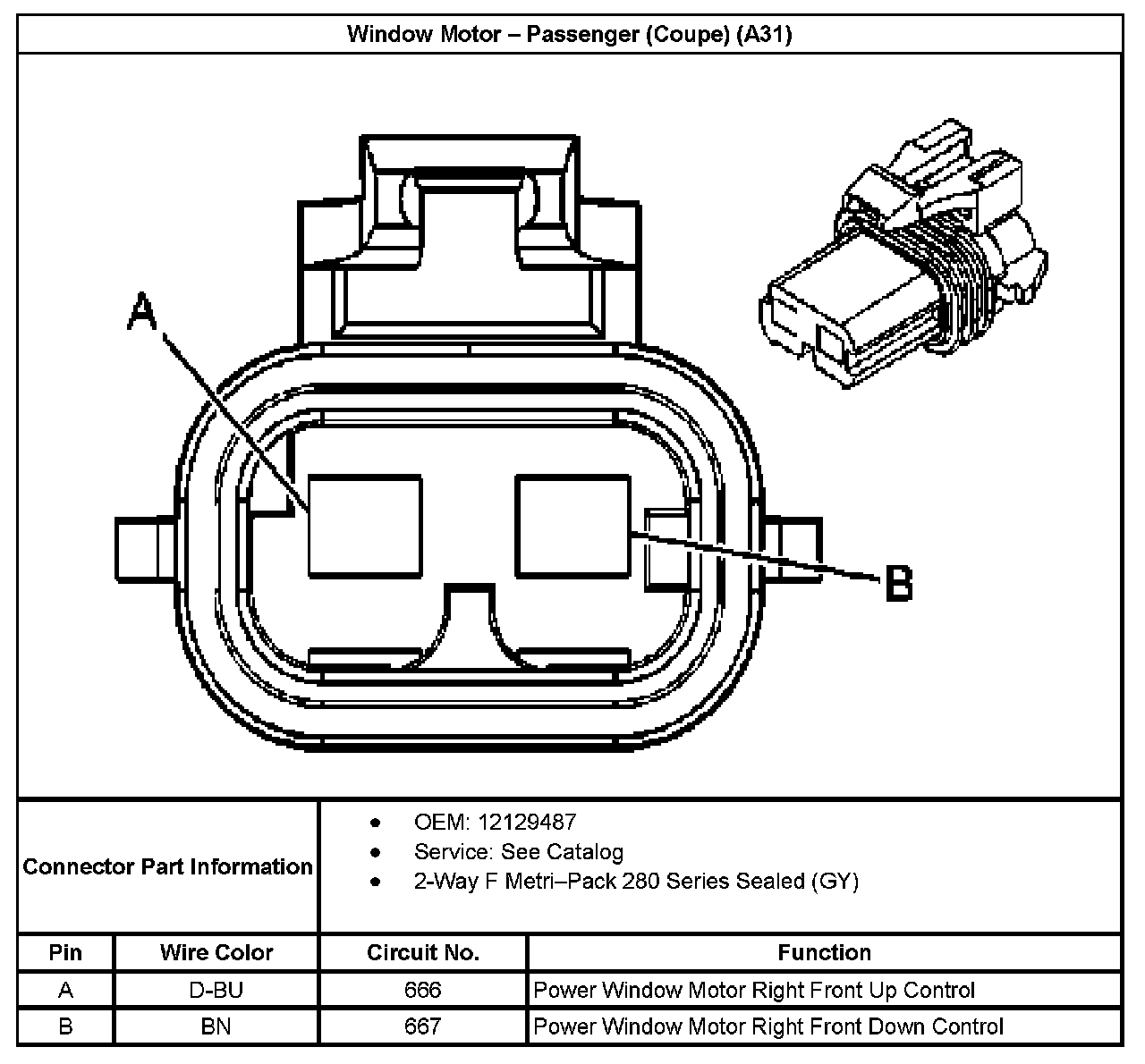

Window Motor - Passenger (Coupe) (With RPO Code A31):
