8. Transaxle Case Disassemble

Transaxle Case Disassemble

^ Tools Required
- 87-90-800 Drift, Differential Seal
- 87-91-311 Bearing Driver Shaft Sleeve
- 87-92-236 Support





1. Remove the input shaft bearing retainer screws and the retainer.

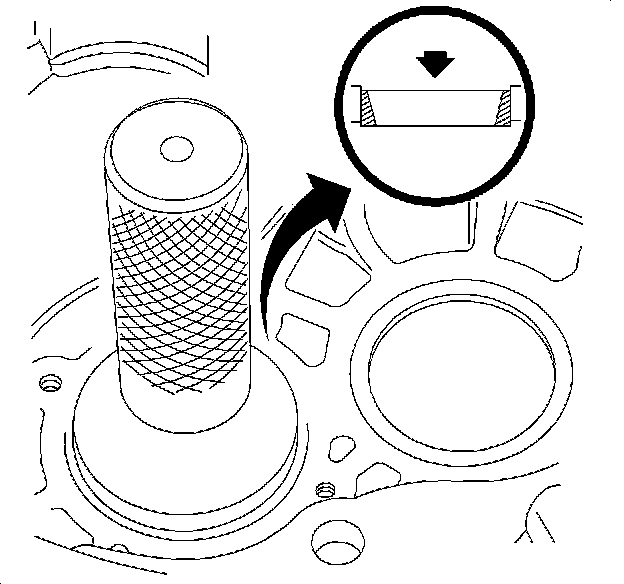

2. Press out the input shaft bearing race using the 87-90-800. Use the 87-92-236 as a base for the pressing operation.





3. Press out the output shaft bearing race using the 87-91-311.

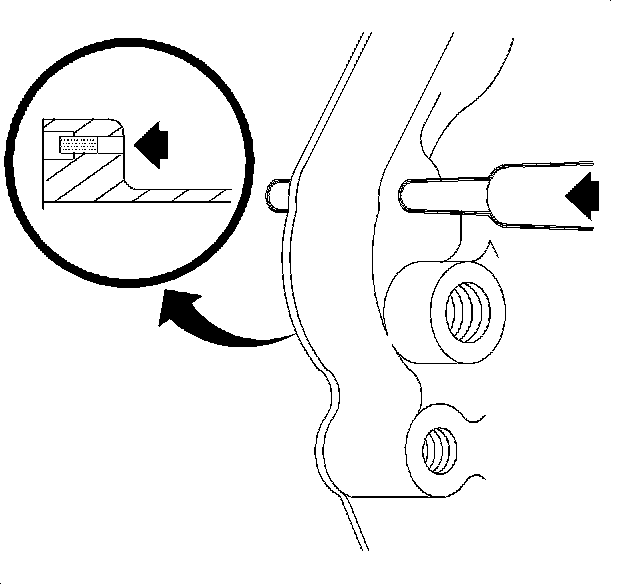

4. Remove the transaxle vent filter from the case using a punch. Drive the vent from the outside to the inside.
