Shifter A/T: Service and Repair

Shift Control Replacement

Removal Procedure
1. Remove the console.

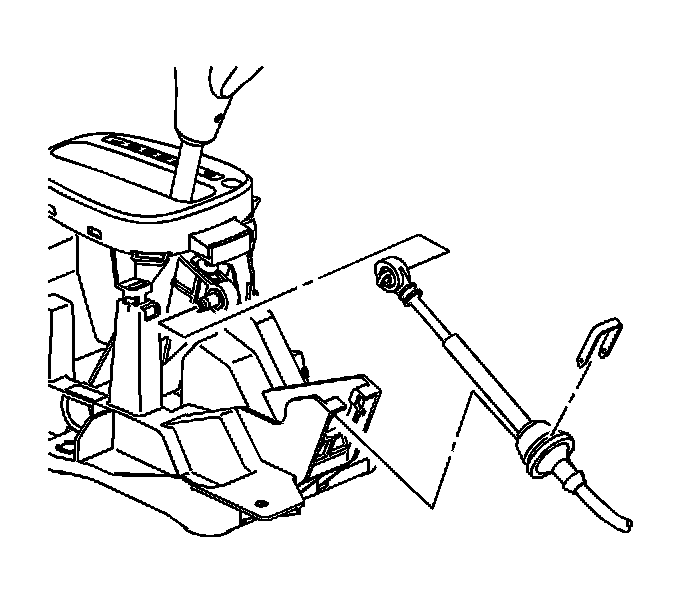

2. Disconnect the shift cable from the shift control assembly.
3. Remove the shift control nuts.
4. Disconnect the shift lock solenoid harness connector.
5. Remove the shift control from the vehicle.

Installation Procedure
1. Install the shift control to the vehicle.
2. Connect the shift lock solenoid harness connector.

3. Notice: Install the shift control nuts.

^ Tighten the shift control nuts to 25 Nm (18 ft. lbs.).





4. Connect the shift cable to the shift control assembly.
5. Install the console.
