Shift Linkage: Service and Repair

Floor Shift Control Replacement

Removal Procedure

1. Caution: Refer to Battery Disconnect Caution in Service Precautions.

Disconnect the negative battery cable.





2. Remove the automatic transmission control lever handle.
3. Remove the console.

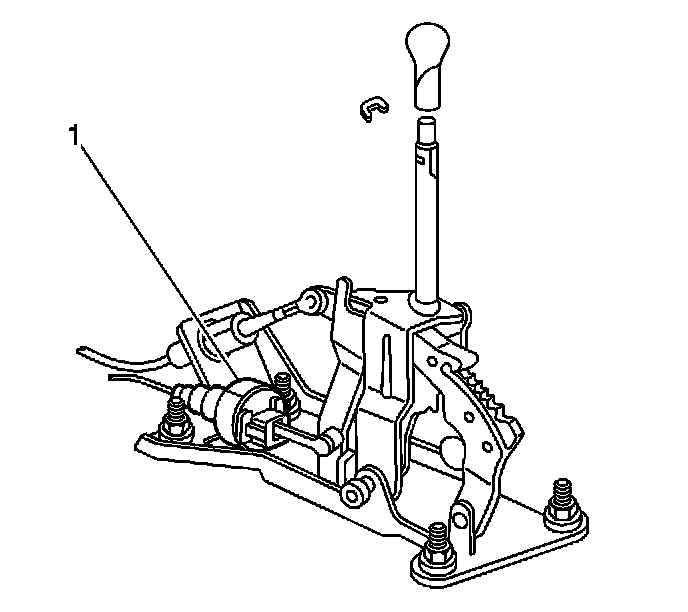

4. Remove the range select lever cable (1) from the automatic transmission shift control.
5. Remove the park lock cable from the automatic transmission shift control.
6. Remove the electrical connector.

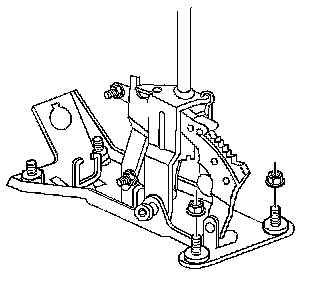

7. Remove the automatic transmission control bolts.
8. Remove the automatic transmission shift control.

Installation Procedure





1. Install the automatic transmission shift control.
2. Install the automatic transmission shift control bolts.
3. Install the electrical connector.





4. Install the range select lever cable (1) to the automatic transmission control.
5. Install the park lock cable from the automatic transmission shift control.
6. Install the console.
7. Install the automatic transmission control lever handle.
8. Connect the negative battery cable.
