Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Shift Lever CAN Be Moved Without Brake Pedal Depressed

Shift Lever CAN Be Moved Without Brake Pedal Depressed

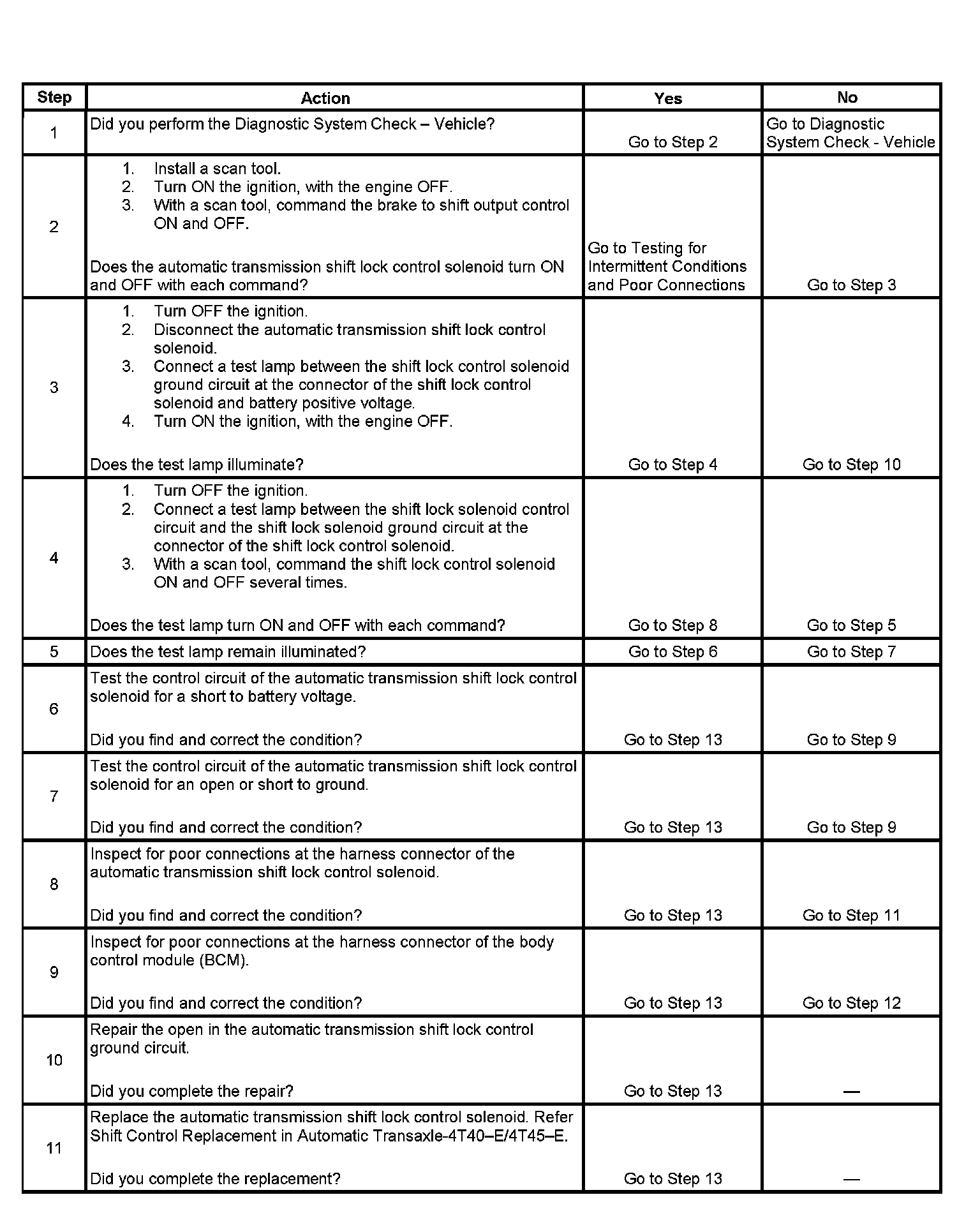

Steps 1 - 11:

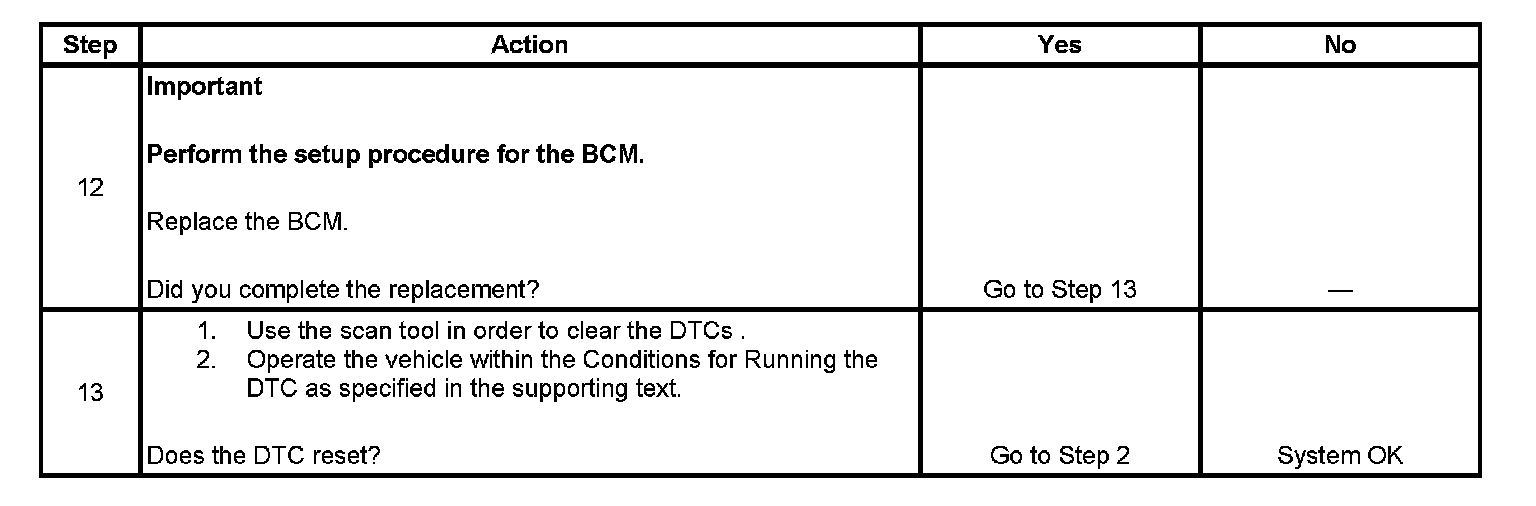

Steps 12 - 13:
