95. Spacer Plate and Gaskets Installation

Spacer Plate and Gaskets Installation

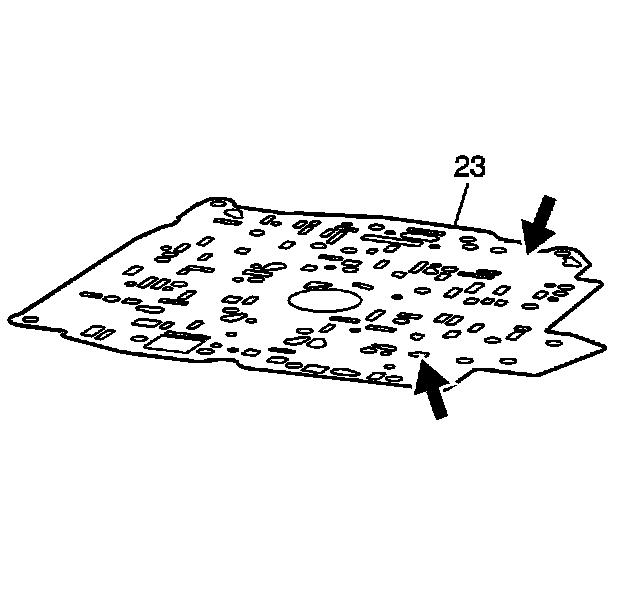

1. Important: The non-Driver Shift Control (DSC) 4T40-E/4T45-E has a different spacer plate than the 4T45-E Driver Shift Control (DSC). The DSC spacer plate has one notch on it. The NON-DSC spacer plate has two notches on it.

Inspect the spacer plate for damage.
2. If damaged, replace the spacer plate (23).

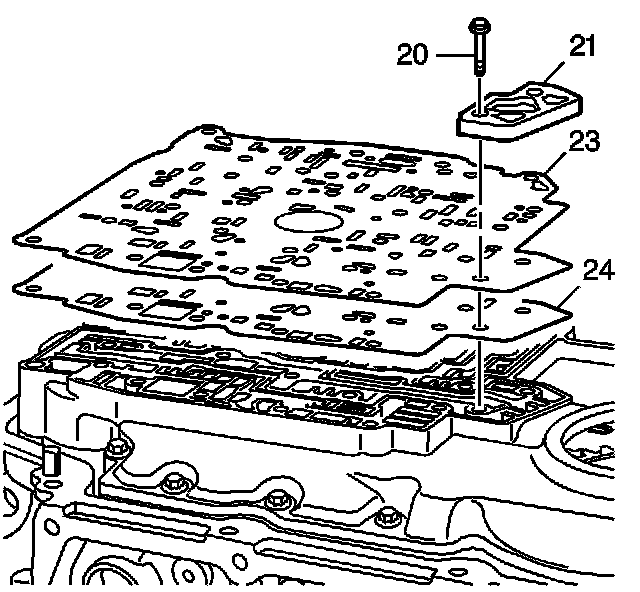

3. Install a new spacer plate to channel plate gasket (24) onto the channel plate.
4. Install the spacer plate (23) on top of the gasket and channel plate.

5. Notice: Refer to Fastener Notice in Service Precautions.

Install the spacer plate support (21) and the two bolts (20) onto the spacer plate. Hand start the bolts.
^ Tighten the bolts to 14 Nm (10.5 ft. lbs.).
