34. Final Drive Internal Gear Removal



Final Drive Internal Gear Removal

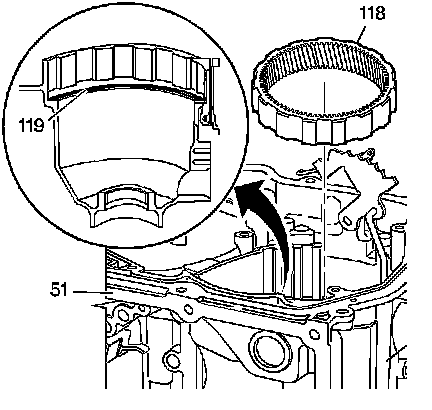

Important: The fretting ring (119) is in the case ring groove. Do not remove the fretting ring unless it appears damaged.

Remove the final drive internal gear (118).
