Output Axle Shaft Sleeve and Seal Replacement

Output Axle Shaft Sleeve and Seal Replacement

^ Tools Required
- J 41227Output Shaft Sleeve Remover

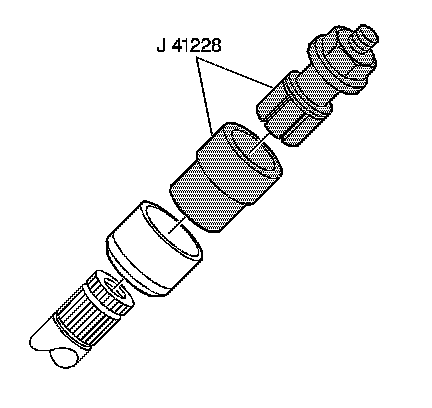

- J 41228 Output Shaft Sleeve Installer

Removal Procedure
1. Raise the vehicle. Support the vehicle.
2. Remove the drive axle assembly.





3. Remove the snap ring from axle.





4. Remove the output axle seal.





5. Use the J 41227 to remove the sleeve from the output axle.

Installation Procedure

Important: The output axle shaft sleeve and seal must be replaced together. DO NOT replace the sleeve or seal separately.





1. Use the J 41228 to install a new sleeve on the output axle shaft. Ensure that the collet is located in the snap ring groove when installing.





2. Install the new output axle seal.





3. Install one new snap ring on the output shaft.
4. Install the drive axle assembly.
5. Lower the vehicle.
6. Inspect the output axle shaft sleeve for leaks.
7. Inspect the oil level.
