Front Steering Knuckle: Service and Repair





The content of this article reflects the changes identified in TSB Bulletin No. #05-03-08-017 dated December 06, 2005.

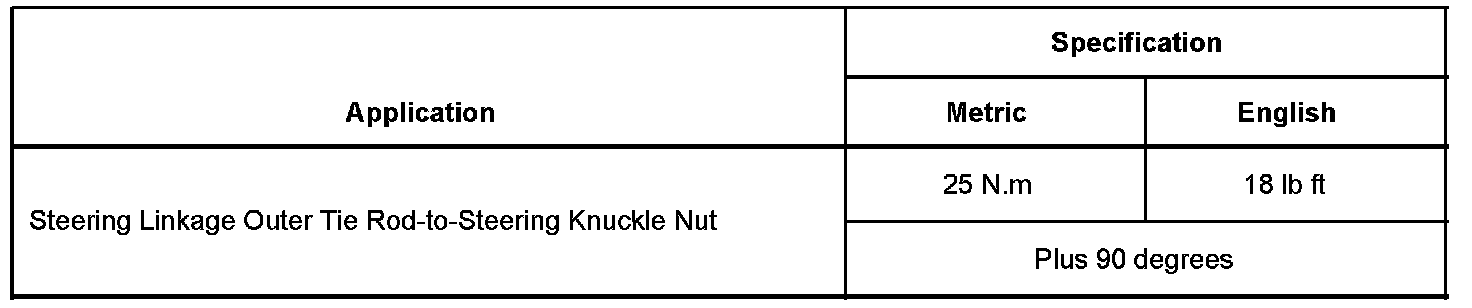

SUBJECT: Steering Linkage Outer Tie Rod-to-Steering Knuckle Nut Torque




Revised Torque TSB # 05-03-08-017 Dated 12/06/2005:

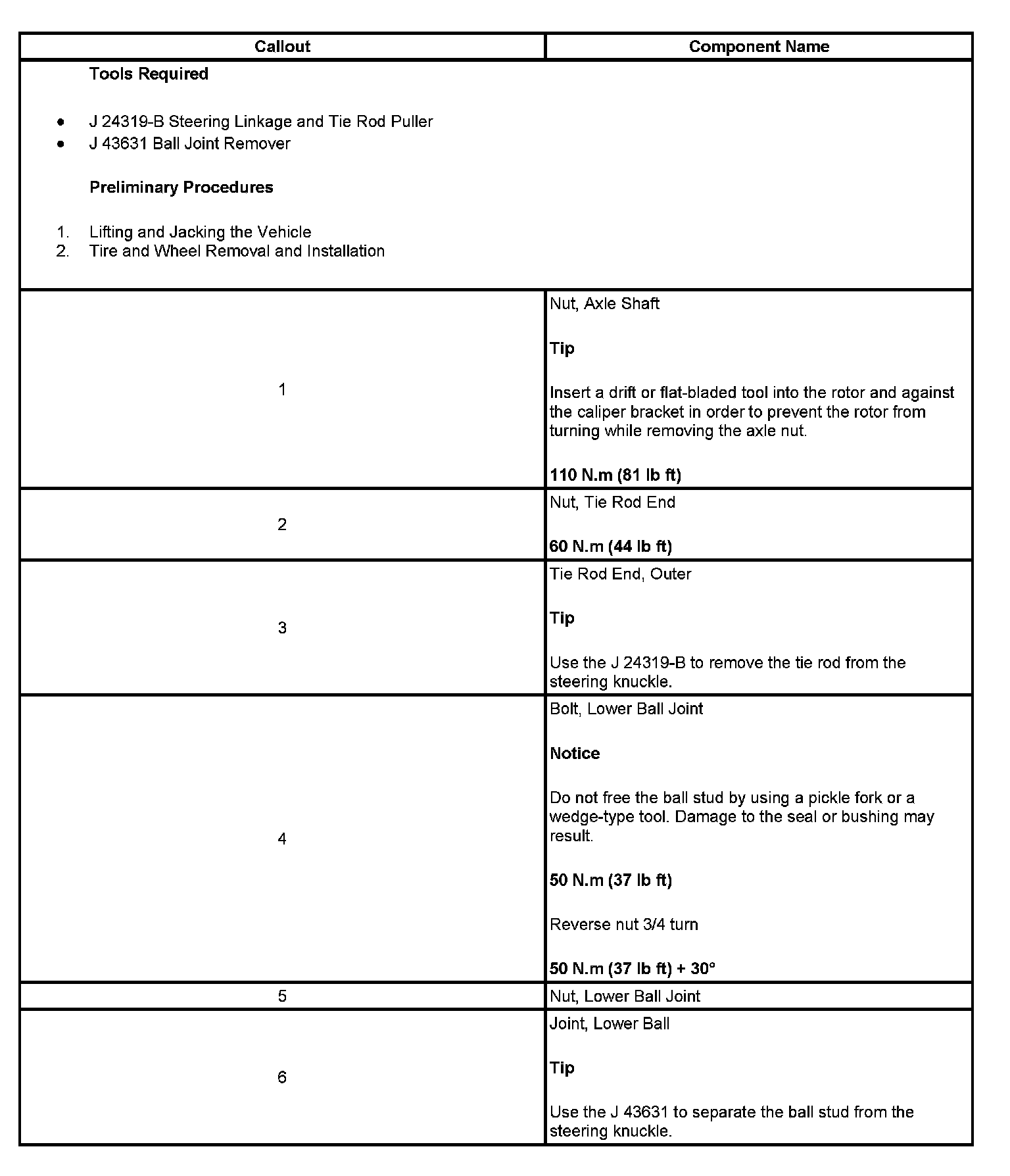

Steering Knuckle Replacement
