Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Solenoid Does Not Click

Starter Solenoid Does Not Click

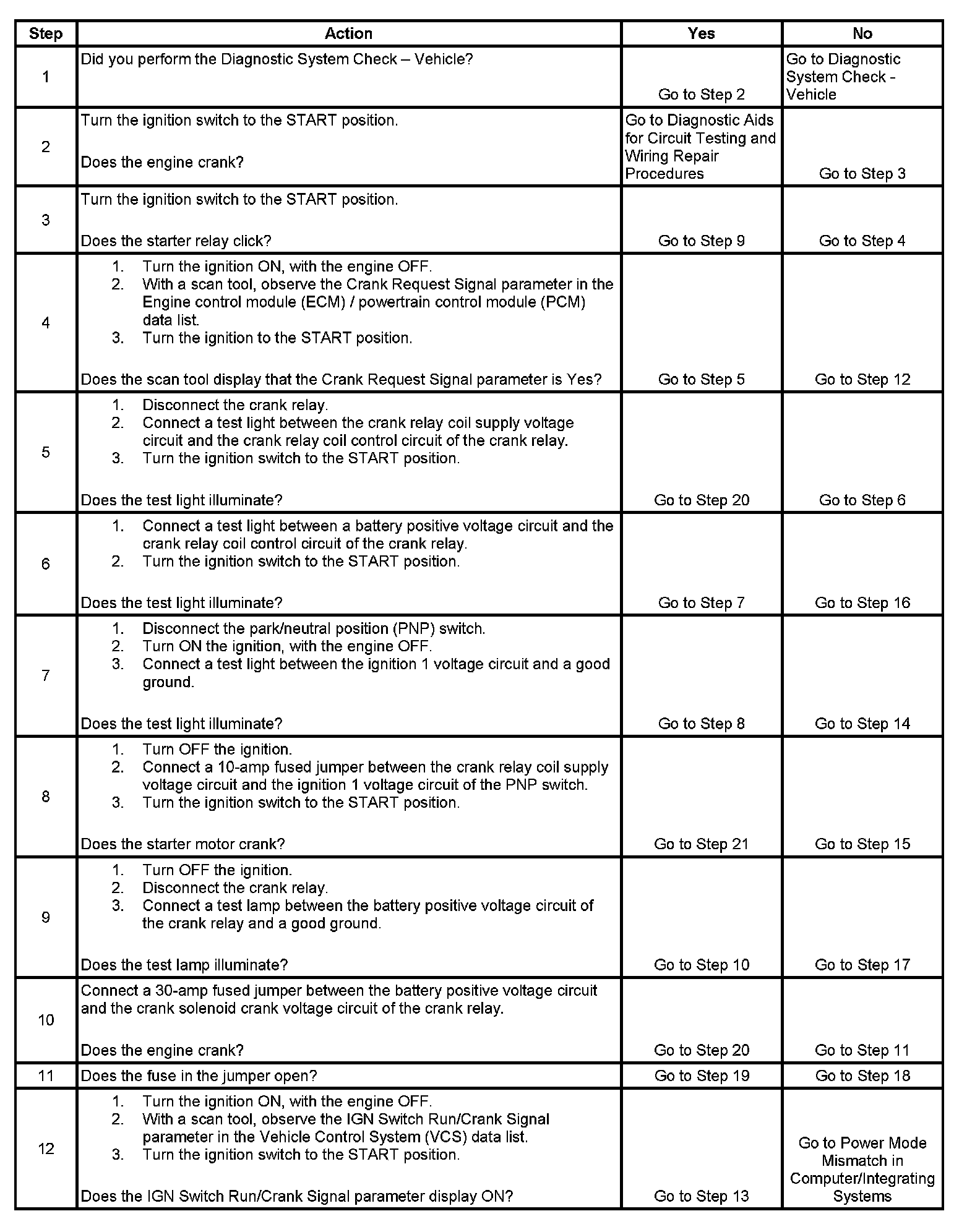

Steps 1-12:

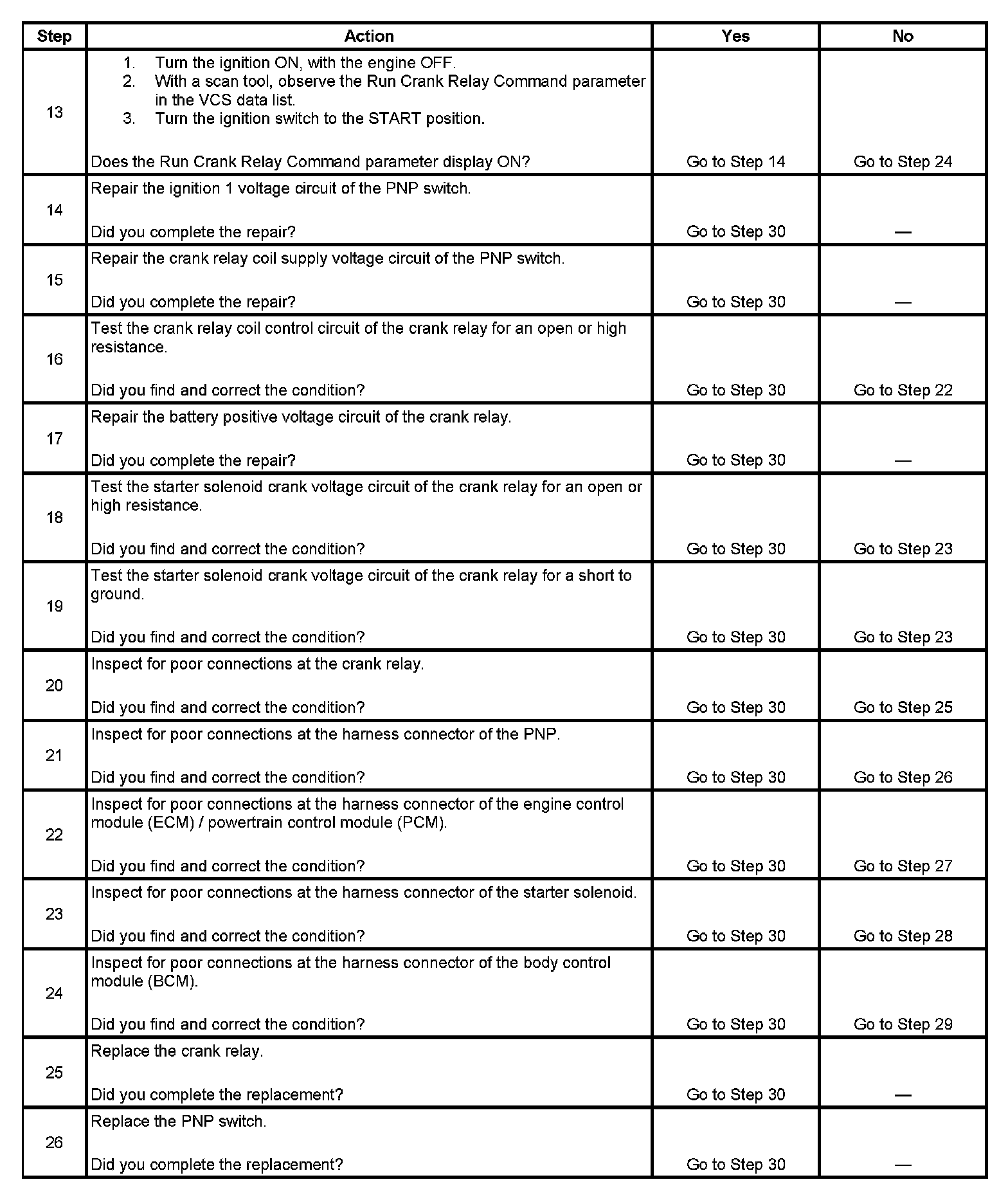

Steps 13-26:

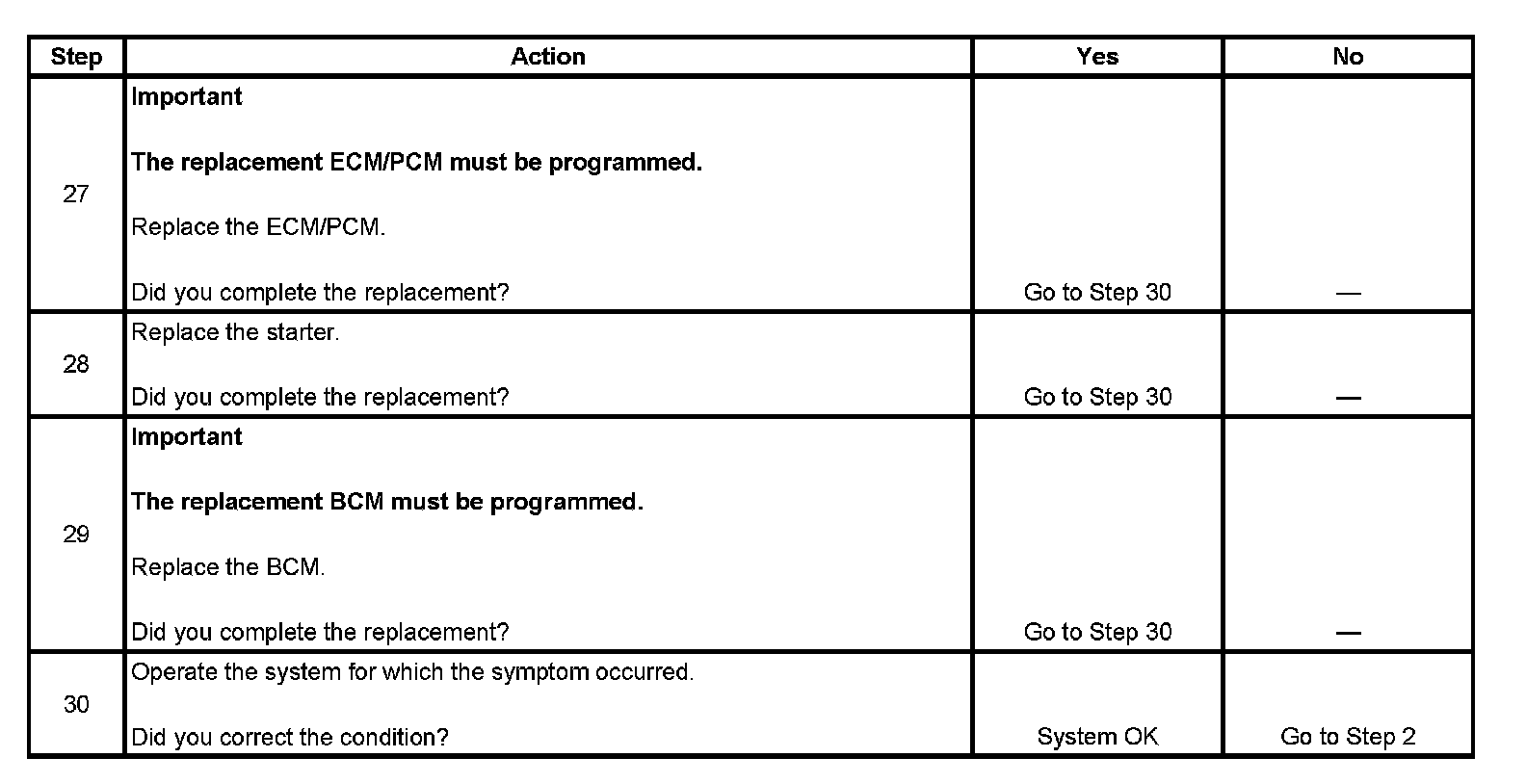

Steps 27-30:
