Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Tool Data Values

Normal Scan Tool Data Values

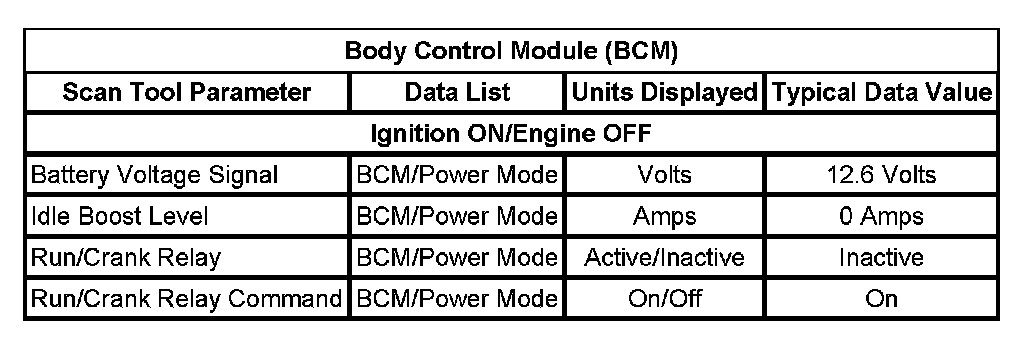

Body Control Module (BCM):

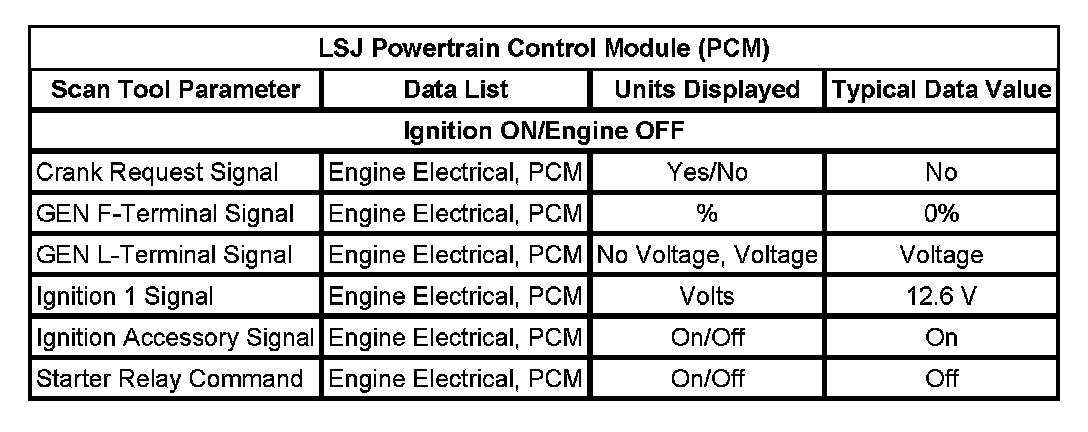

Powertrain Control Module (PCM):

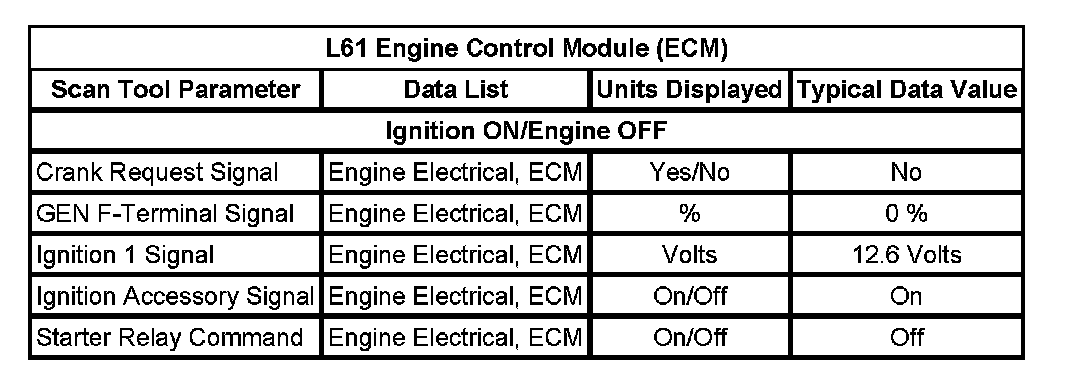

Engine Control Module (ECM):

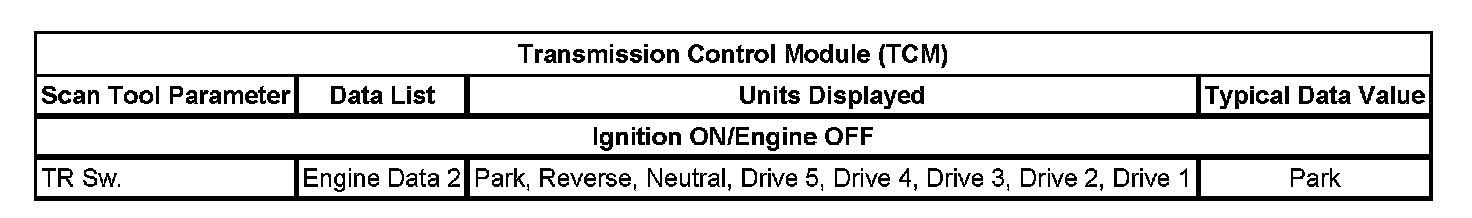

Transmission Control Module (TCM):
