Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Tightening Torques and Sequences

Tightening Torques and Sequences

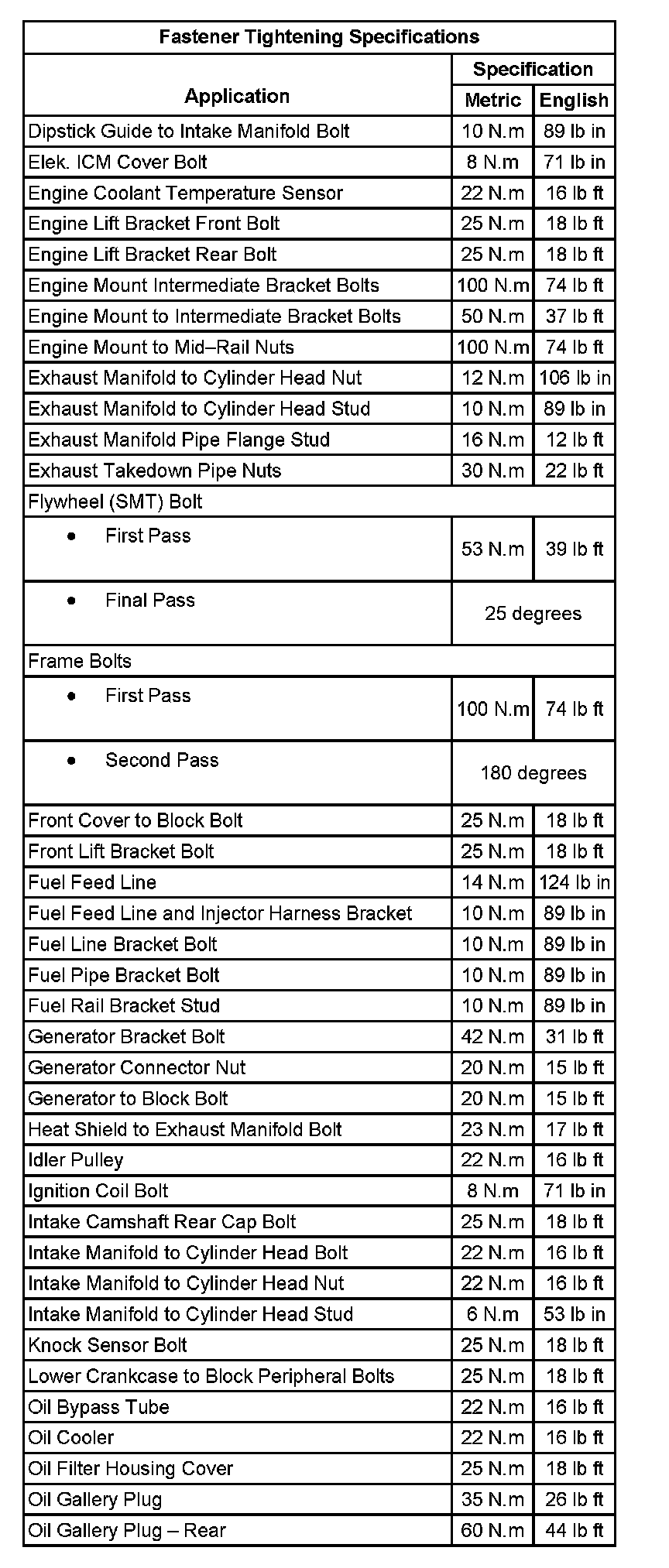

Fastener Tightening Specifications:

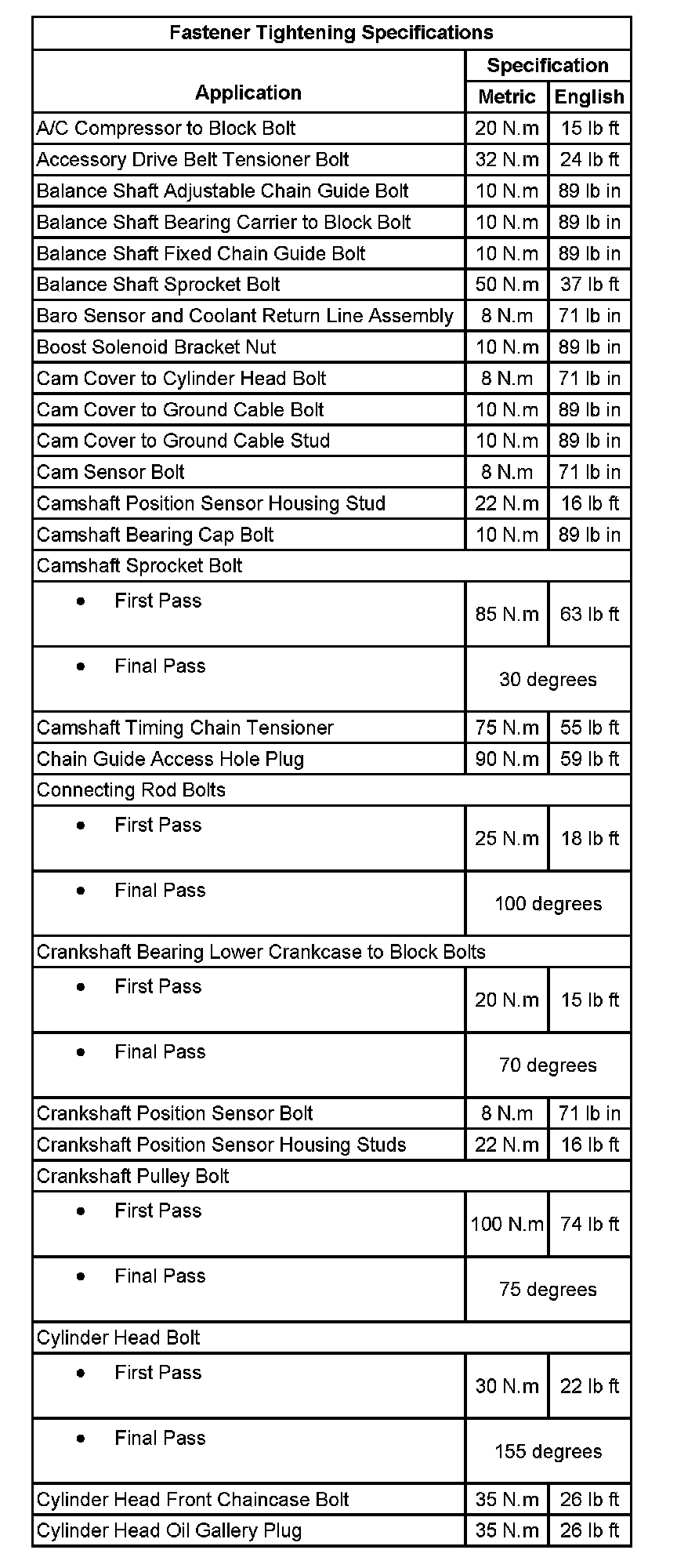

Fastener Tightening Specifications:

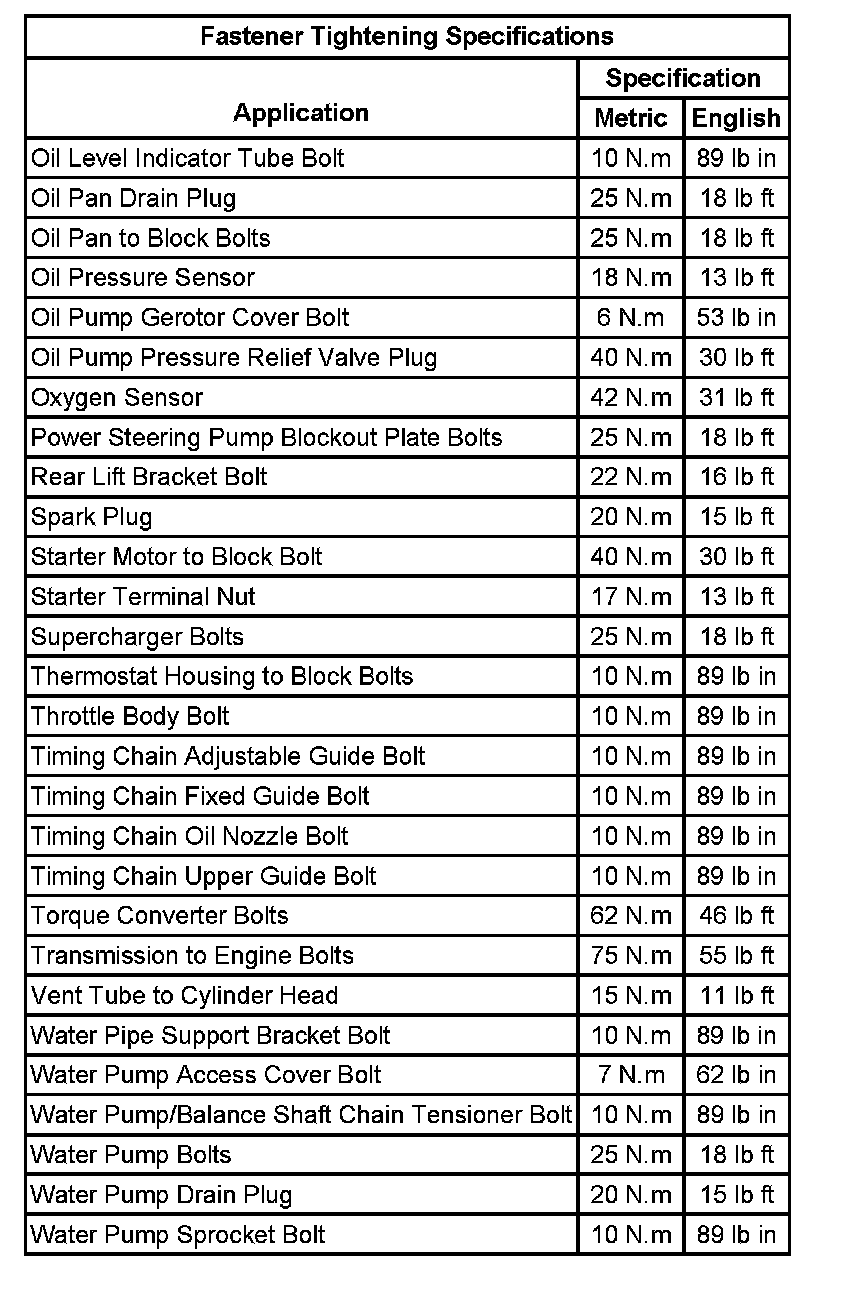

Fastener Tightening Specifications:
