Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Computer/Integrating Systems >> Retained Accessory Power (RAP) On After Timeout

Retained Accessory Power (RAP) On After Timeout

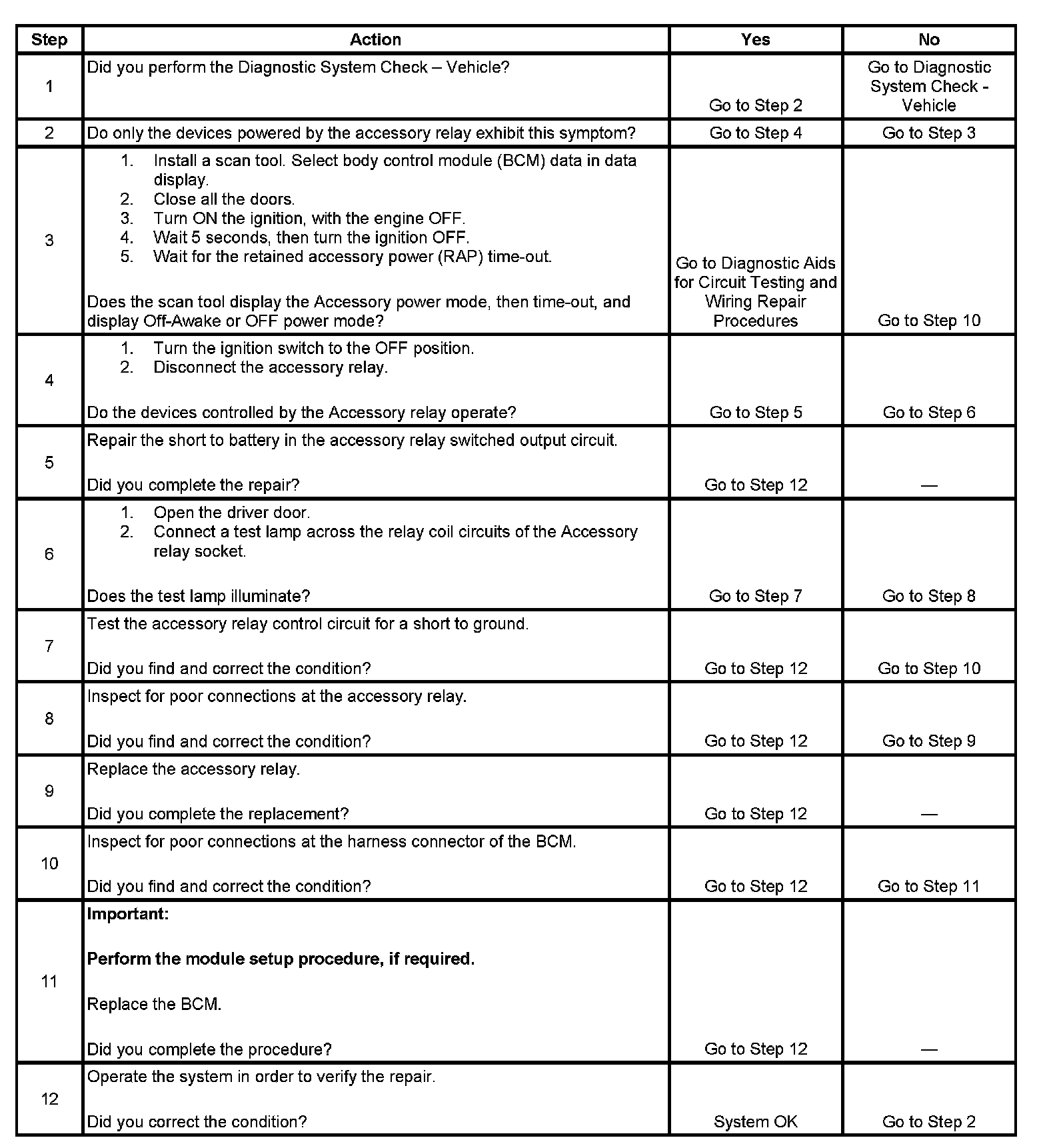

Steps 1-12:
