Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Rear Compartment Lamps Inoperative

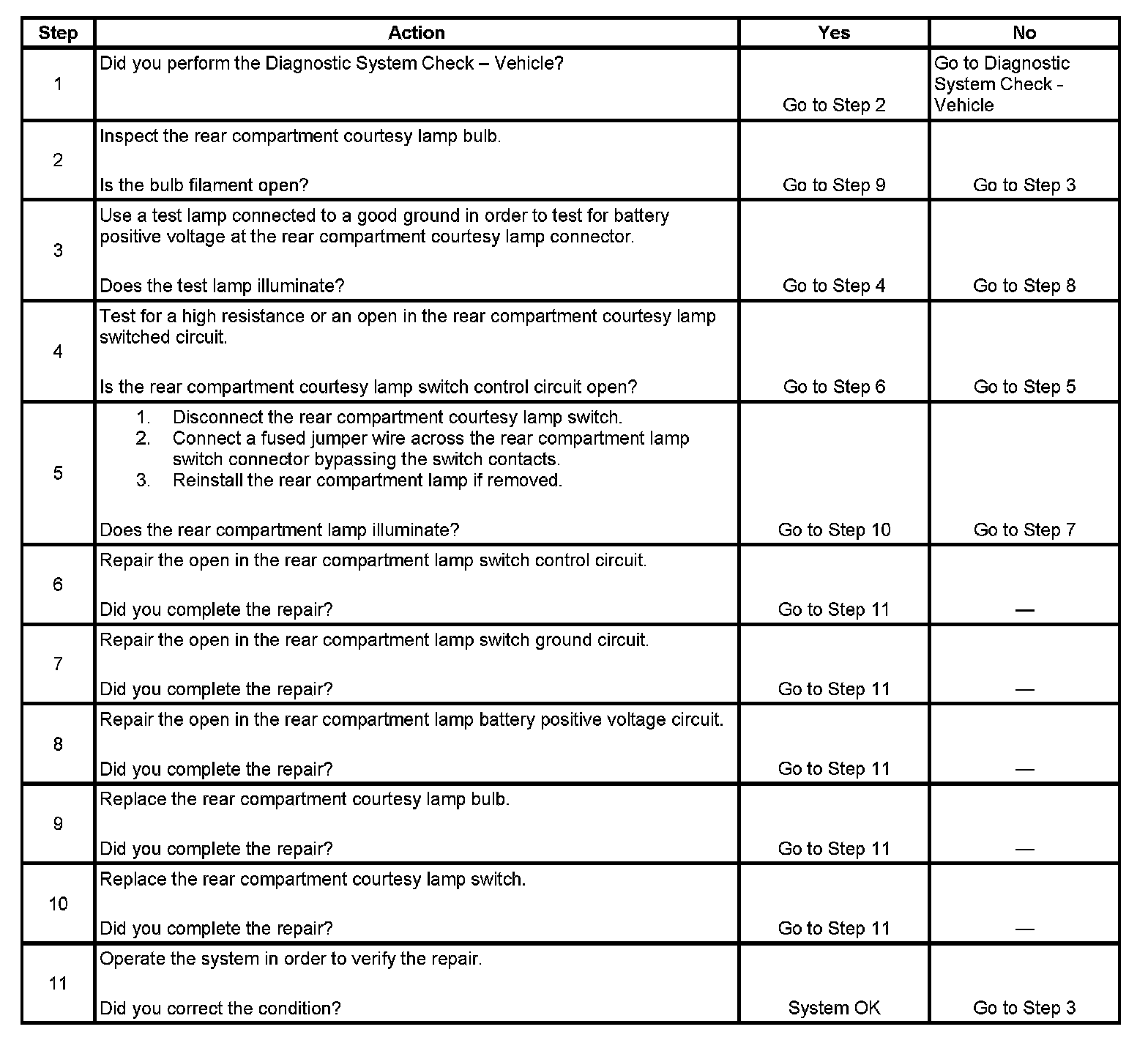

Rear Compartment Lamps Inoperative

Steps 1 - 11:
