Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps Inoperative - High Beams

Headlamps Inoperative - High Beams

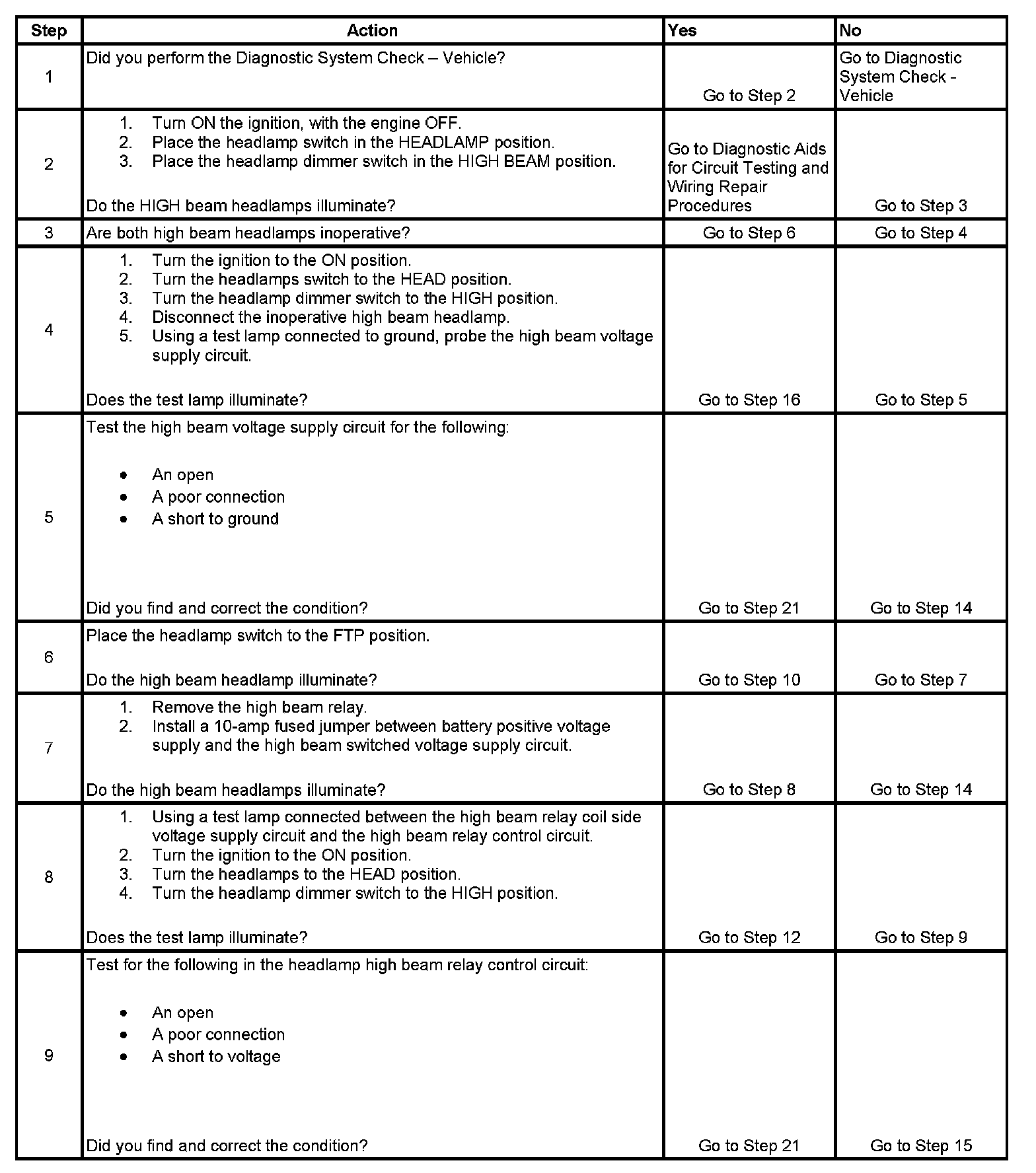

Steps 1 - 9:

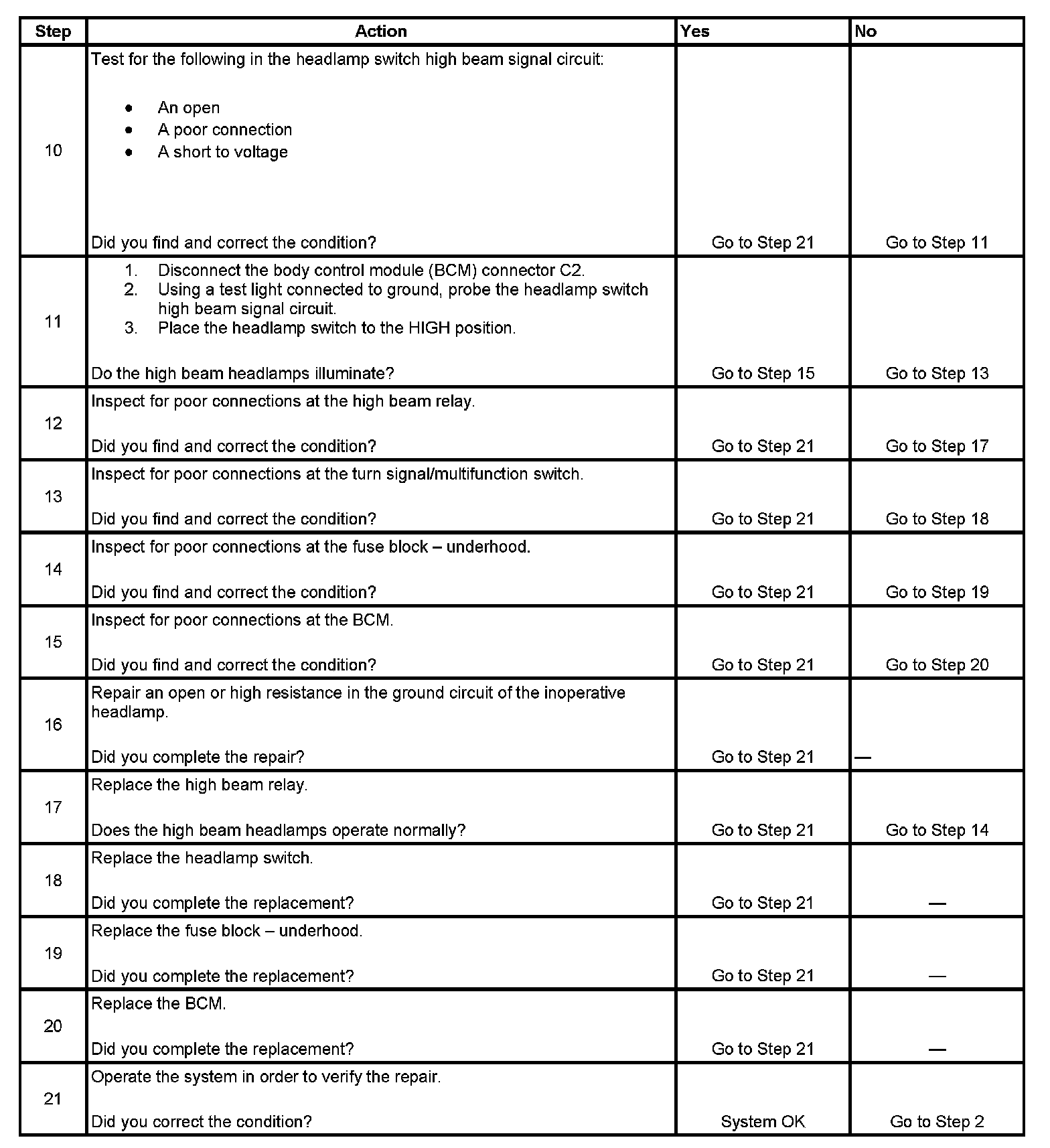

Steps 10 - 21:
