Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Driver Information Center (DIC) - Switches Inoperative

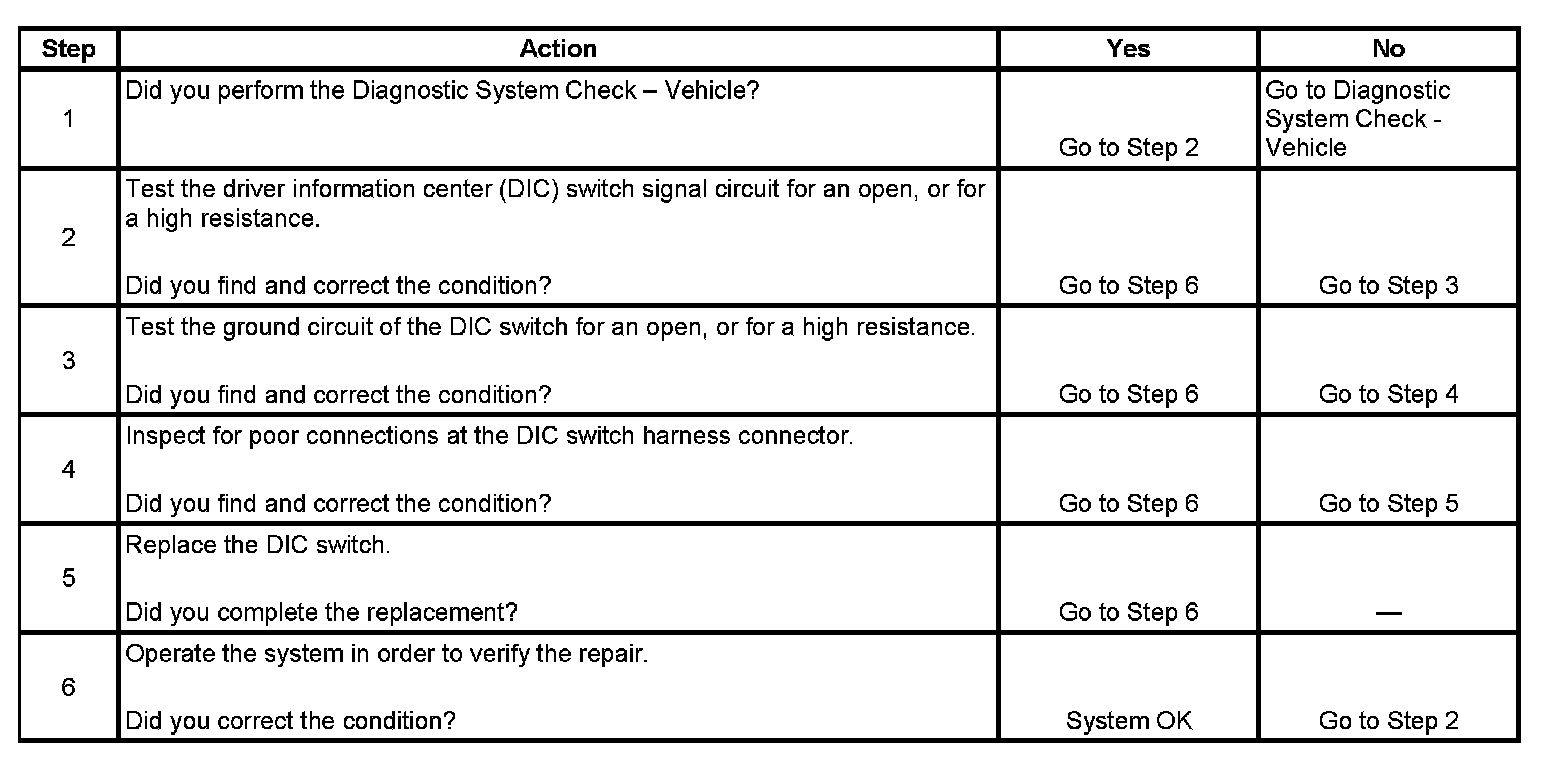

Driver Information Center (DIC) - Switches Inoperative

Steps 1 - 6:
