Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Heating Performance Diagnostic

Heating Performance Diagnostic

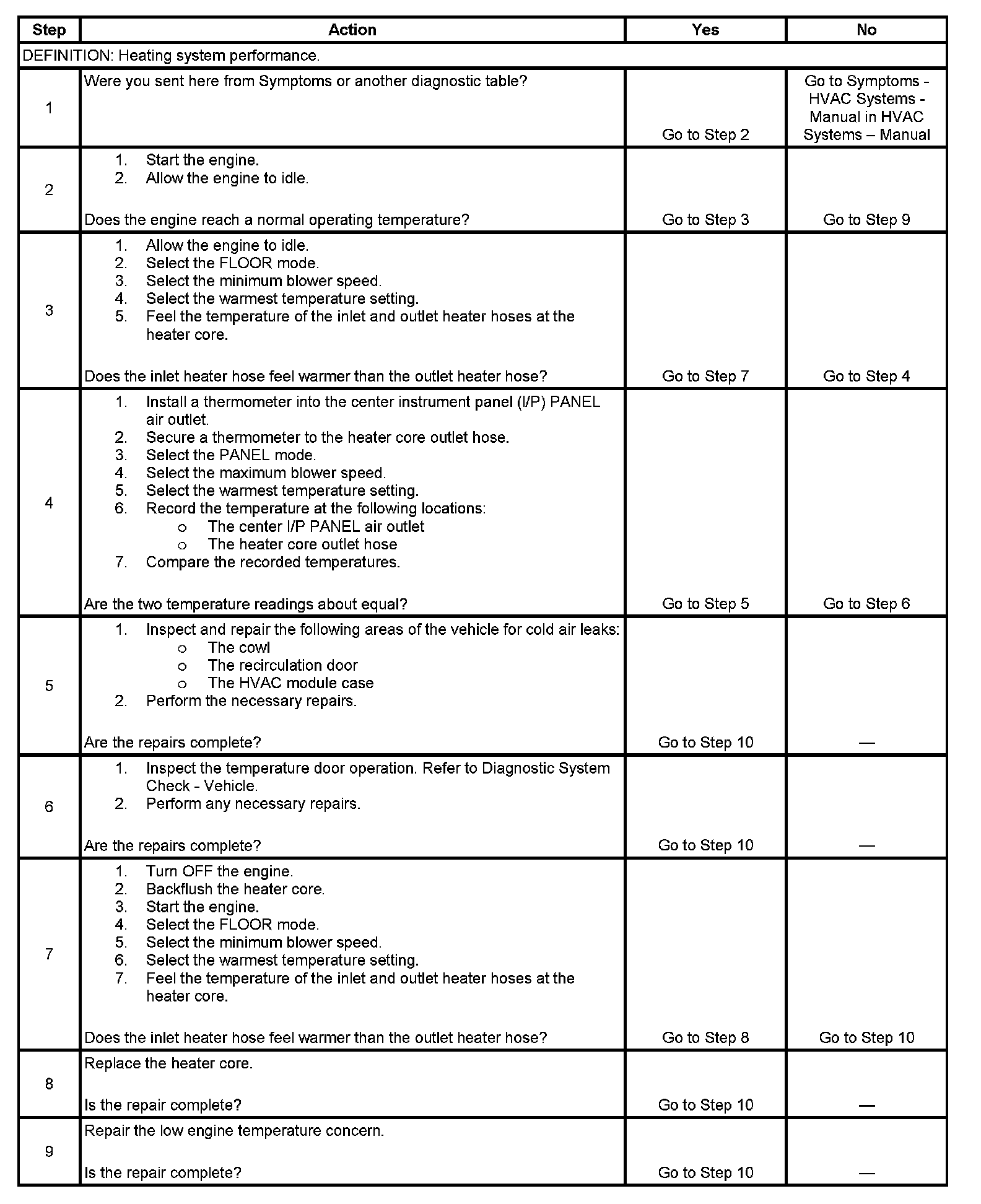

Steps 1-9:

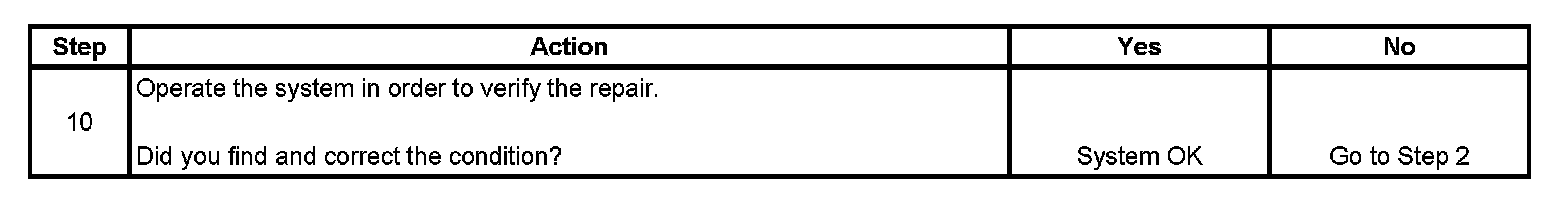

Step 10:
