Center

AIR OUTLET DUCT REPLACEMENT - CENTER

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) center trim panel.




2. Remove the center air outlet duct screws and duct.

INSTALLATION PROCEDURE

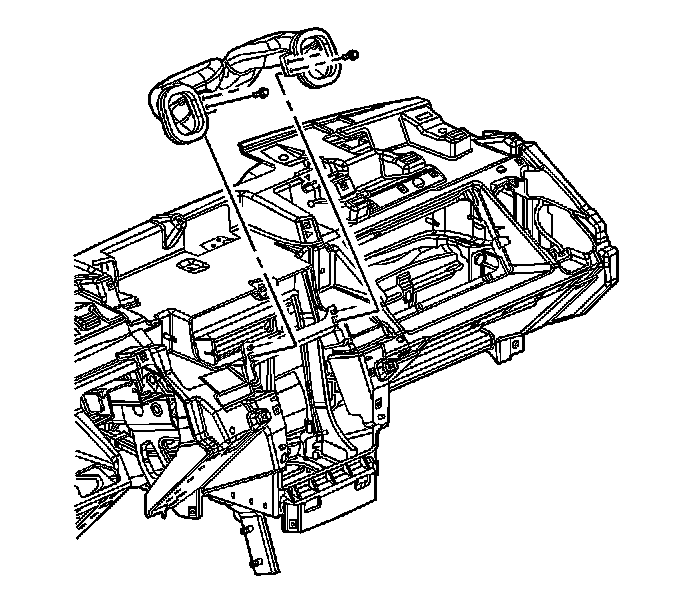

1. Install the center air outlet duct.
2. Install the center air outlet screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the center air outlet duct screws to 2.5 N.m (22 lb in).

3. Install the instrument panel (I/P) center trim panel.
