Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Loss of Coolant

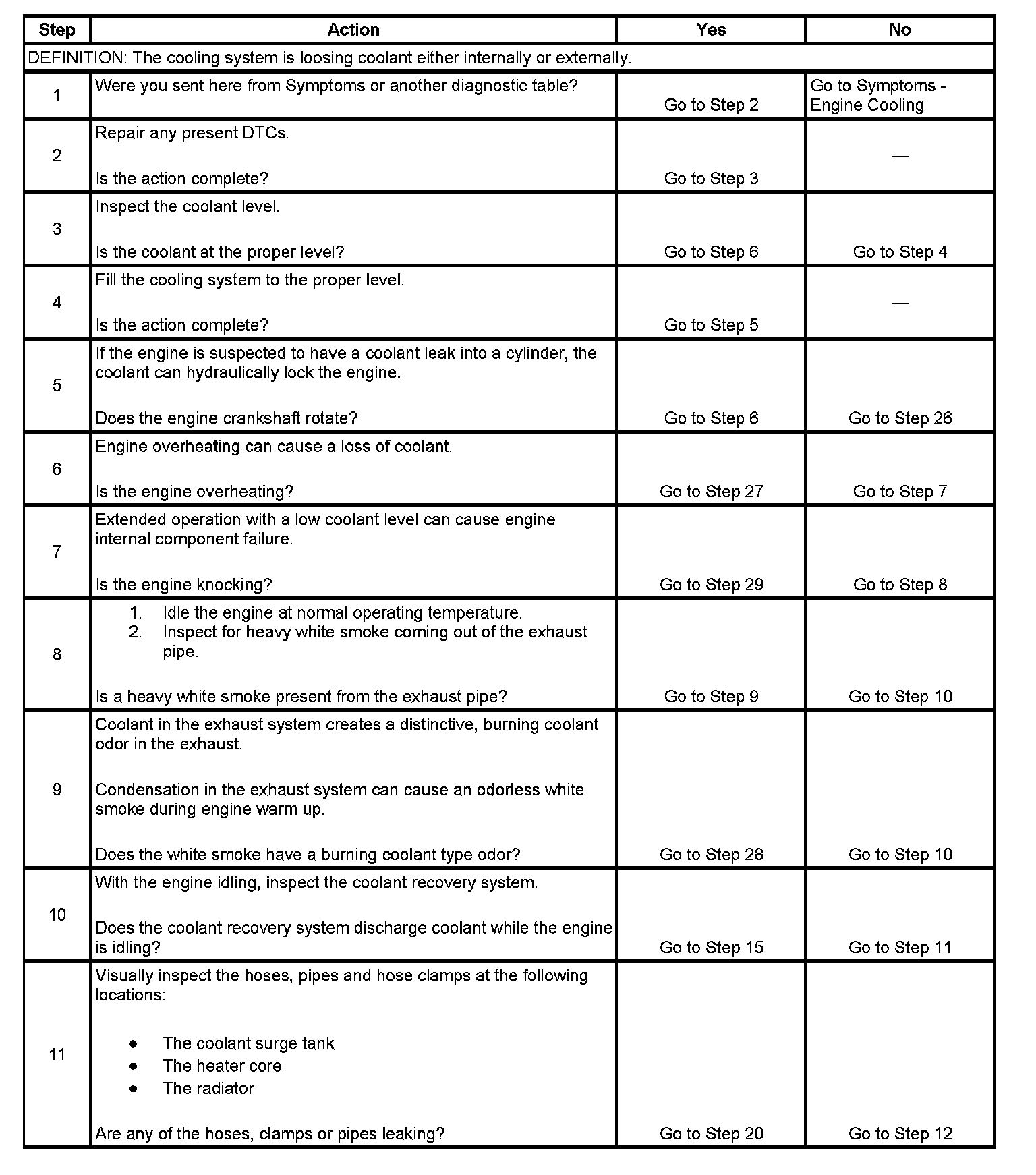

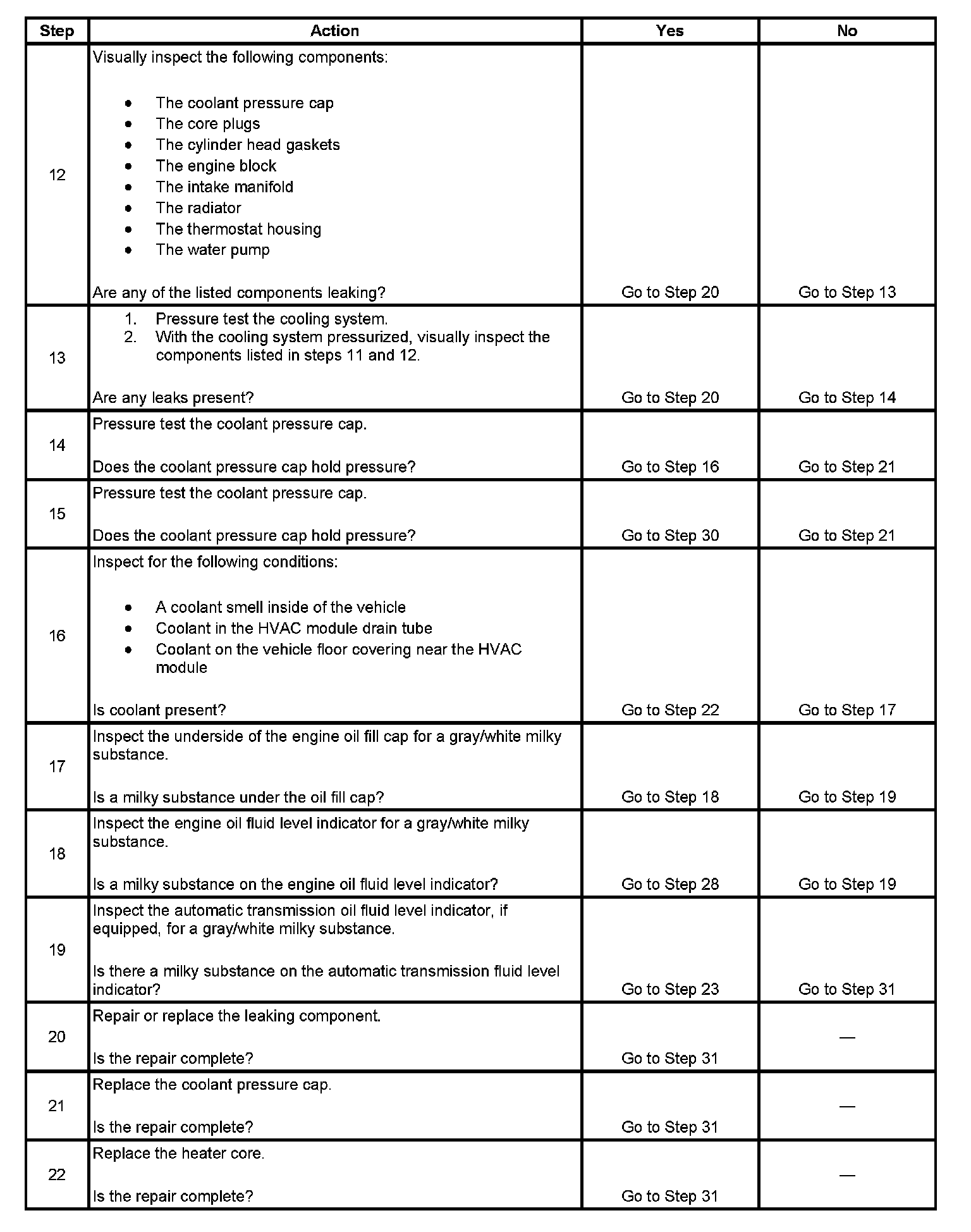

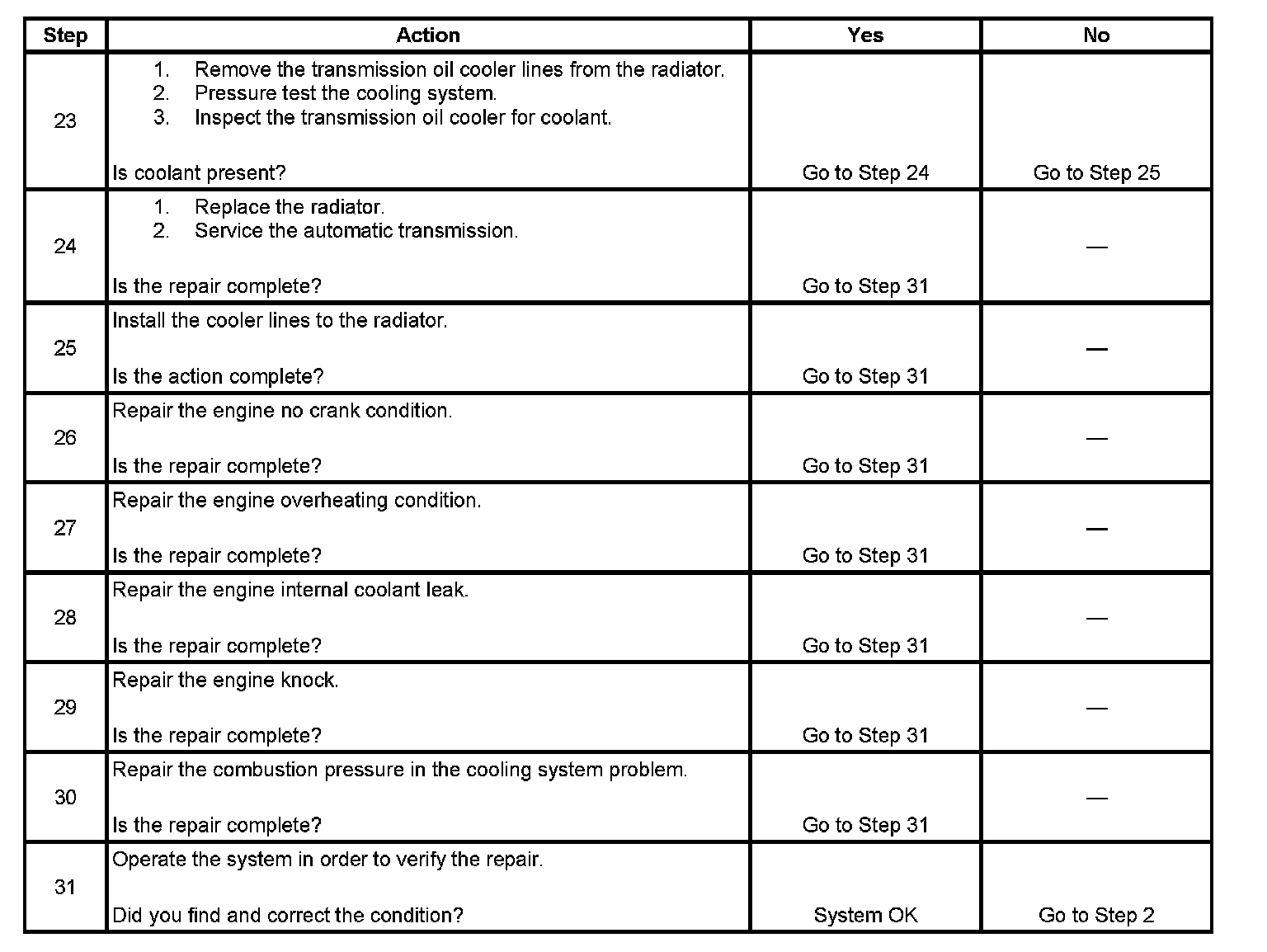

Loss of Coolant

Loss of Coolant:



Loss of Coolant:



Loss of Coolant:
