Cobalt L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Remote Control, Audio - Stereo
Remote Control, Audio - Stereo

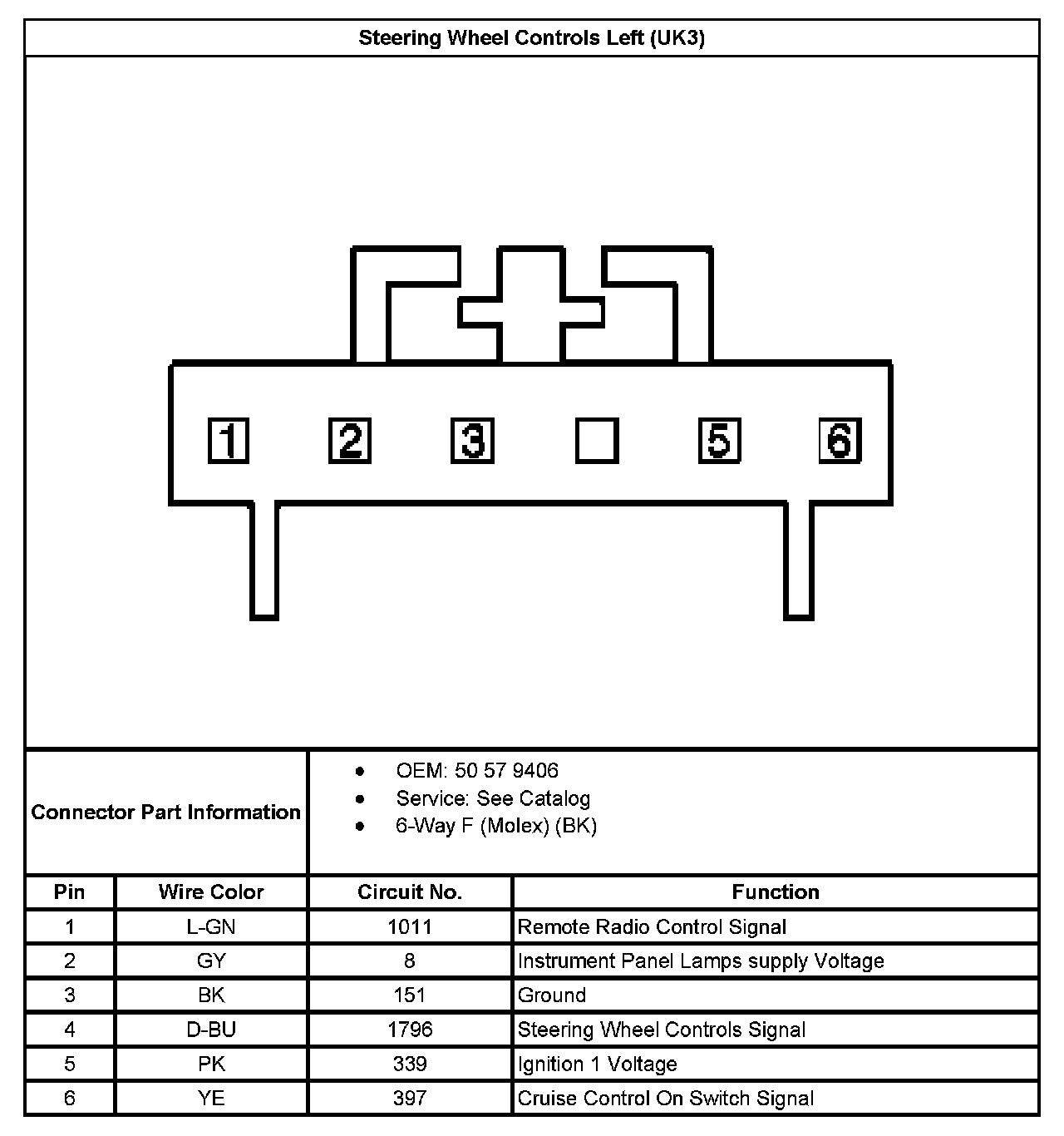

Steering Wheel Controls Left (With RPO Code UK3):
Steering Wheel Controls Right (With RPO Code UK3):
