C300
C300

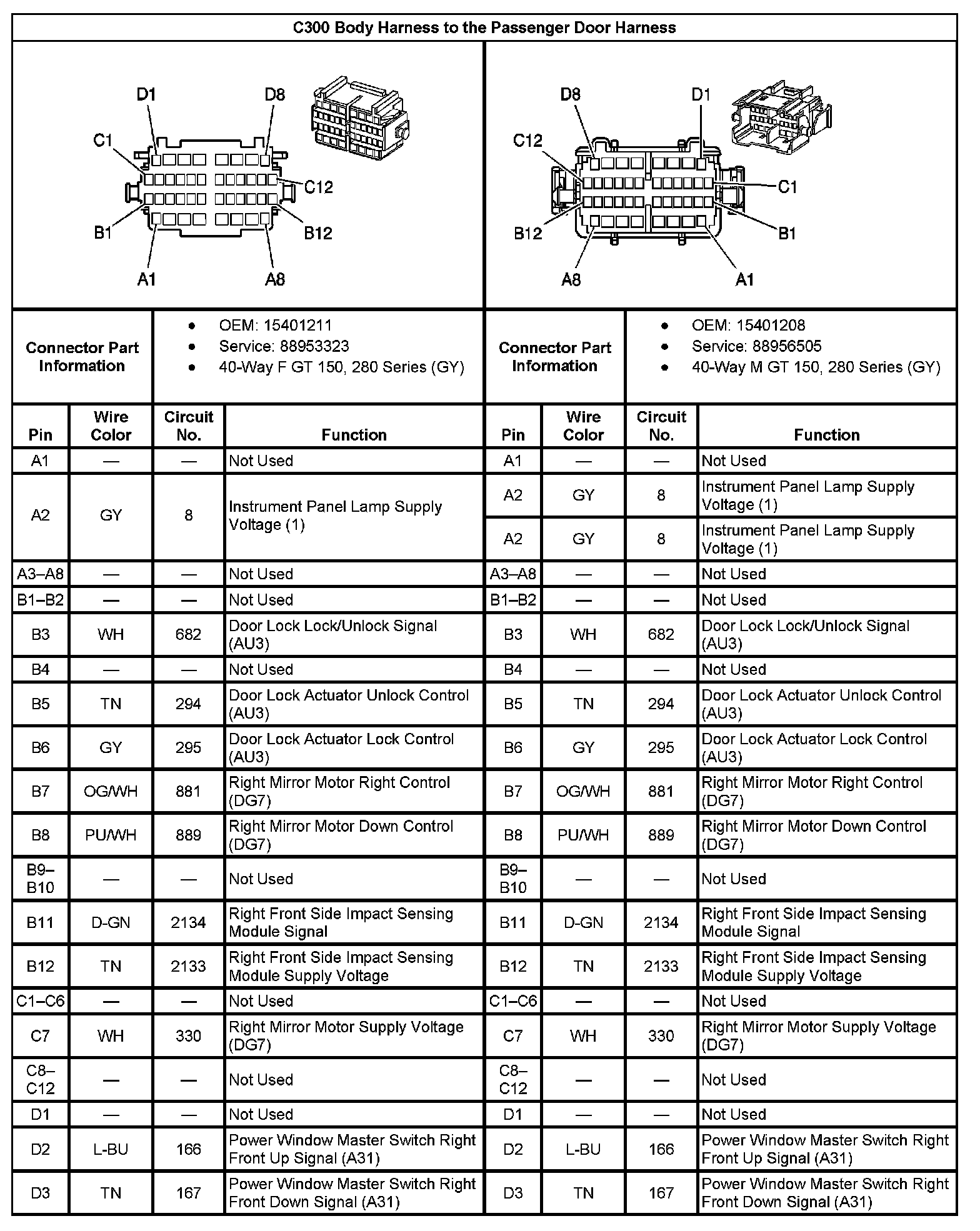

C300 Body Harness to the Passenger Door Harness Part 1:
C300 Body Harness to the Passenger Door Harness Part 2:
