Air Bag Control Module

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code ASF) Part 1:

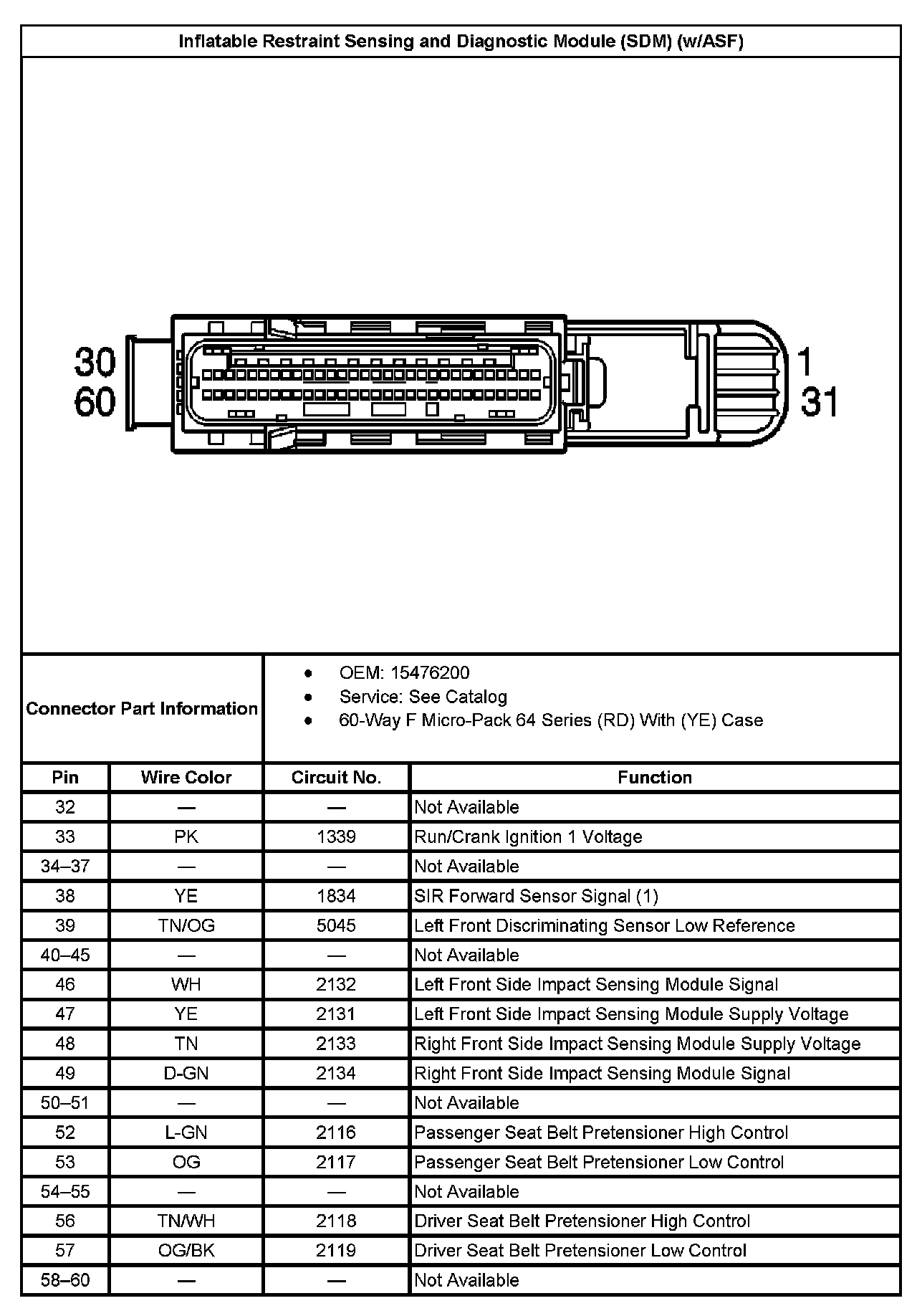

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code ASF) Part 2:

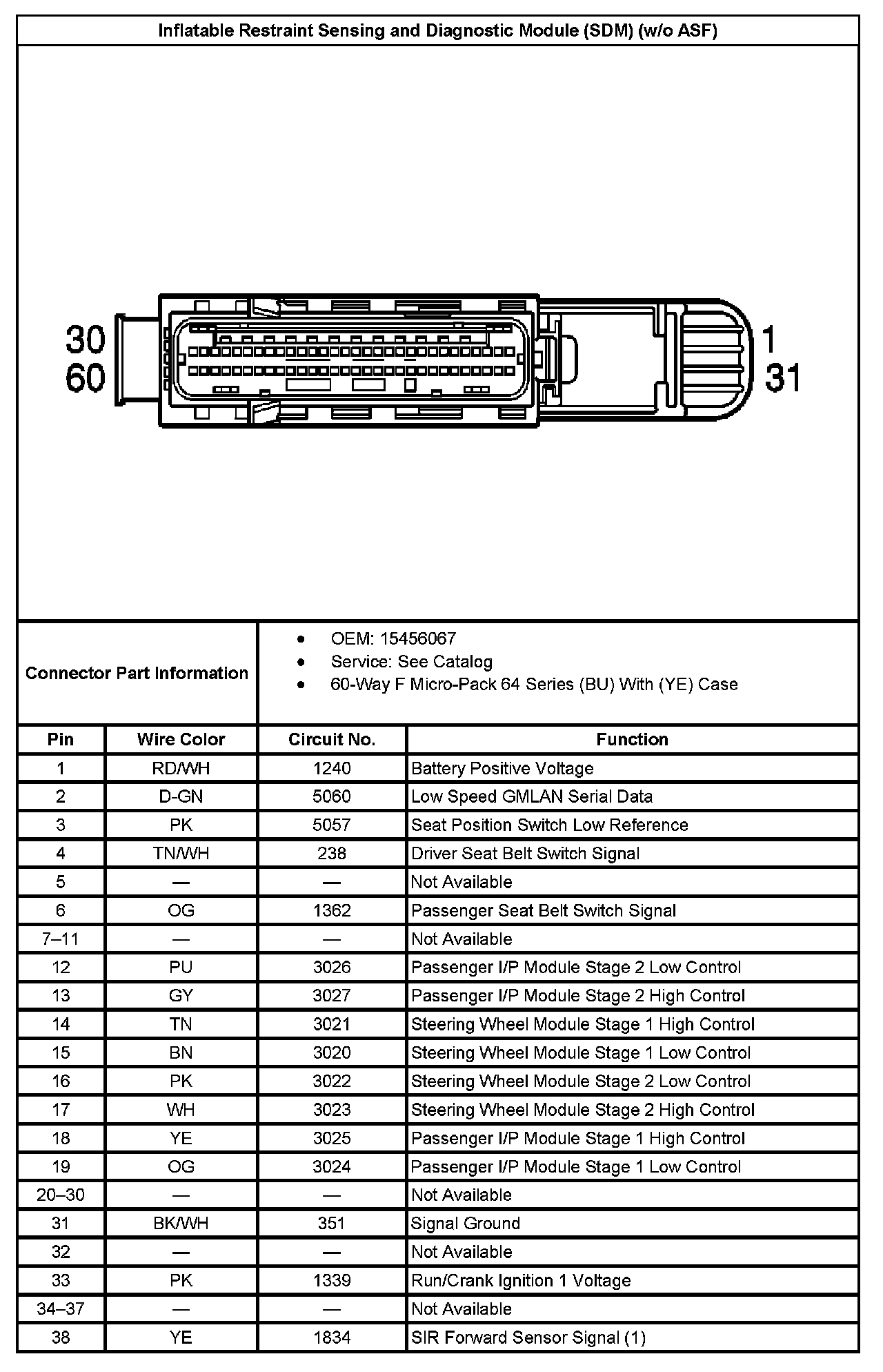

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Without RPO Code ASF) Part 1:



Inflatable Restraint Sensing And Diagnostic Module (SDM) (Without RPO Code ASF) Part 2:
