Power Sunroof Inoperative

POWER SUNROOF INOPERATIVE

DIAGNOSTIC AIDS
If the power sunroof system fuse is open and a short to ground in the accessory voltage circuit is not detected, the fault could be a short to ground in one of the power sunroof control circuits. This would open the power sunroof system fuse when the sunroof switch is pressed.

TEST DESCRIPTION

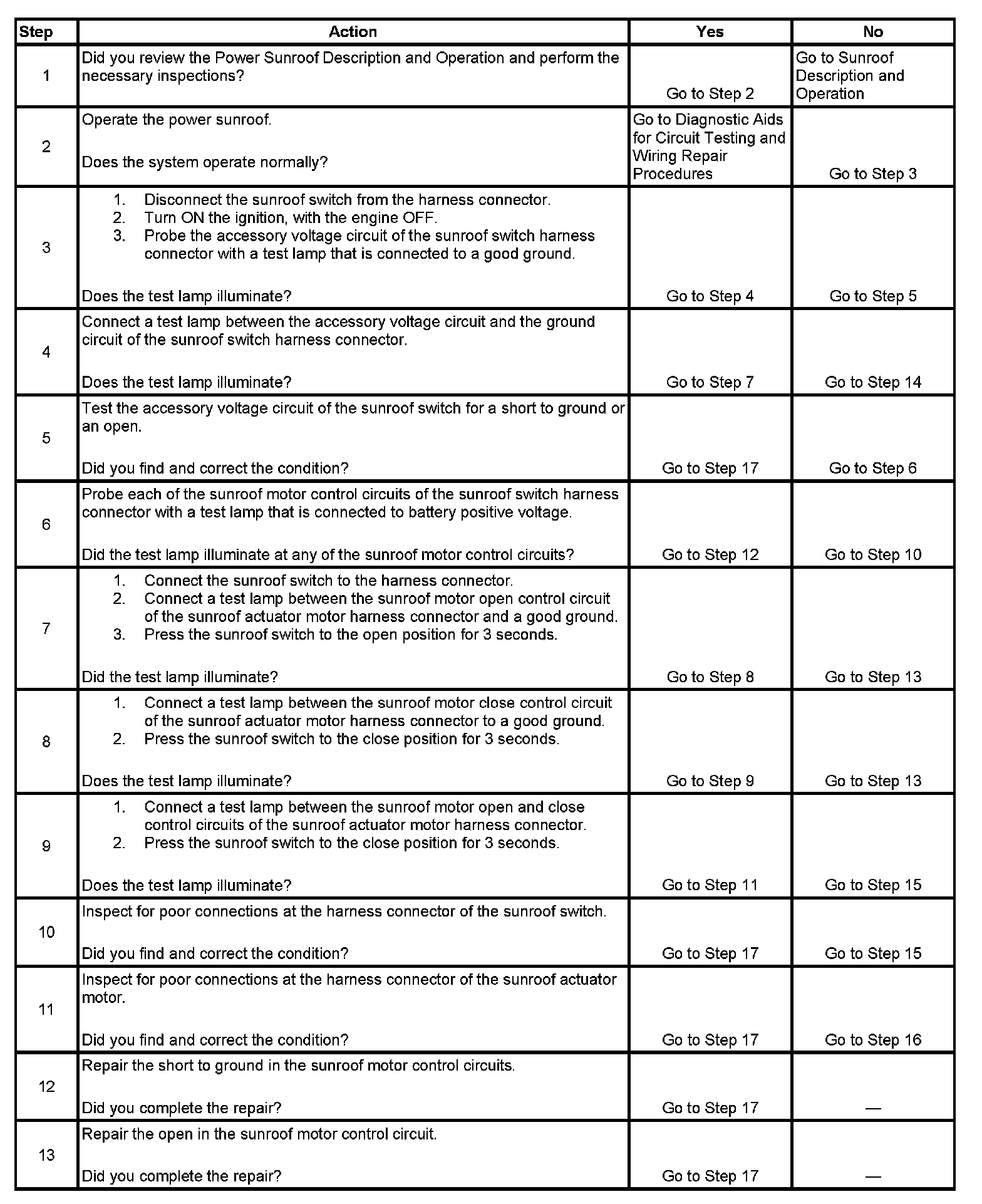

Steps 1 - 13:

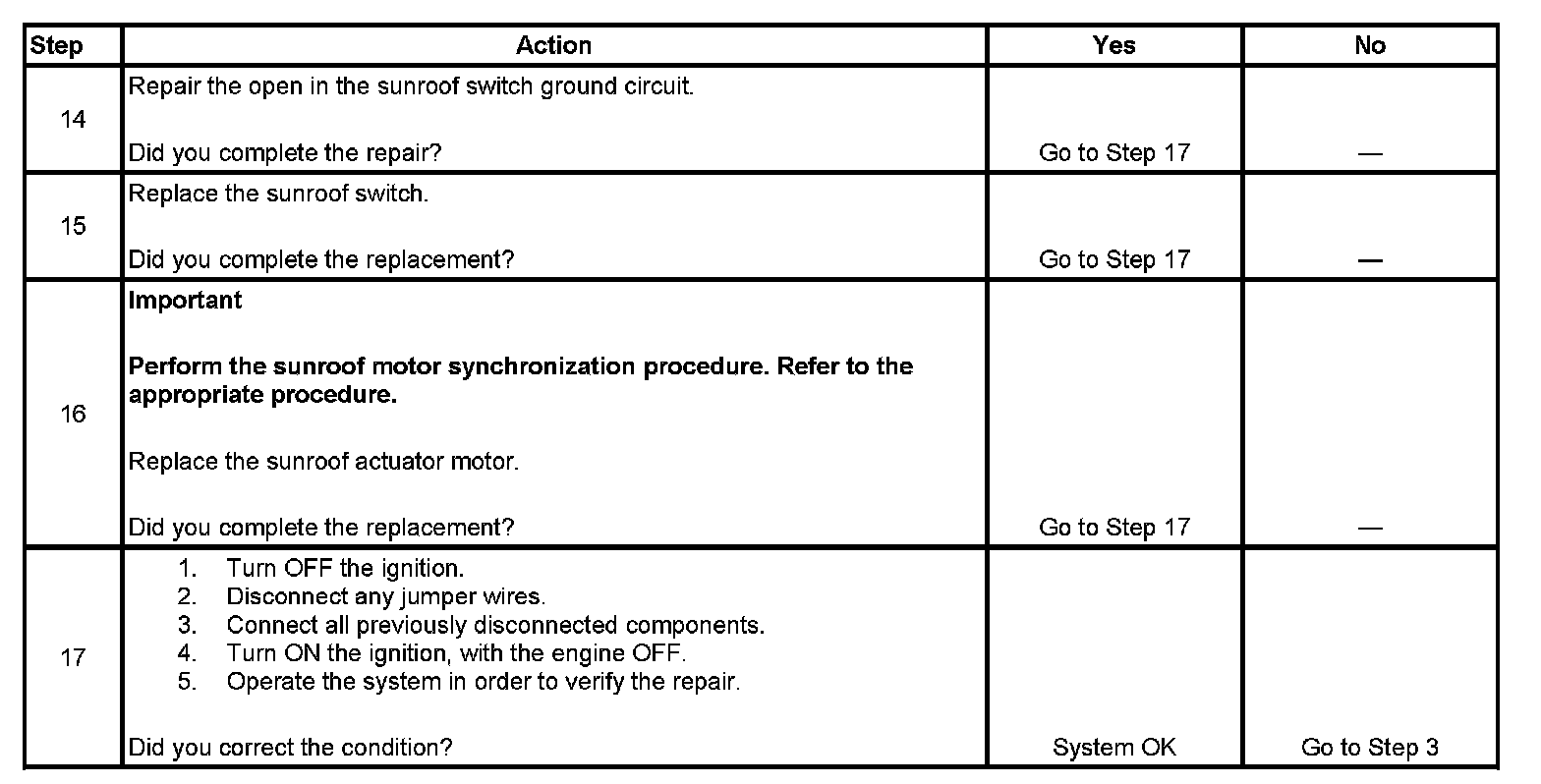

Steps 14 - 17:

The number below refers to the step number on the diagnostic table.
5. This step tests the integrity of the battery positive voltage circuit, not the fuse.
