Home >> Chevrolet >> 2005 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Rear Bumper Cover / Fascia >> Service and Repair >> Fascia, Fascia Energy Absorber, Impact Bar, Fascia Bracket Replacement - Rear (Chevy)

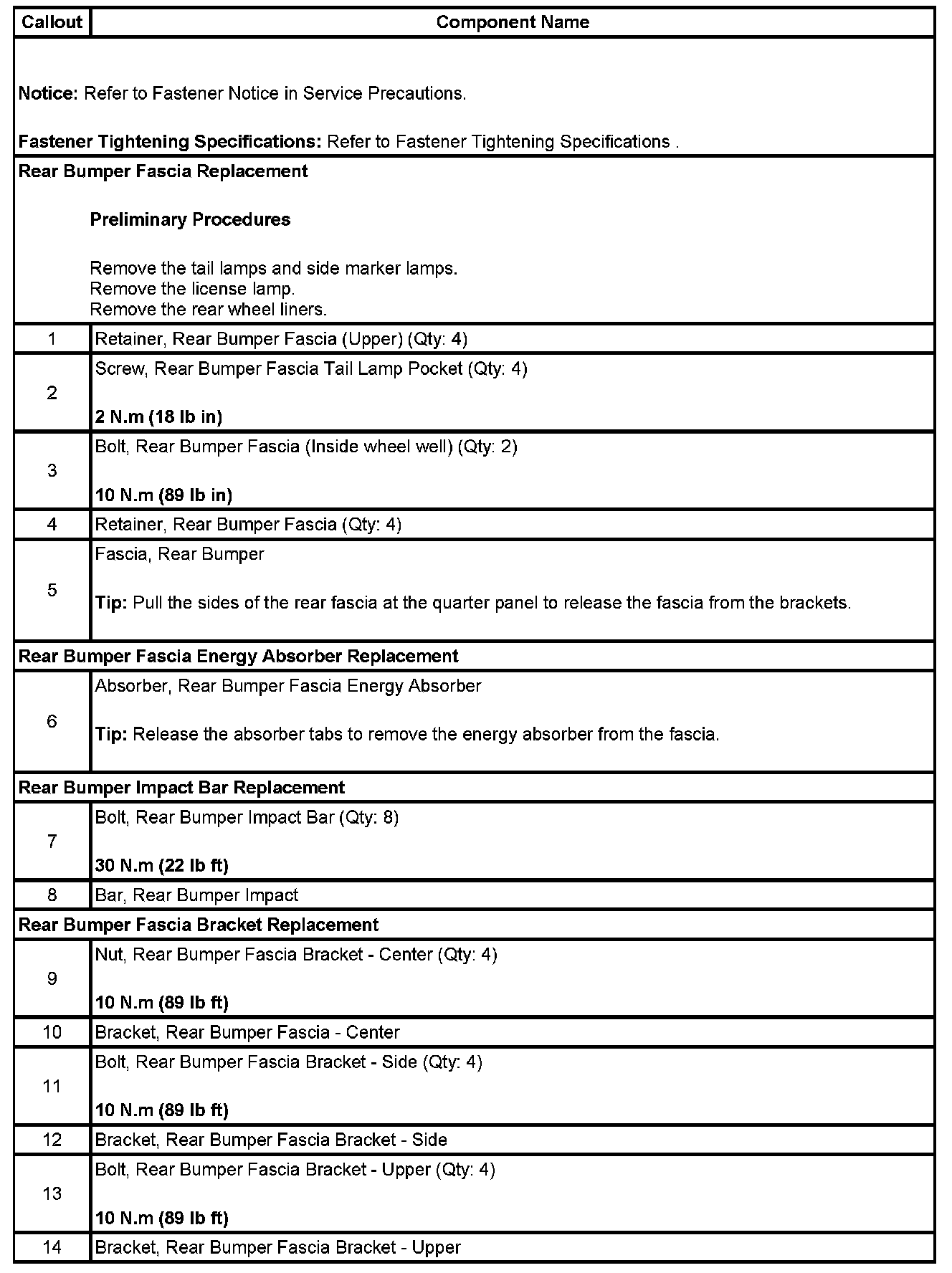

Fascia, Fascia Energy Absorber, Impact Bar, Fascia Bracket Replacement - Rear (Chevy)



Fascia, Fascia Energy Absorber, Impact Bar, Fascia Bracket Replacement - Rear (Chevy)
