P0622
DTC P0622
CIRCUIT DESCRIPTION
The engine control module (ECM)/powertrain control module (PCM) uses the generator field duty cycle signal circuit to monitor the duty cycle of the generator. The generator field duty cycle signal circuit connects to the high side of the field winding in the generator. A pulse width modulated (PWM) high side driver in the voltage regulator turns the field winding ON and OFF. The ECM/PCM uses the PWM signal input to determine the generator load on the engine. This allows the ECM/PCM to adjust the idle speed to compensate for high electrical loads.
The ECM/PCM monitors the state of the generator field duty cycle signal circuit. When the key is in the RUN position and the engine is OFF, the ECM/PCM should detect a duty cycle near 0 percent. However, when the engine is running, the duty cycle should be between 5-100 percent. The ECM/PCM monitors the PWM signal. If the ECM/PCM detects an out of range PWM signal, DTC P0622 will set. When the DTC sets, the ECM/PCM will send a serial data message to the instrument panel cluster (IPC) to illuminate the charge indicator.
DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC P0622 Generator F-Terminal Circuit
CONDITIONS FOR RUNNING THE DTC
Key ON Test
- No generator, crankshaft position (CKP) sensor, or camshaft position (CMP) sensor DTCs are set.
- The key is in the RUN position.
- The engine is not running.
Run Test
- No generator, CKP sensor, or CMP sensor DTCs are set.
- The engine speed is less than 3,000 RPM.
CONDITIONS FOR SETTING THE DTC
- During the key ON test, the ECM/PCM detects a PWM signal greater than 65 percent for at least 5 seconds.
OR
- During the RUN test, the ECM/PCM detects a PWM signal less than 5 percent for at least 15 seconds.
ACTION TAKEN WHEN THE DTC SETS
- The ECM/PCM sends a serial data message to the IPC to illuminate the charge indicator.
- The ECM/PCM will not illuminate the malfunction indicator lamp (MIL).
- The ECM/PCM will store the conditions present when the DTC set as Failure Records data only.
CONDITIONS FOR CLEARING THE MIL/DTC
- The history DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
- The DTC can be cleared by using the scan tool Clear DTC Information function.

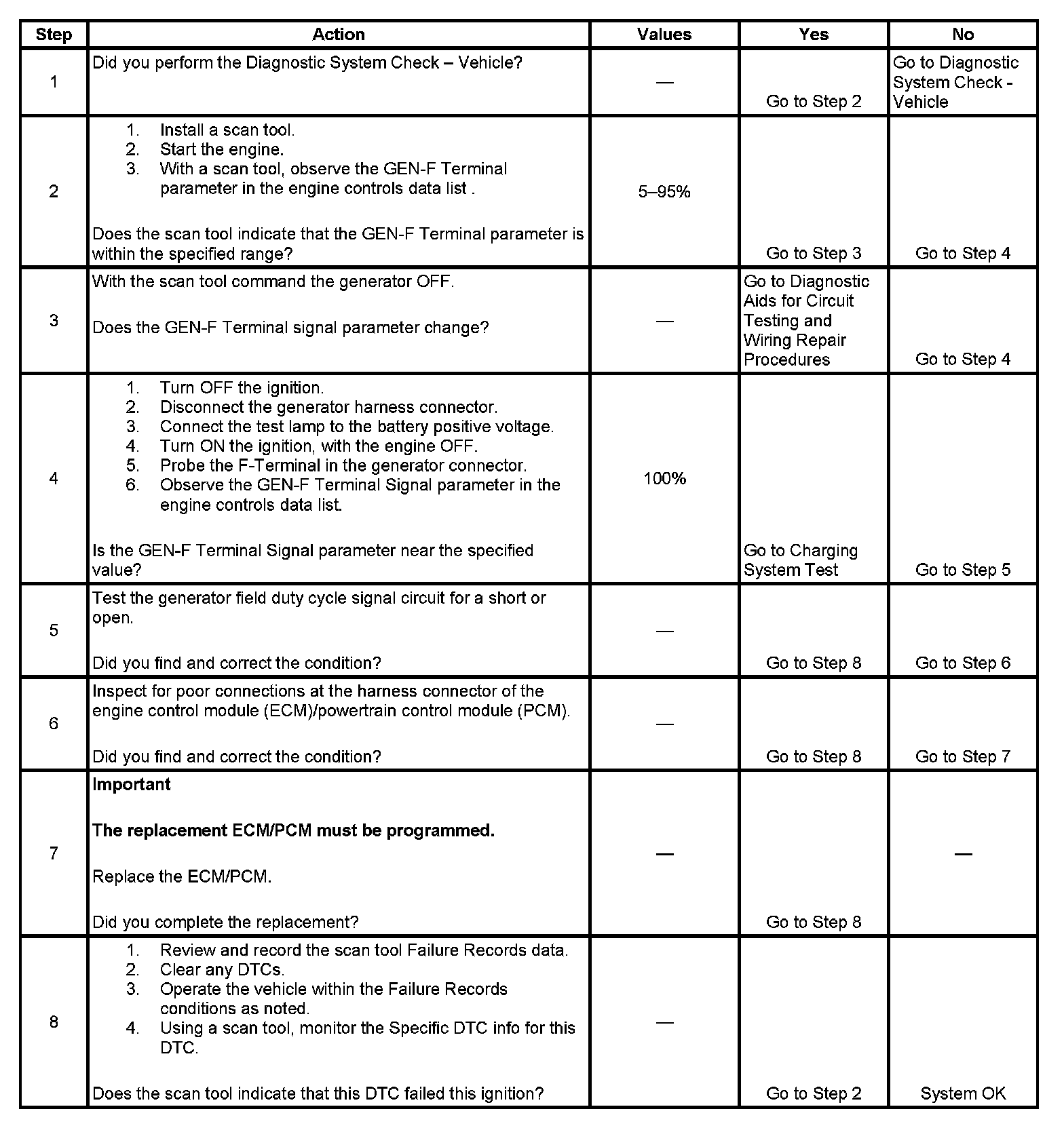

TEST
