B1516
DTC B1516
CIRCUIT DESCRIPTION
The battery current sensor pulse width modulation (PWM) input signal is monitored by the body control module (BCM) which sends a serial data message to the instrument panel cluster (IPC) when the PWM input signal is out of the normal operating range.
DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC B1516 Battery Current Sensor Performance

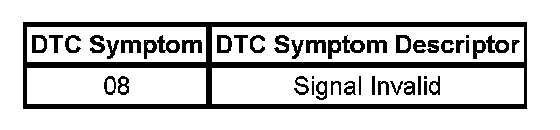

This vehicle has DTCs that include DTC symptoms. For more information on DTC symptoms, refer to DTC Symptom Description in Vehicle DTC Information. DTC Symptom Description
CONDITIONS FOR RUNNING THE DTC
- The key is in the ON position.
- The engine is running.
CONDITIONS FOR SETTING THE DTC
B1516 08
Sets as current when the duty cycle of the PWM input signal is less than 4 percent or more than 96 percent for more than 15 seconds.
ACTION TAKEN WHEN THE DTC SETS
The CHARGING SYSTEM FAILURE warning message will be set in the driver information center (DIC).
CONDITIONS FOR CLEARING THE MIL/DTC
The DTC clears as a current status when the battery sensed current returns to normal range for more than 15 seconds.

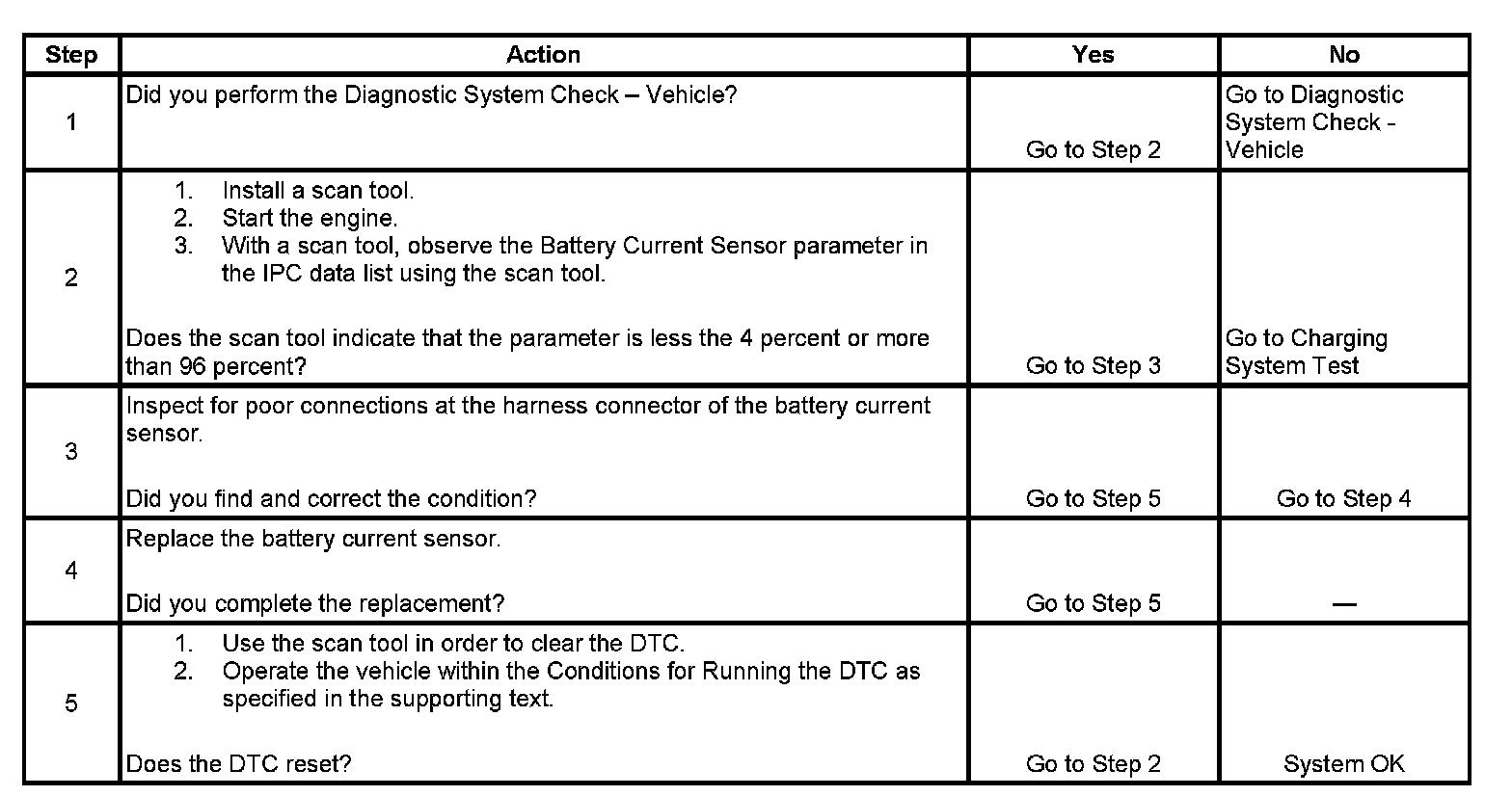

TEST
