Front Side Door Window Replacement

Front Side Door Window Replacement

Removal Procedure




1. Remove the door seal trim. Refer to Door Water Deflector Replacement Door Water Deflector Replacement.
2. Remove the center pillar molding. Refer to Center Pillar Applique Replacement Service and Repair in Exterior Trim.

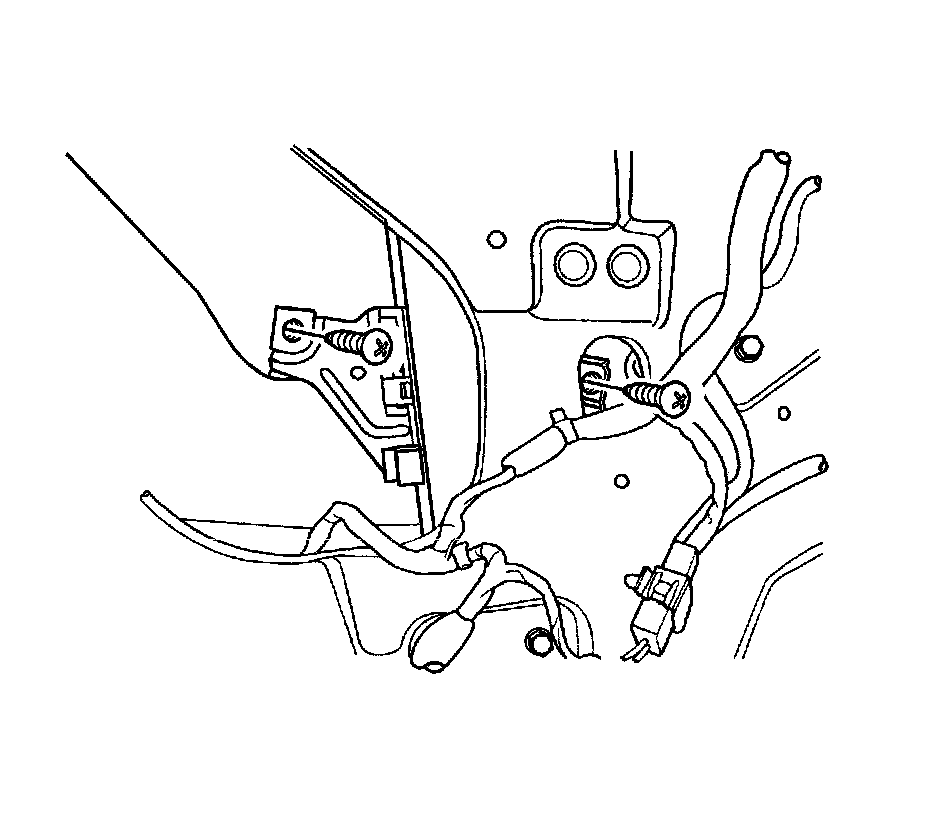

3. Remove the screws that secure the glass to the window regulator.
4. Remove the glass from the door.

Installation Procedure




1. Install the glass in the door and position the glass within the window regulator.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the glass to the window regulator with the screws.

Tighten the glass screws to 7 Nm (62 lb in).

3. Install the center pillar molding. Refer to Center Pillar Applique Replacement Service and Repair in Exterior Trim.
4. Install the door seal trim. Refer to Door Water Deflector Replacement Door Water Deflector Replacement.
