6. Bearing Plate Assembly Installation




Bearing Plate Assembly Installation





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

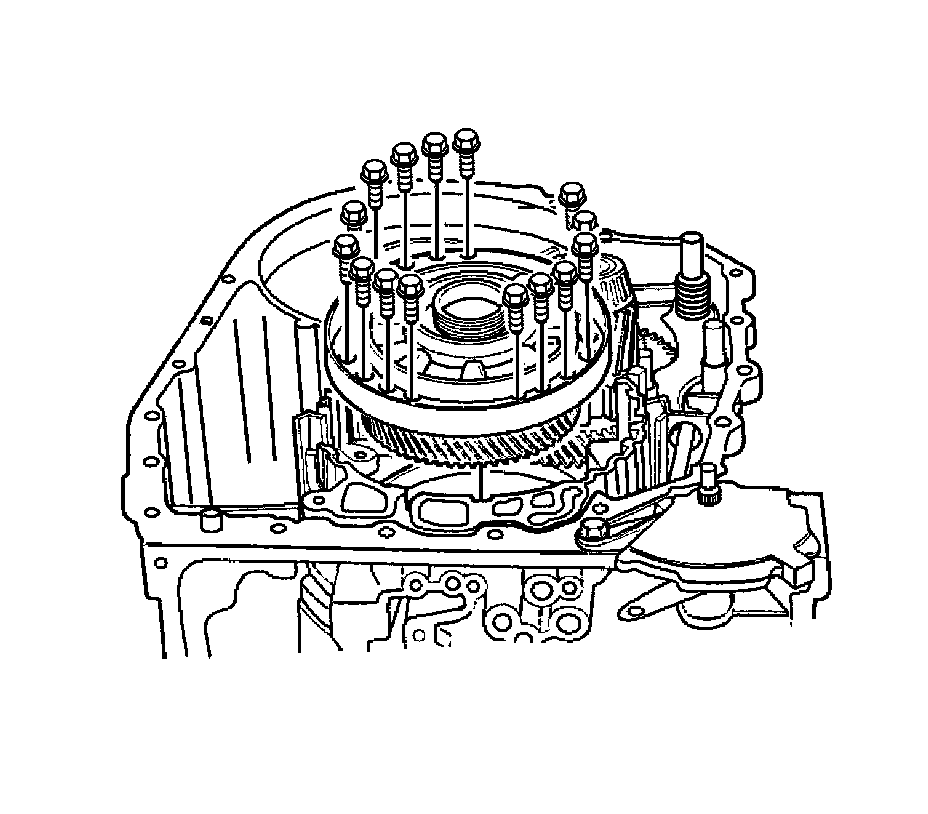

1. Install the bearing plate and install the bearing plate bolts.

Tighten the bolts to 27 Nm (17 lb ft).

2. Install the piston F. Refer to Brake F, Slotted Nut Installation 15. Brake F, Slotted Nut Installation.
