16. Transmission Holding Fixture Assemble

Transmission Holding Fixture Assemble

Tools Required

DT 46468 (DW260-020) Auto Transaxle Holding Fixture





Caution: To reduce the possibility of personal injury or transmission damage install and tighten the support fixture bolts.

Caution: Refer to Safety Glasses Caution Safety Glasses Caution in Cautions and Notices.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

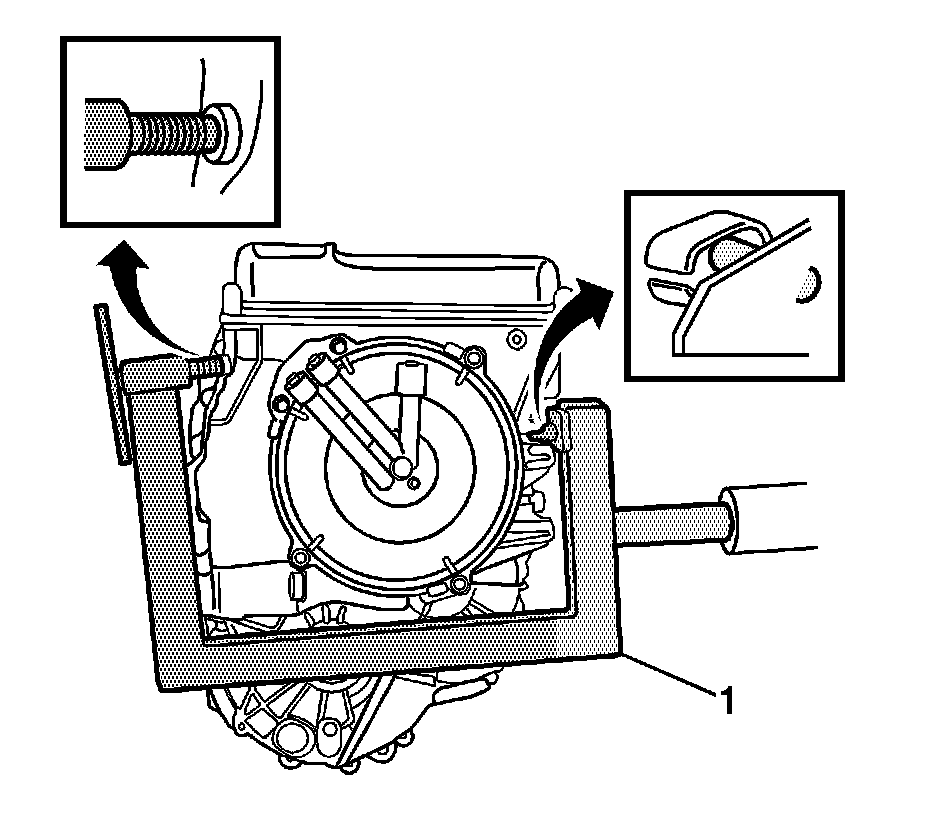

1. Install DT 46468 (1) onto the transaxle.

Tighten the bolts to 11 Nm (98 lb in).

2. Position the transaxle with the rear cover facing up.
