Inflatable Restraint Side Impact Sensor Replacement (1.6/1.8L)

Inflatable Restraint Side Impact Sensor Replacement (1.6/1.8L)

Removal Procedure





Caution: Refer to Sensing and Diagnostic Module Voltage after Ignition is Turned Off Caution Sensing and Diagnostic Module Voltage after Ignition is Turned Off Caution in Cautions and Notices.

Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the trim from the center pillar.

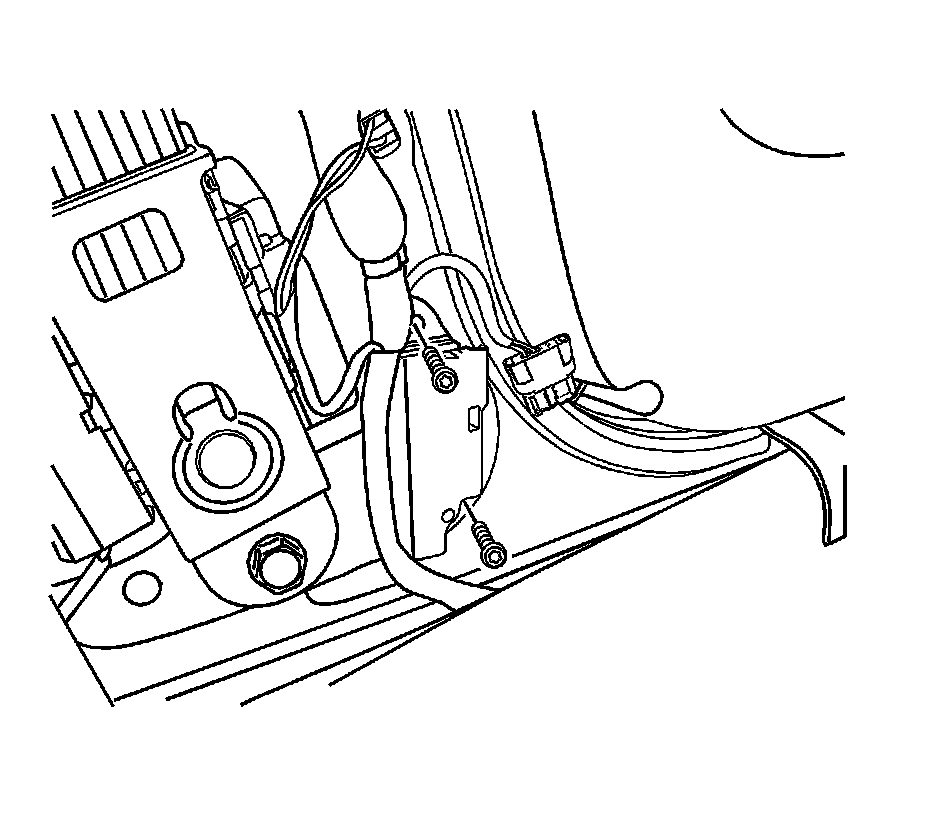

3. Remove the side air bag sensor mounting bolts.
4. Remove the side air bag sensor.

Installation Procedure




1. Install the side air bag sensor.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the side air bag sensor mounting bolts.

Tighten the side air bag sensor mounting bolts to 8 Nm (71 lb in).

3. Install the trim to the center pillar.
4. Connect the negative battery cable.
