SIR Schematics




SIR Schematics

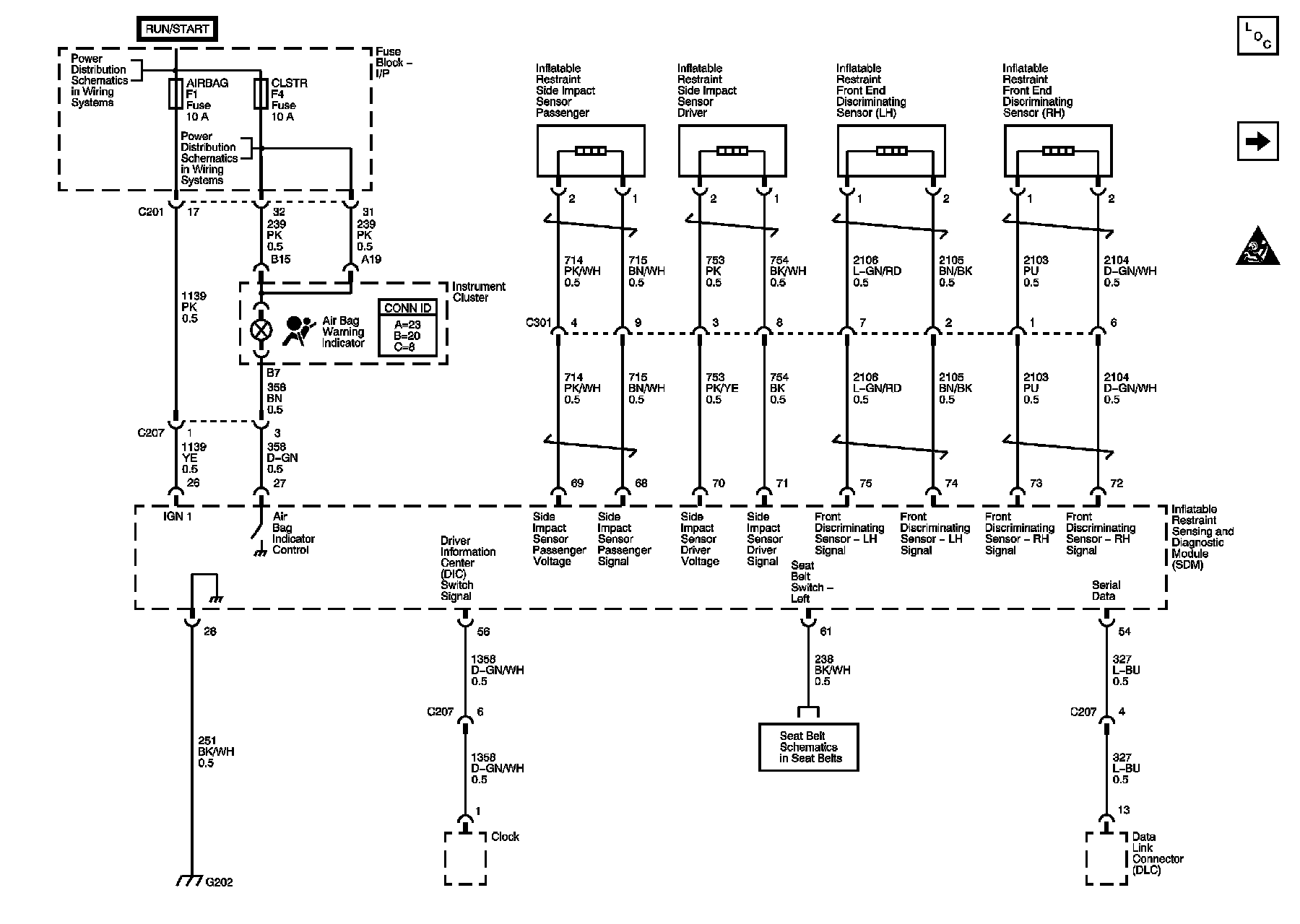

Power, Ground, DLC, Side Impact Sensors, Front Discriminating Sensors (Dual Firing)

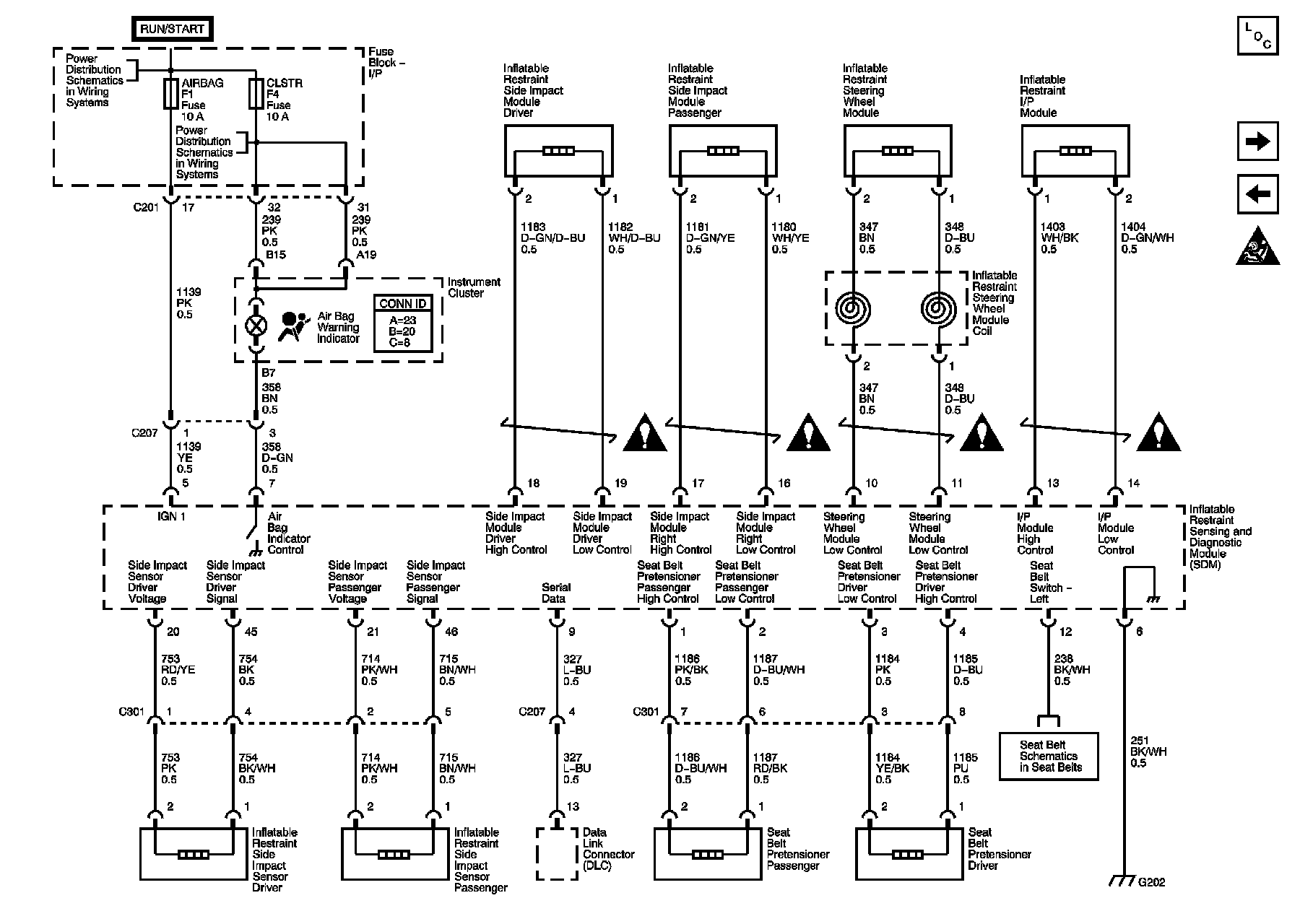

Pretensioners, Driver and Passenger Modules, Left and Right Side Modules

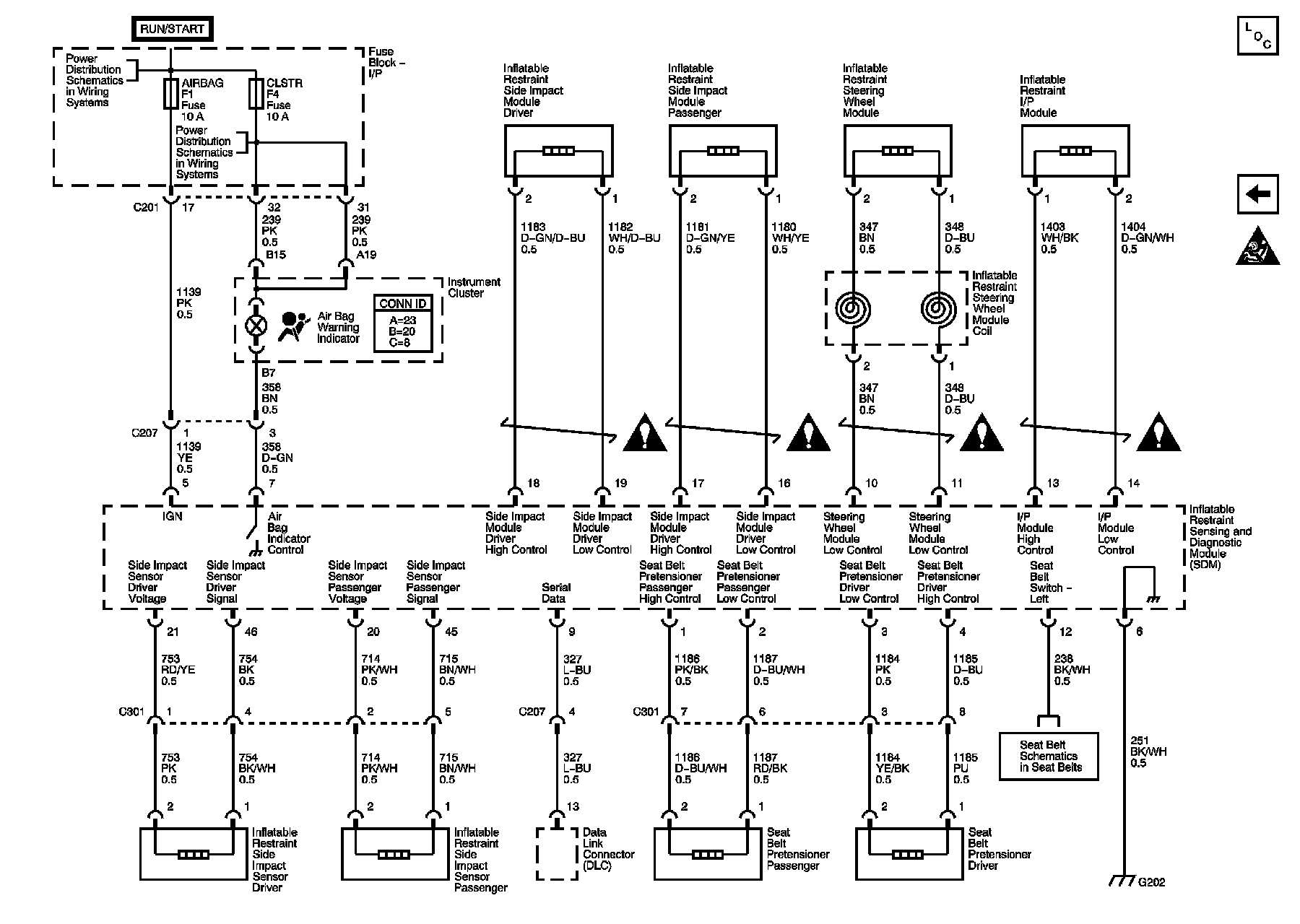

Power, Ground, DLC, Side Impact Sensors, Front Discriminating Sensors, Pretensioners, Driver and Passenger Modules, Left and Right Side Modules LHD (Single Firing)

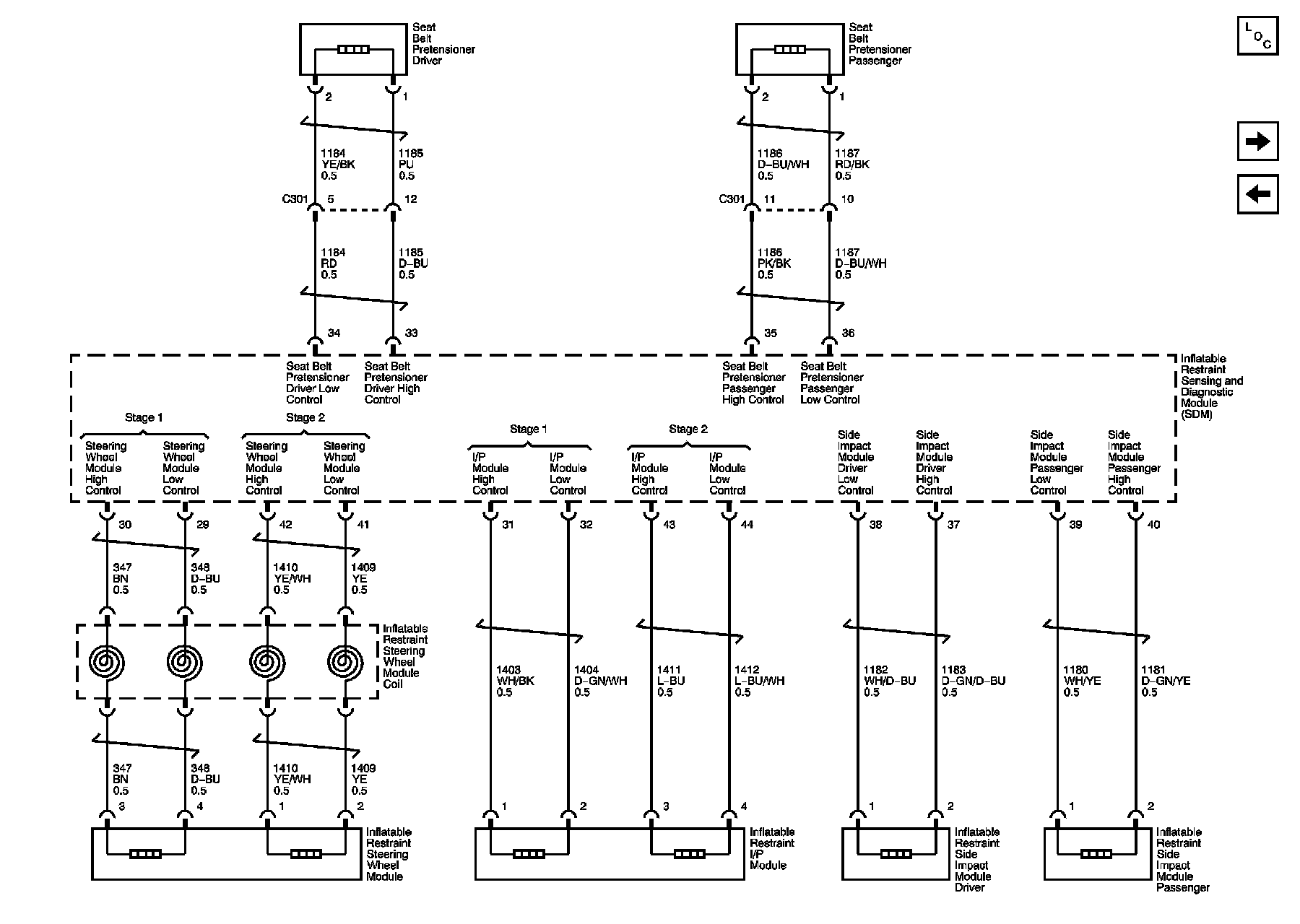

Power, Ground, DLC, Side Impact Sensors, Front Discriminating Sensors, Pretensioners, Driver and Passenger Modules, Left and Right Side Modules RHD (Single Firing)
