Daytime Running Lamp Control Unit: Service and Repair

Daytime Running Lights (DRL) Control Module Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the instrument panel under cover.

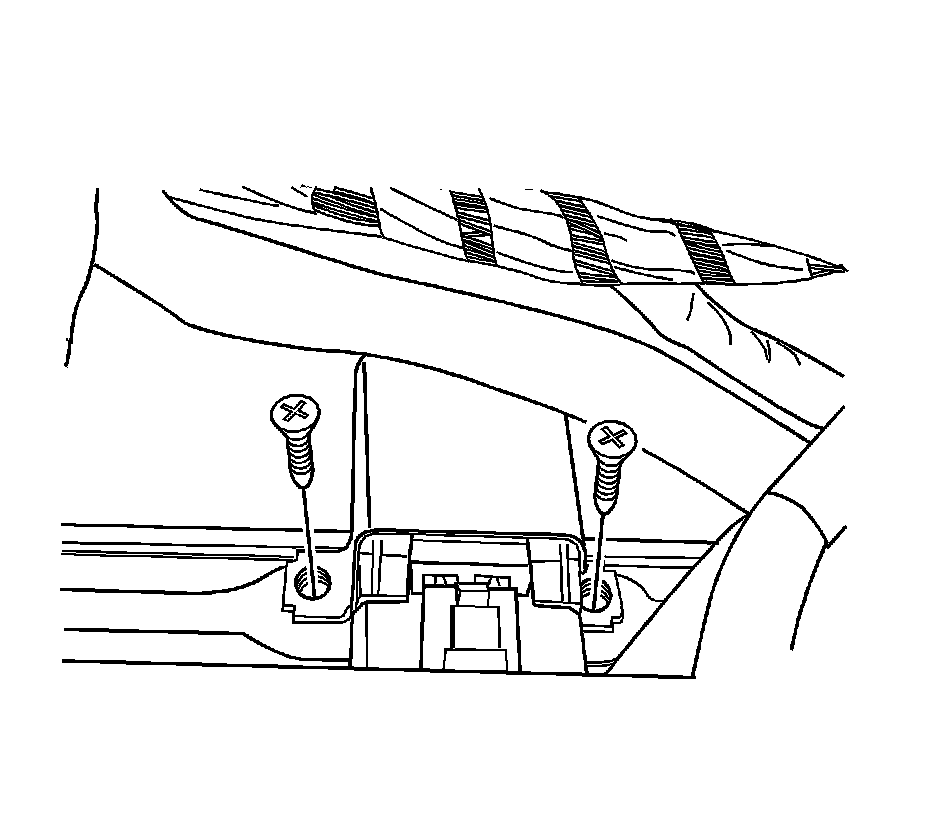

3. Remove the bolts and the daytime running lamp module.
4. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the daytime running lamp module with the bolts.

Tighten the daytime running lamp module bolts to 2 Nm (18 lb in).

3. Install the instrument panel under cover.
4. Connect the negative battery cable.
