Aisin 81-40LE - Automatic Transmission




Automatic Transmission Controls Schematics

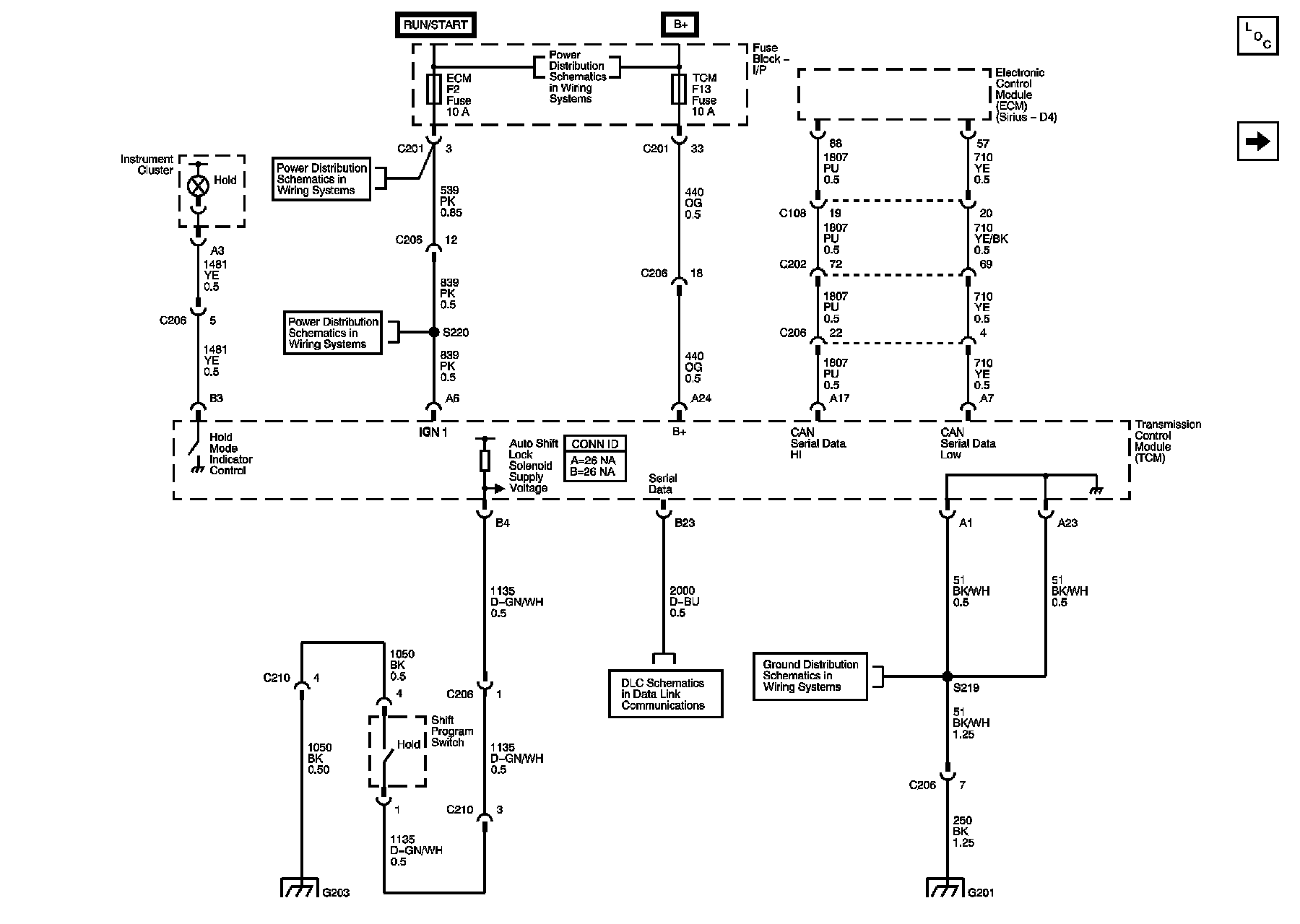

Module Power, Ground, Malfunction Indicator Lamp (MIL), Hold Lamp and Seral Data

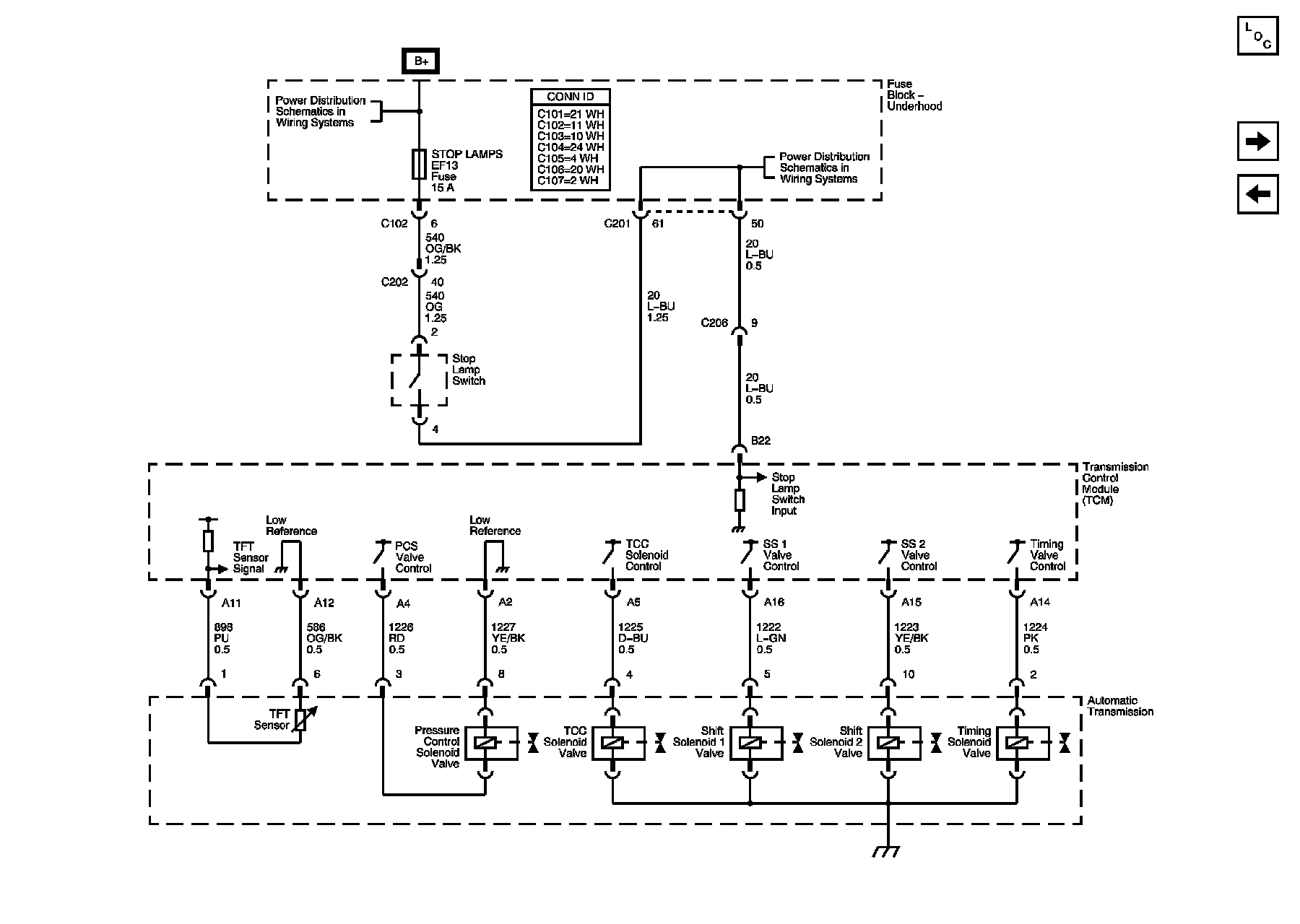

Torque Converter Clutch (TCC) and Transmission Solenoids

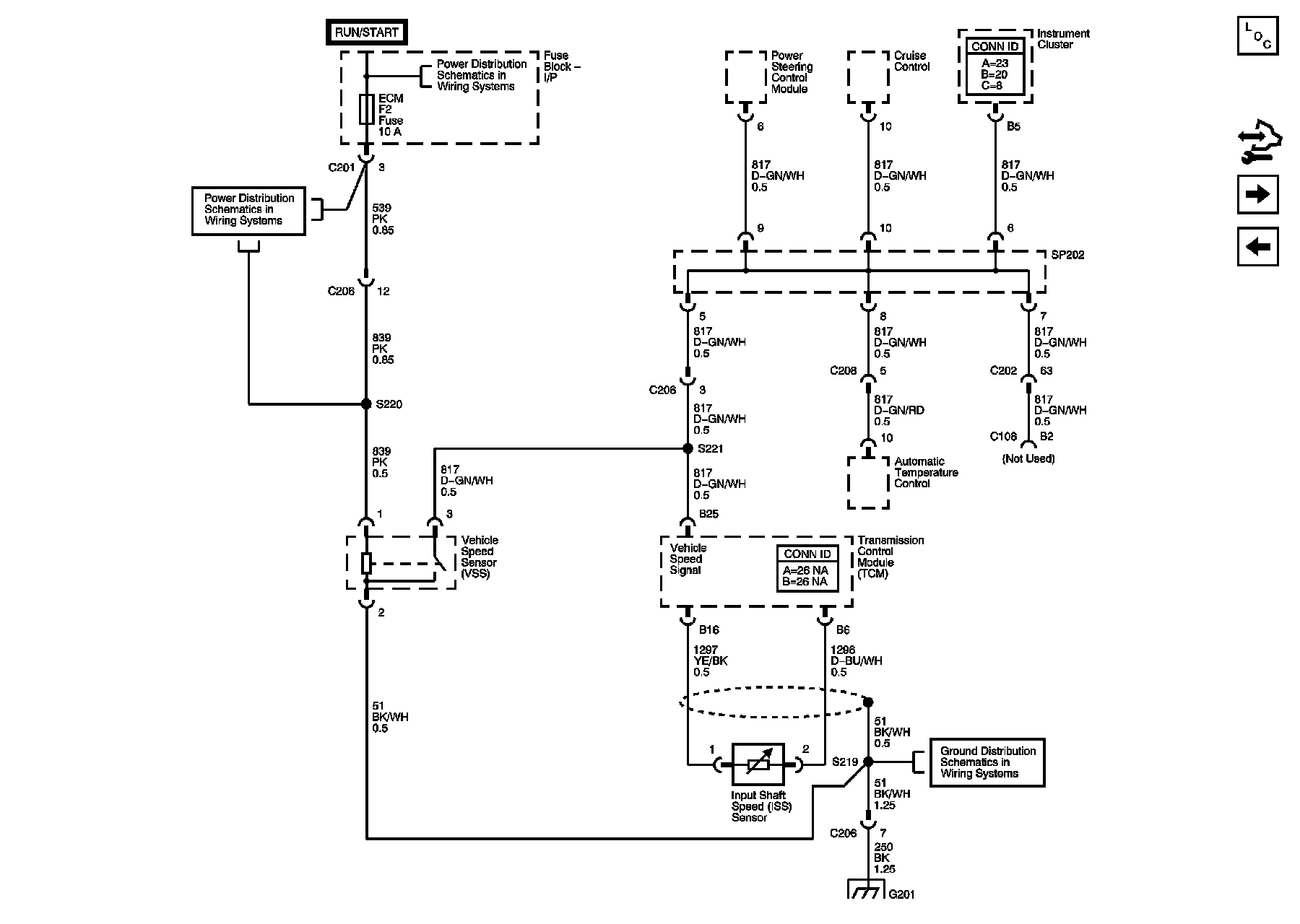

Vehicle Speed and Input Speed Sensors

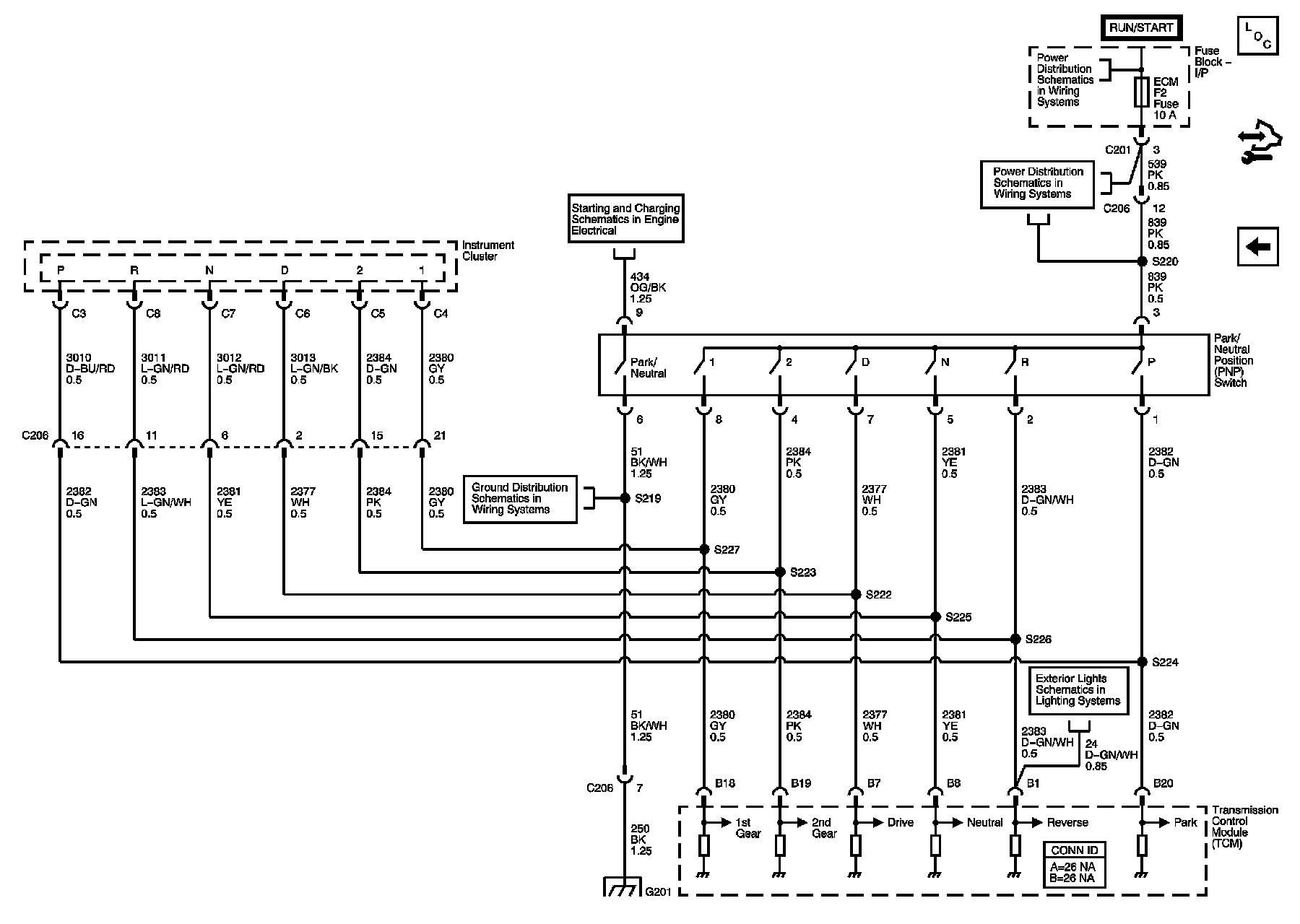

Park/Neutral Position (PNP) Switch
