Engine Controls Schematics
Engine Controls Schematics

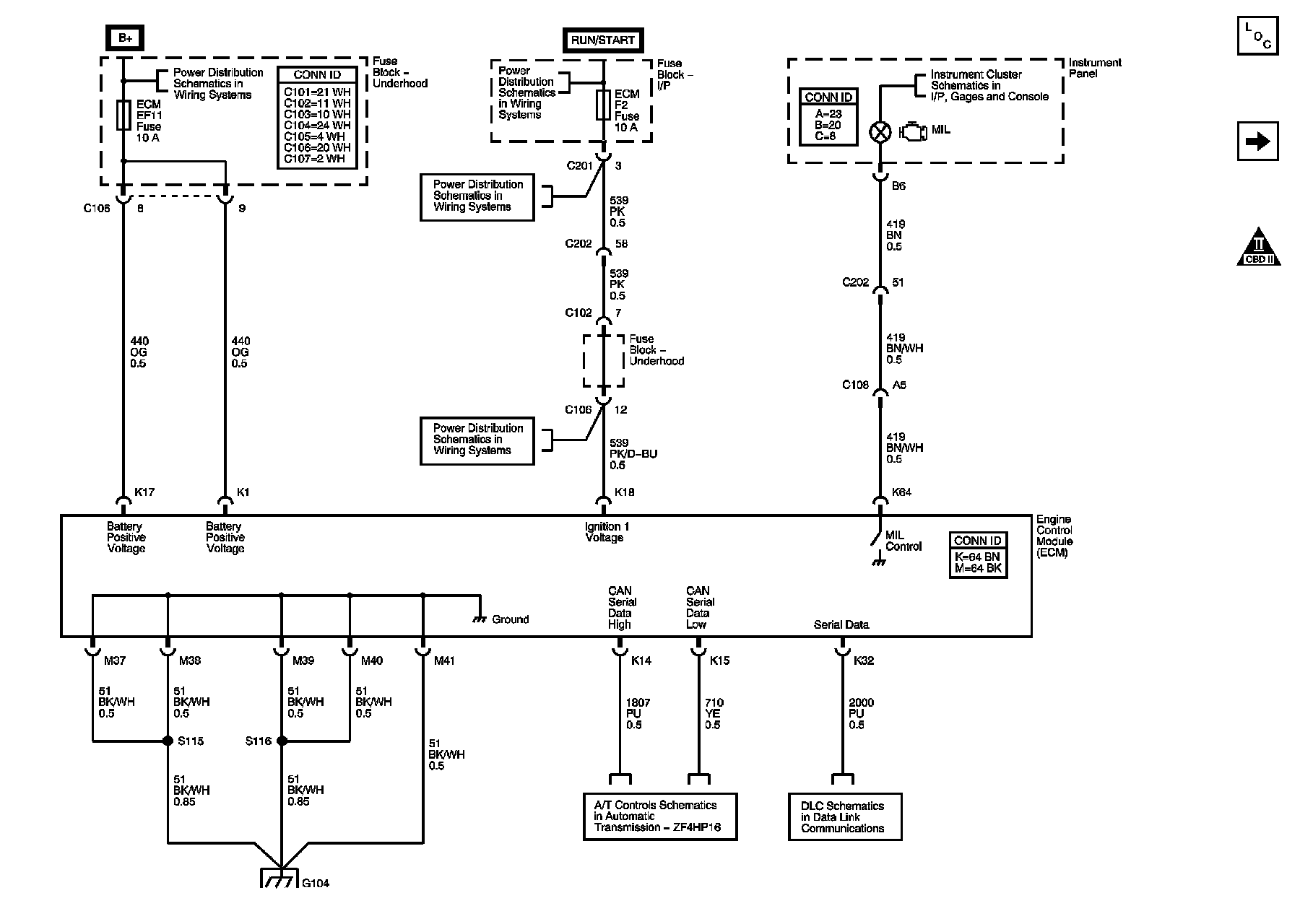

Module Power, Ground, Serial Data, Malfunction Indicator Lamp (MIL)
Engine Data Sensors - Pressure And Temperature

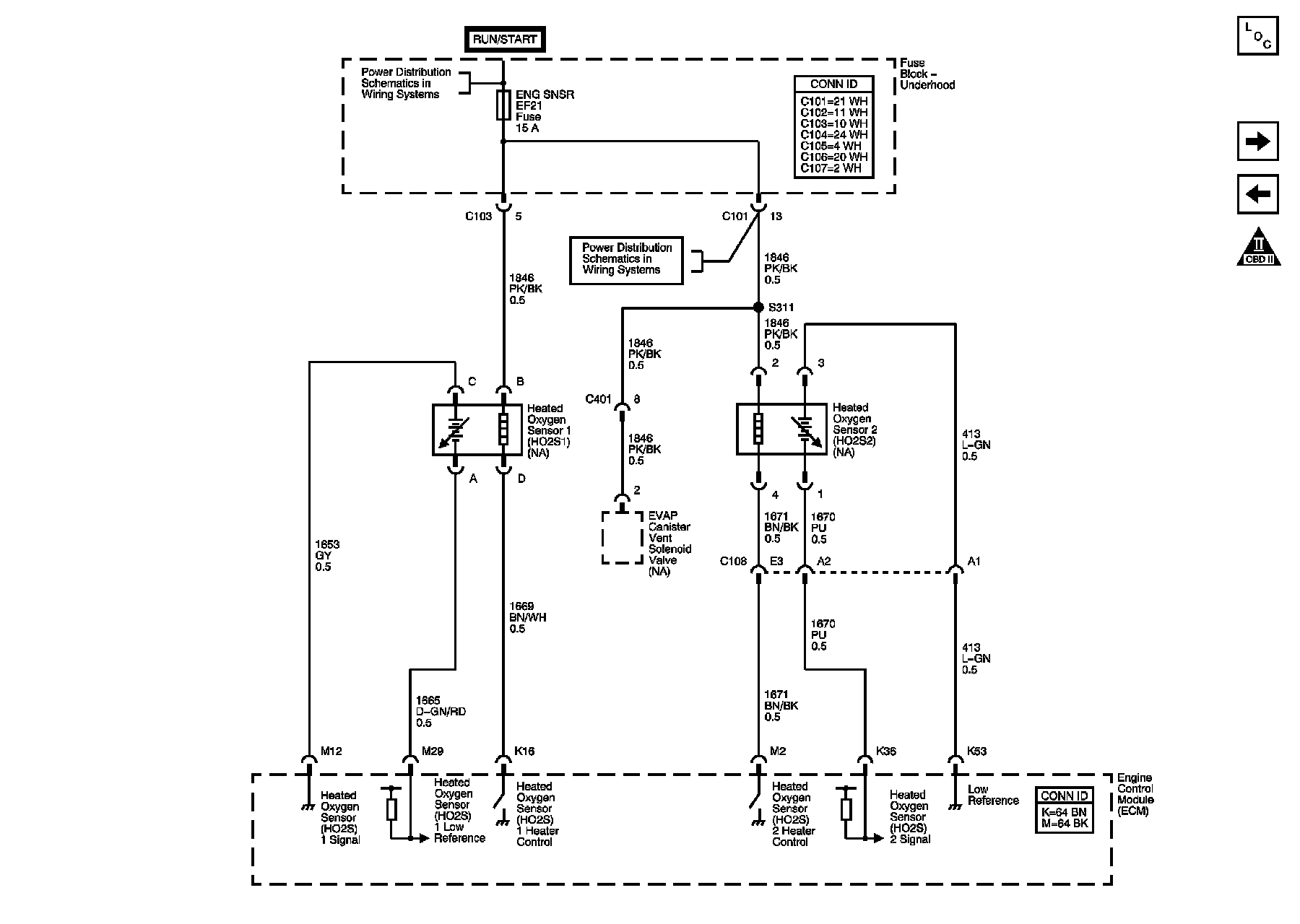

Engine Data Sensors - Oxygen Sensors (O2S)
Ignition Controls - Ignition System

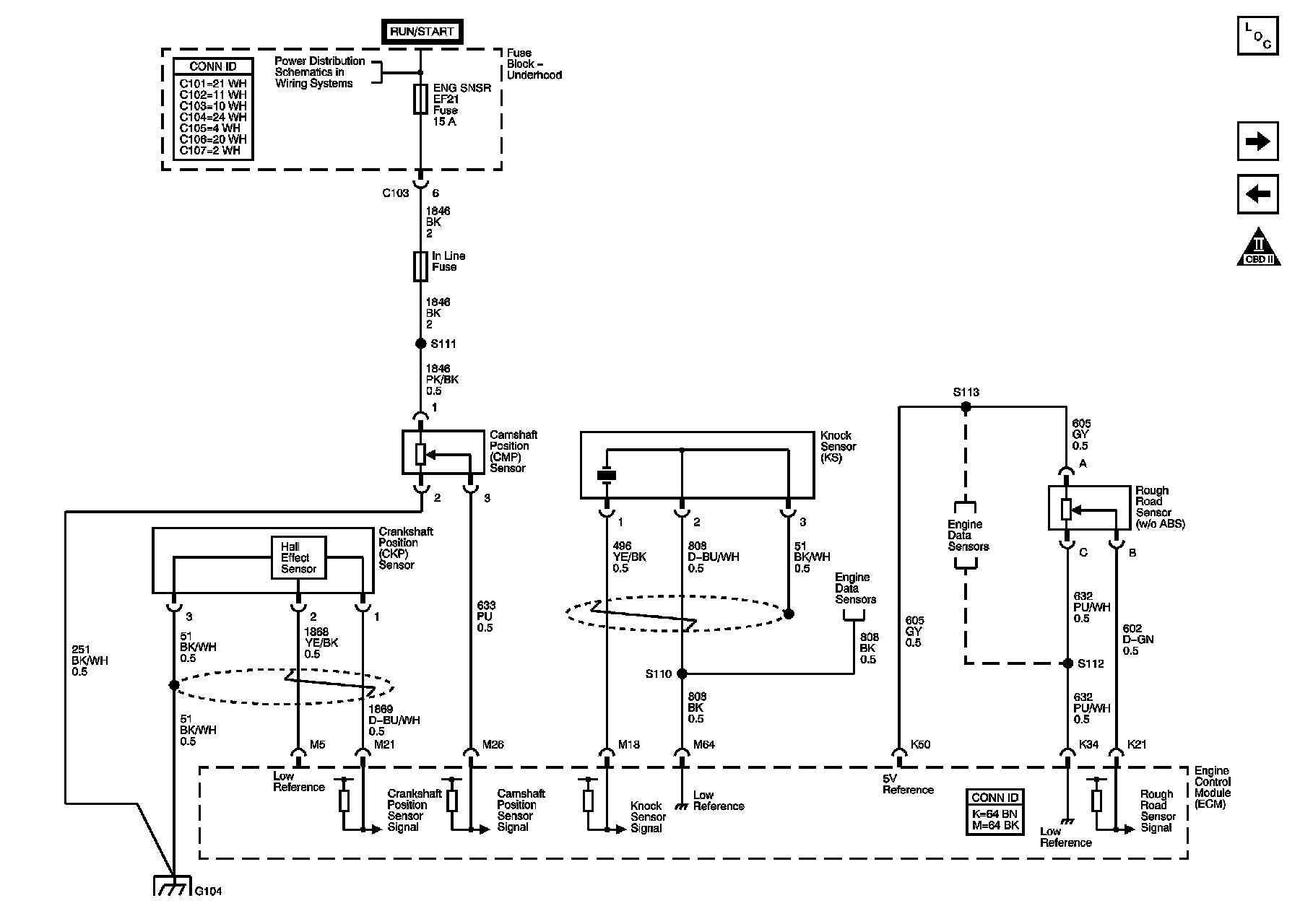

Ignition Controls - Sensors

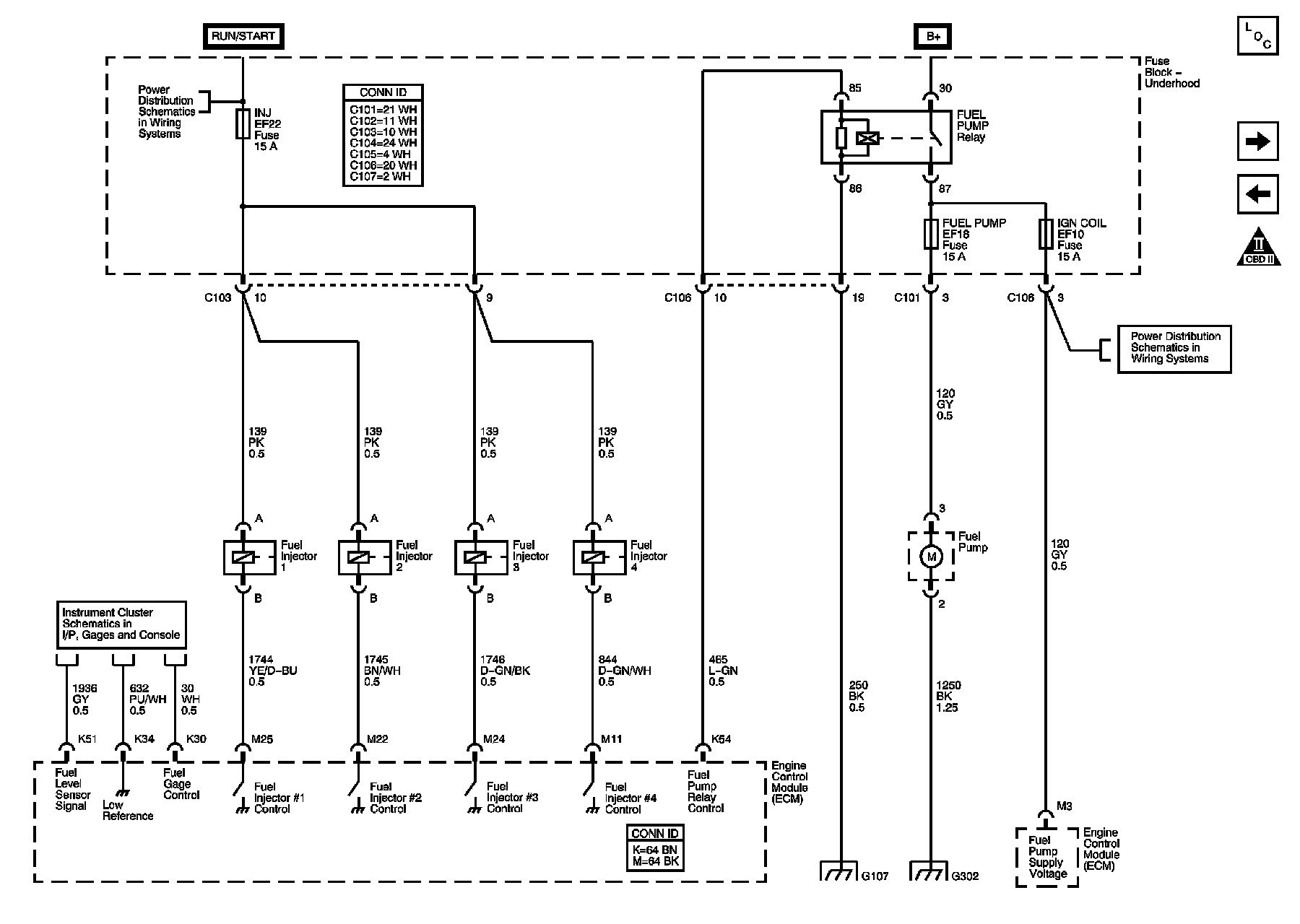

Fuel Controls - Fuel Pump Controls And Fuel Injectors

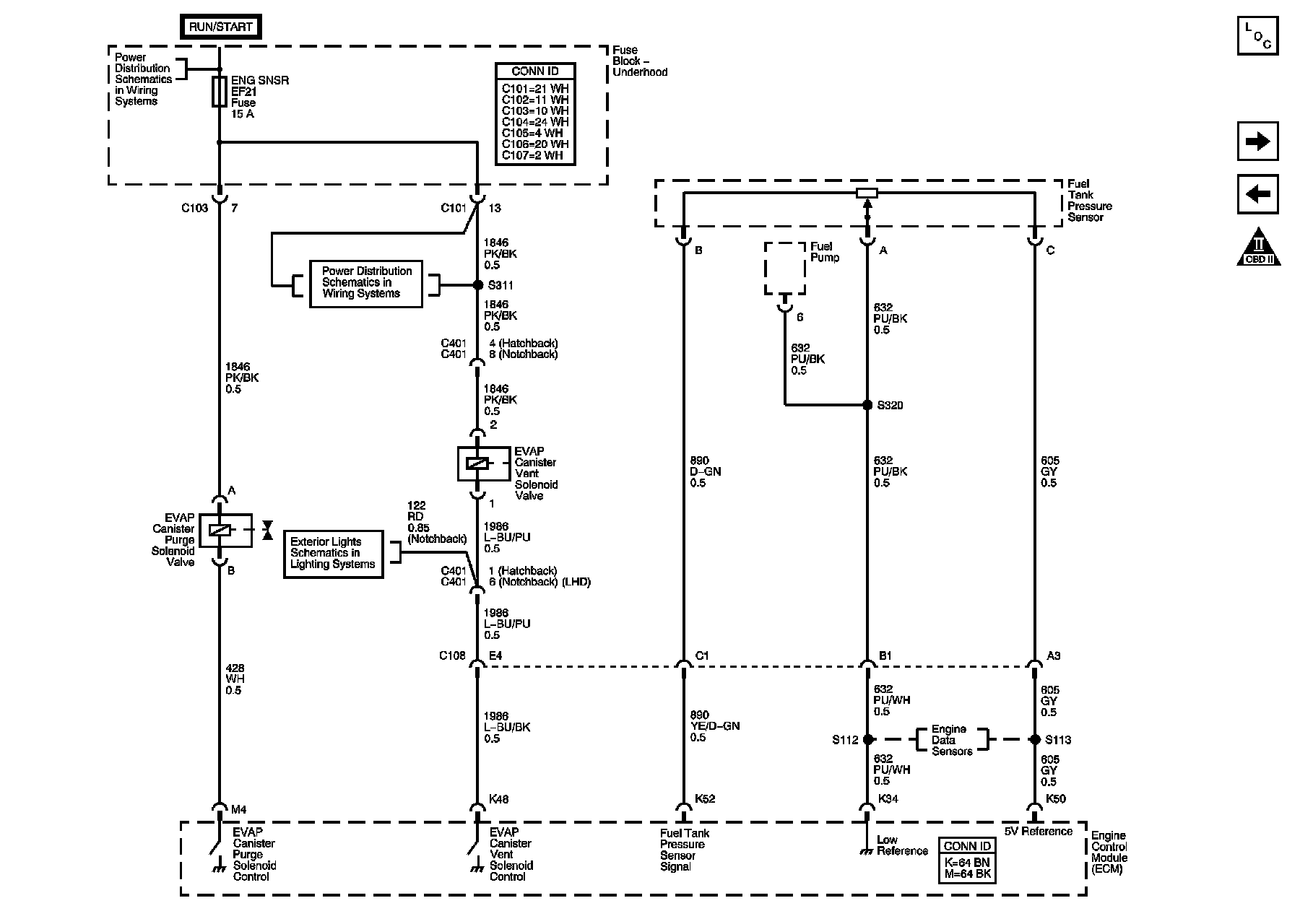

Fuel Controls - EVAP Controls

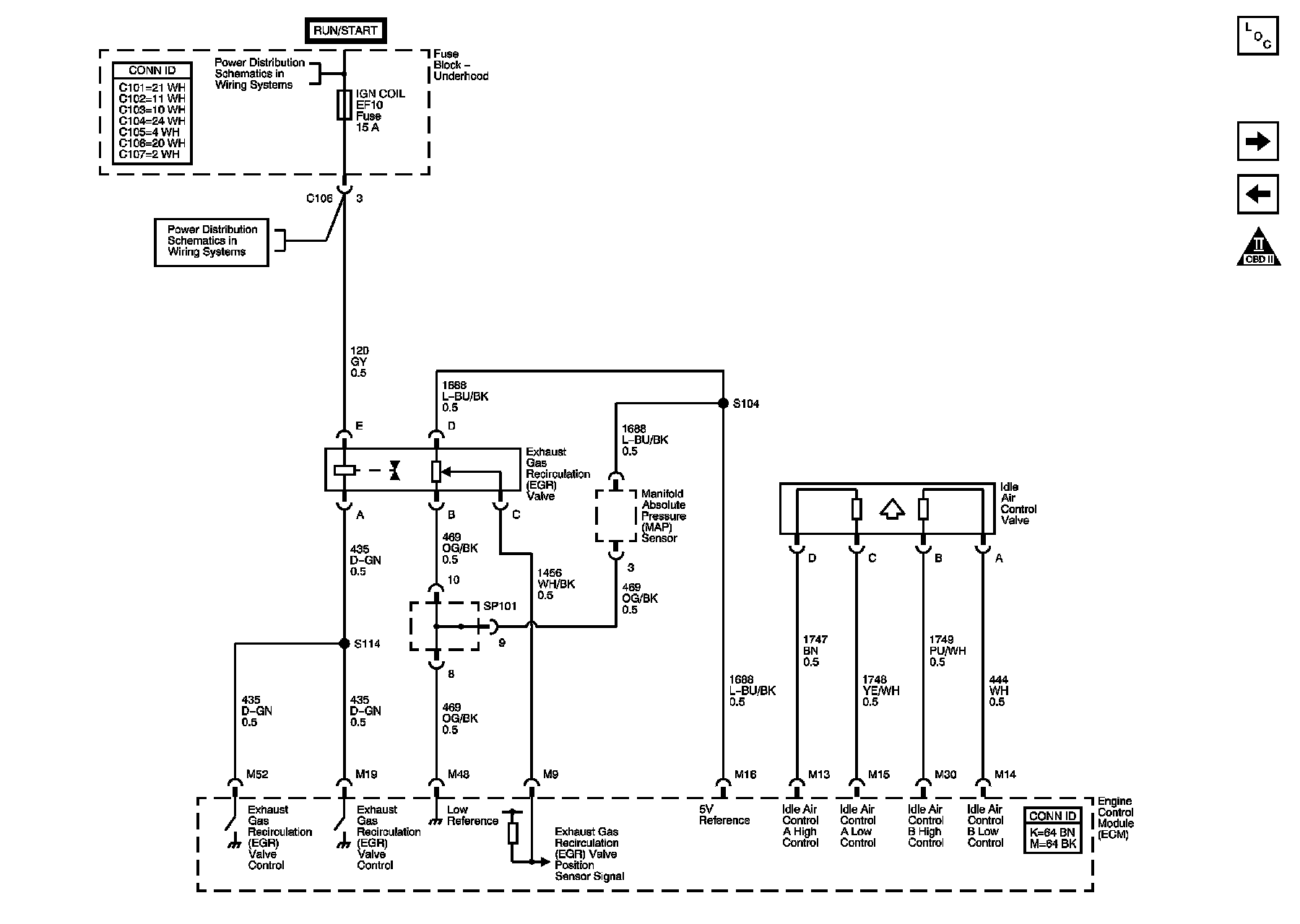

Device Controls

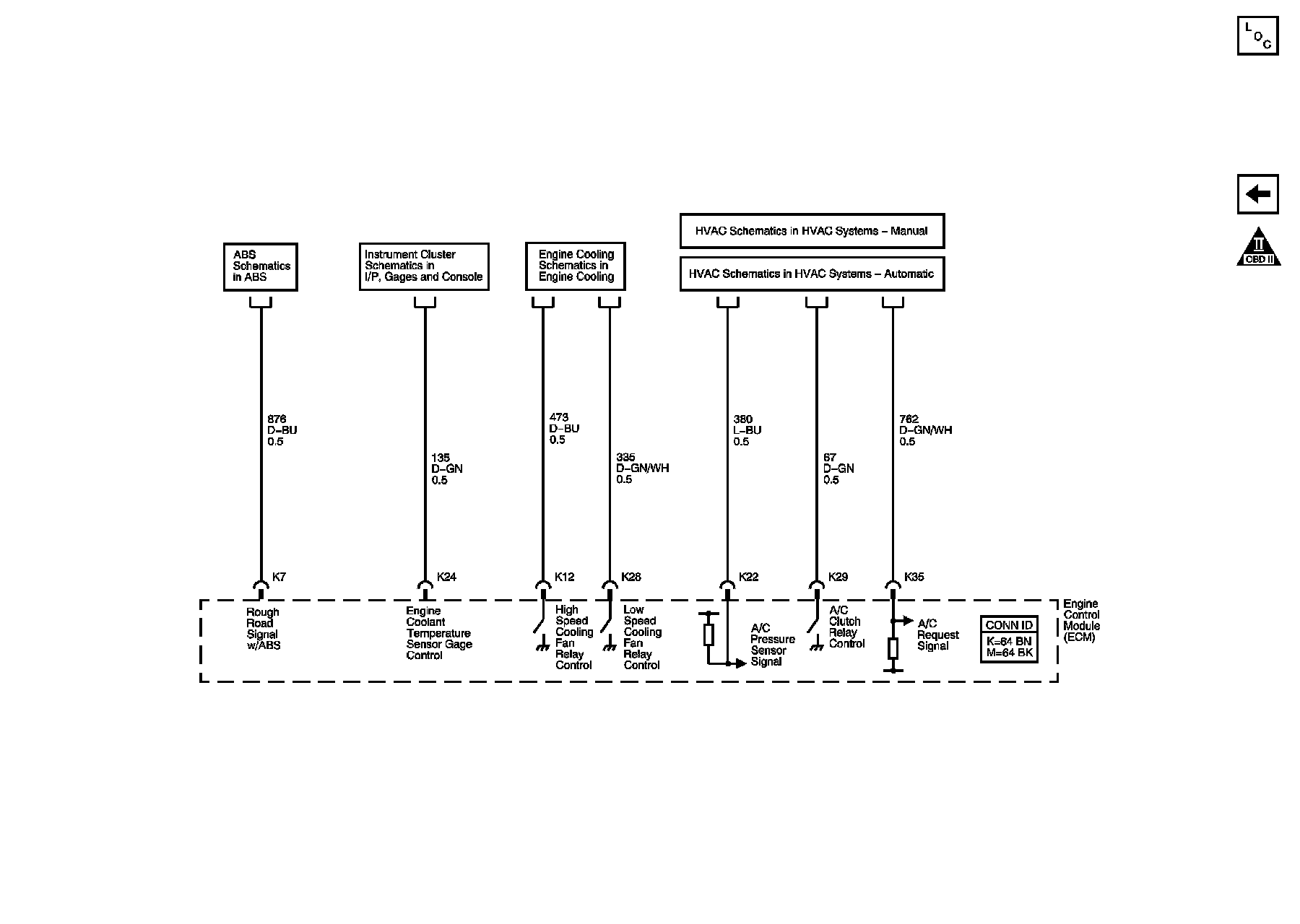

Controlled/Monitored Subsystem References
