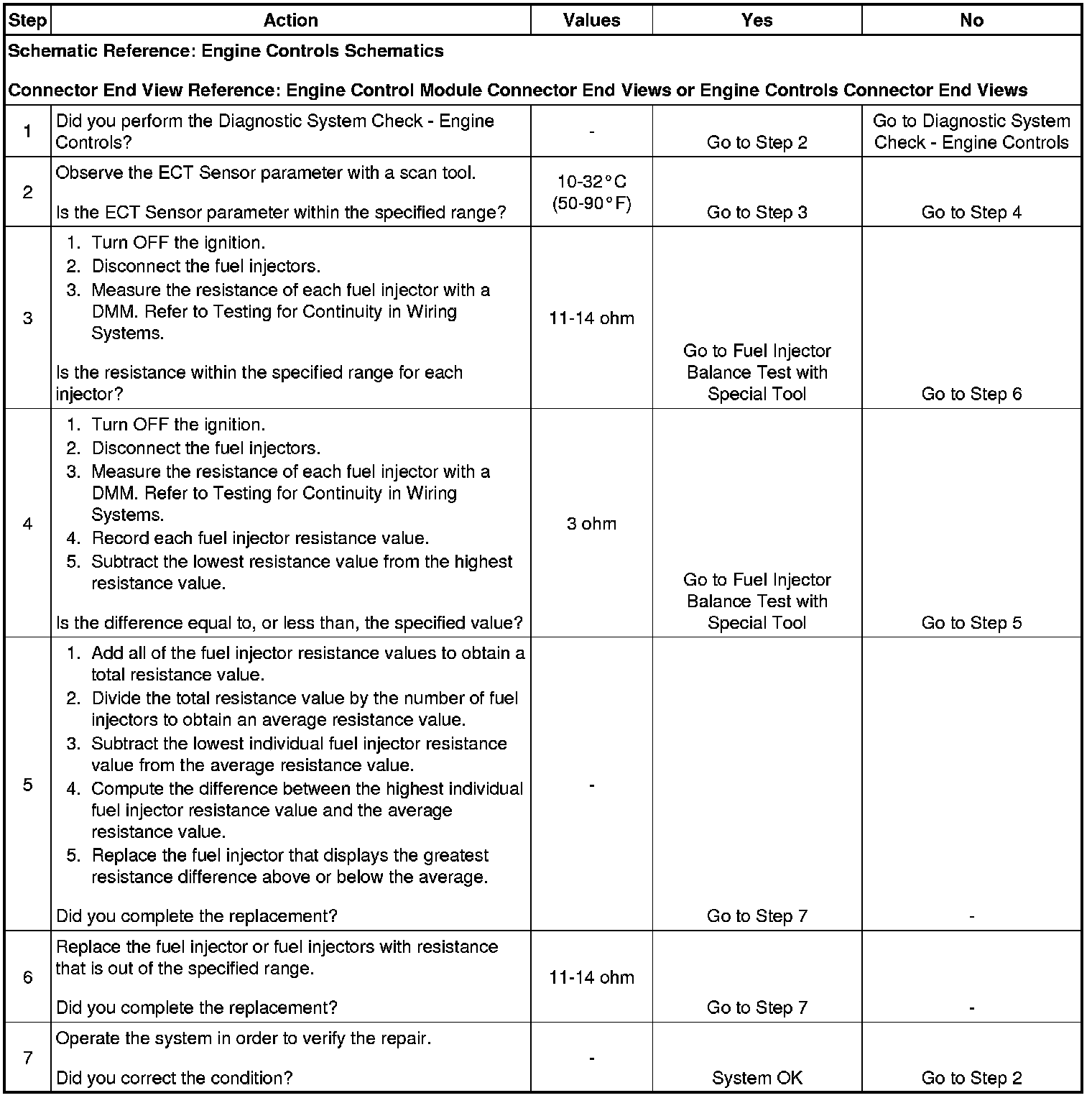

Fuel Injector Solenoid Coil Test

Fuel Injector Solenoid Coil Test

Circuit Description

The engine control module (ECM) enables the appropriate fuel injector pulse for each cylinder. Ignition voltage is supplied directly to the fuel injectors. The ECM controls each fuel injector by grounding the control circuit via a solid state device called a driver. A fuel injector coil winding resistance that is too high or too low will affect engine driveability. A fuel injector control circuit DTC may not set, but a misfire may be apparent. The fuel injector coil windings are affected by temperature. The resistance of the fuel injector coil windings will increase as the temperature of the fuel injector increases.

Diagnostic Aids

* Monitoring the misfire current counters may help to isolate the fuel injector that is causing the condition.
* Operating the vehicle over a wide temperature range may help isolate the fuel injector that is causing the condition.
* Perform the fuel injector coil test within the conditions of the customer's concern. A fuel injector condition may only be apparent at a certain temperature, or under certain conditions.
