Headlamp: Service and Repair

Headlamp Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

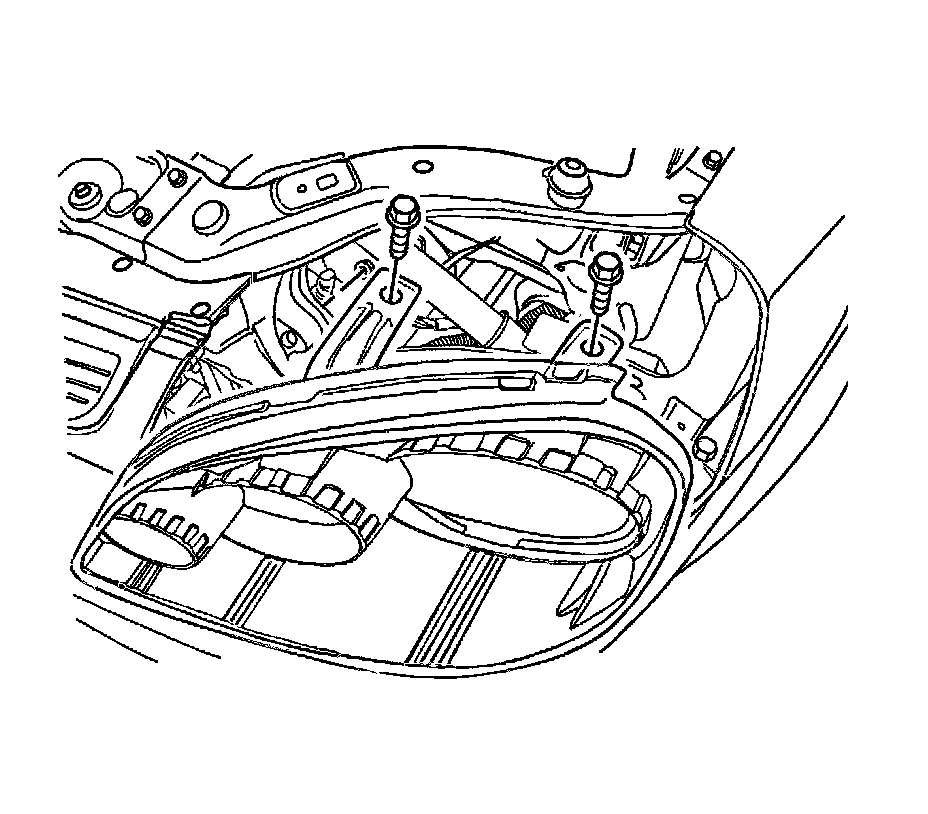

2. Remove the headlamp mounting bolts and nut.




3. Disconnect the electrical connectors.
4. Remove the turn signal bulb.
5. Remove the headlamp assembly.

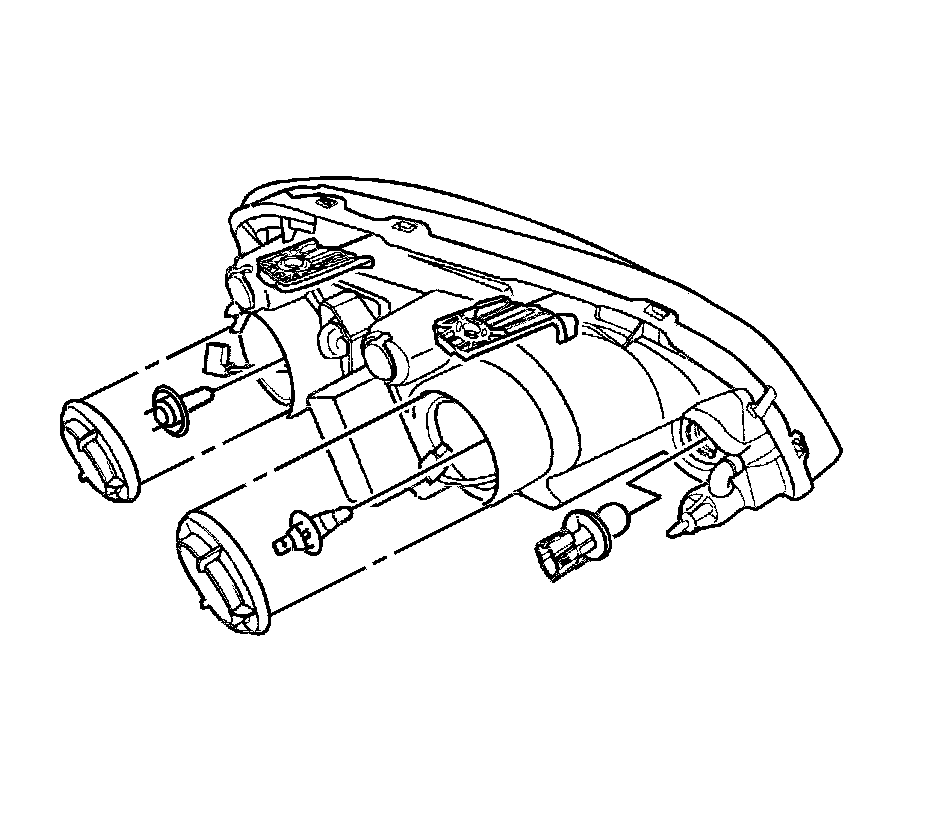

6. Remove the cap concealing the headlamp bulb.
7. Disconnect the headlamp bulb electrical connector.
8. Remove the headlamp bulb.

Installation Procedure




1. Install the headlamp bulb.
2. Connect the headlamp bulb electrical connector.
3. Install the cap concealing the headlamp bulb.
4. Install the turn signal bulb.
5. Connect the electrical connectors.





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

6. Install the headlamp assembly with the bolts and nut.

Tighten the headlamp assembly bolts and nut to 4 Nm (35 lb in).

7. Connect the negative battery cable.
