Suspension

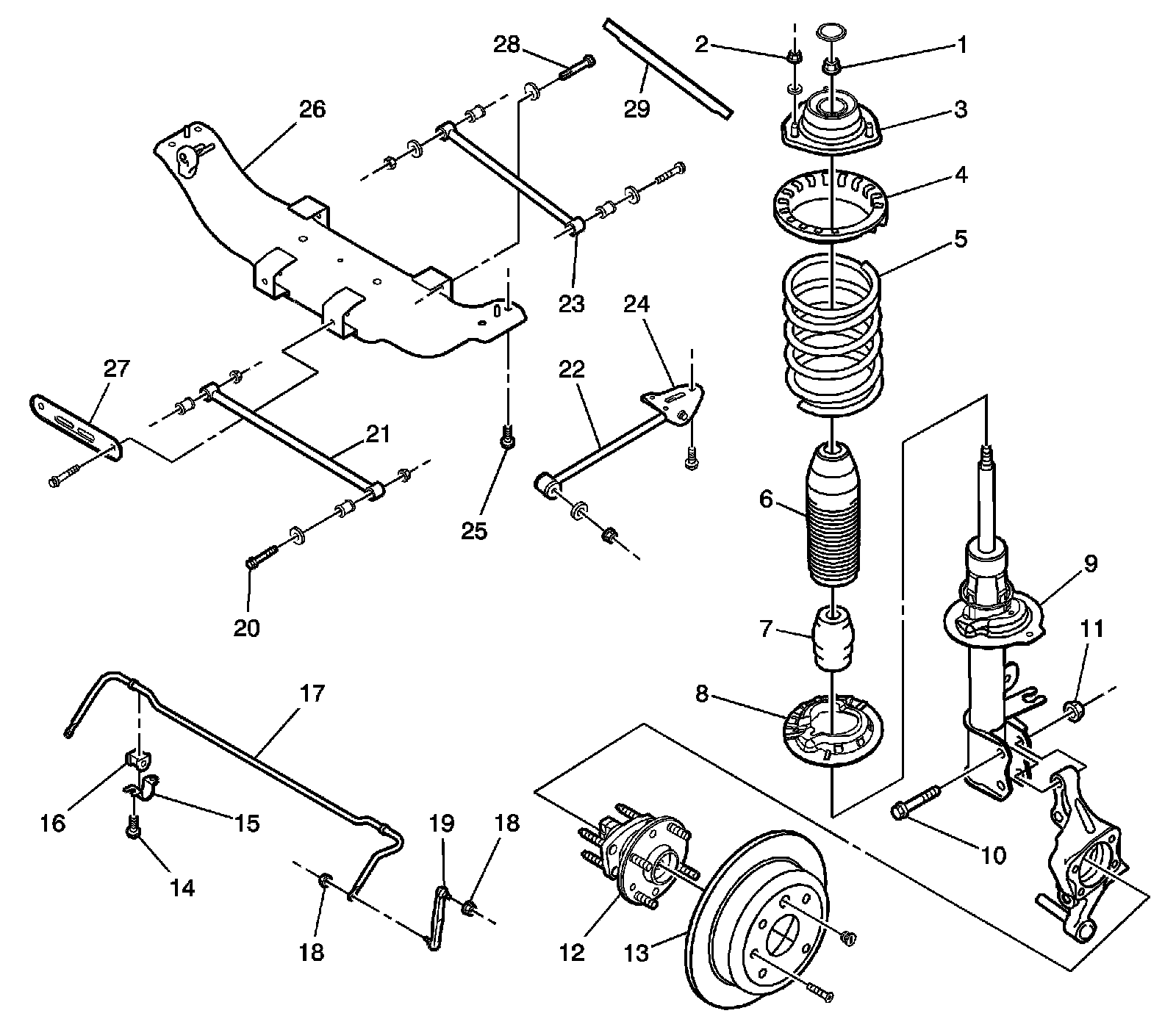

Rear Suspension Disassembled View




1 - Strut Mount Lock Nut
2 - Strut Assembly-to-Body Nut
3 - Strut Mount
4 - Upper Spring Seat
5 - Rear Spring
6 - Strut Dampener Dust Cover
7 - Hollow Bumper
8 - Lower Spring Insulation Ring
9 - Rear Strut Dampener
10 - Strut Assembly-to-Knuckle Bolt
11 - Strut Assembly-to-Knuckle Nut
12 - Spindle Assembly
13 - Brake Disc
14 - Stabilizer Shaft Clamp Bolt
15 - Stabilizer Shaft Clamp
16 - Stabilizer Shaft Insulator
17 - Stabilizer Shaft
18 - Stabilizer Shaft-to-Stabilizer Link Nut
19 - Stabilizer Link
20 - Rear Parallel Link-to-Knuckle Bolt
21 - Rear Parallel Link
22 - Trailing Link
23 - Front Parallel Link
24 - Trailing Link Bracket
25 - Rear Crossmember-to-Body Bolts
26 - Rear Crossmember
27 - Rear Crossmember Cover
28 - Toe-in Adjustment Bolt
29 - ABS Wiring Cover
