Wiper and Washer Systems




Wiper/Washer Schematics

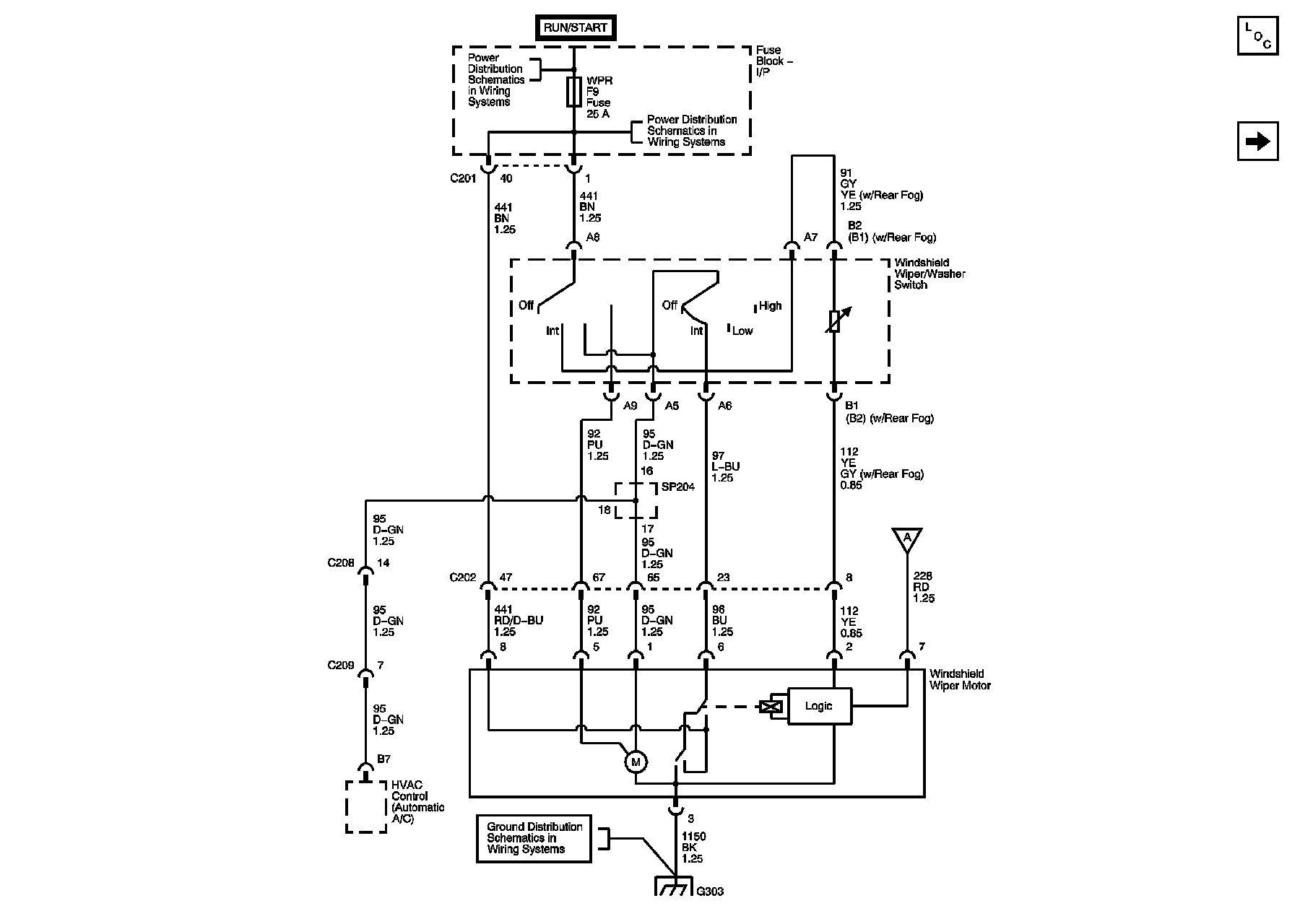

Front Wipers (w/o Rain Sensor)





Front and Rear Washers/Rear Wiper

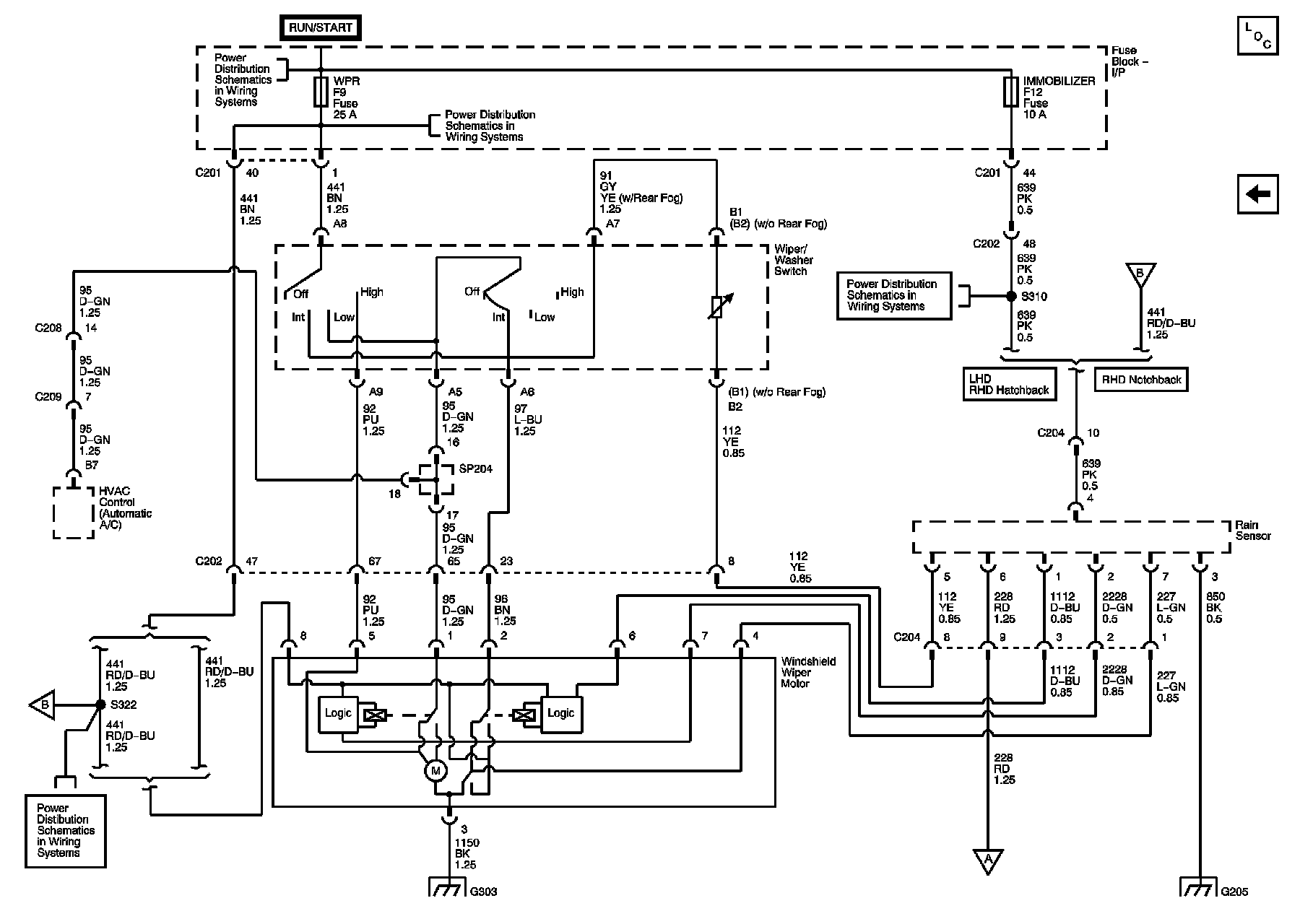

Front Wipers (w/ Rain Sensor)
