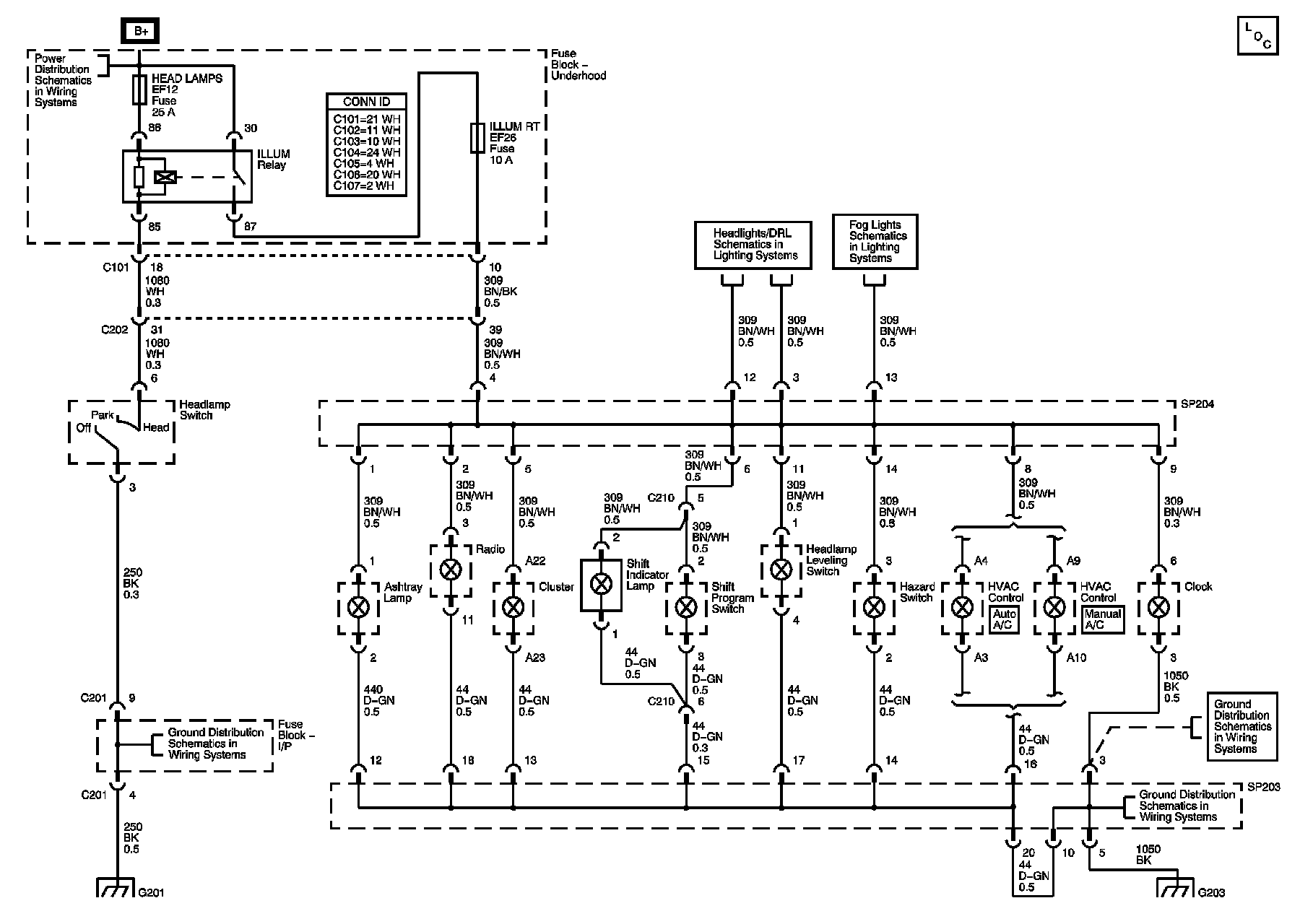

Interior Lights Dimming Schematics
Interior Lights Dimming Schematics
Interior Lights Dimming Schematics
I/P Illumination (w/Dimming)
I/P Illumination (w/o Dimming)
