Home >> Chevrolet >> 2004 >> Optra (CANADA) L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Headlights Schematics

Headlights Schematics




Headlights Schematics

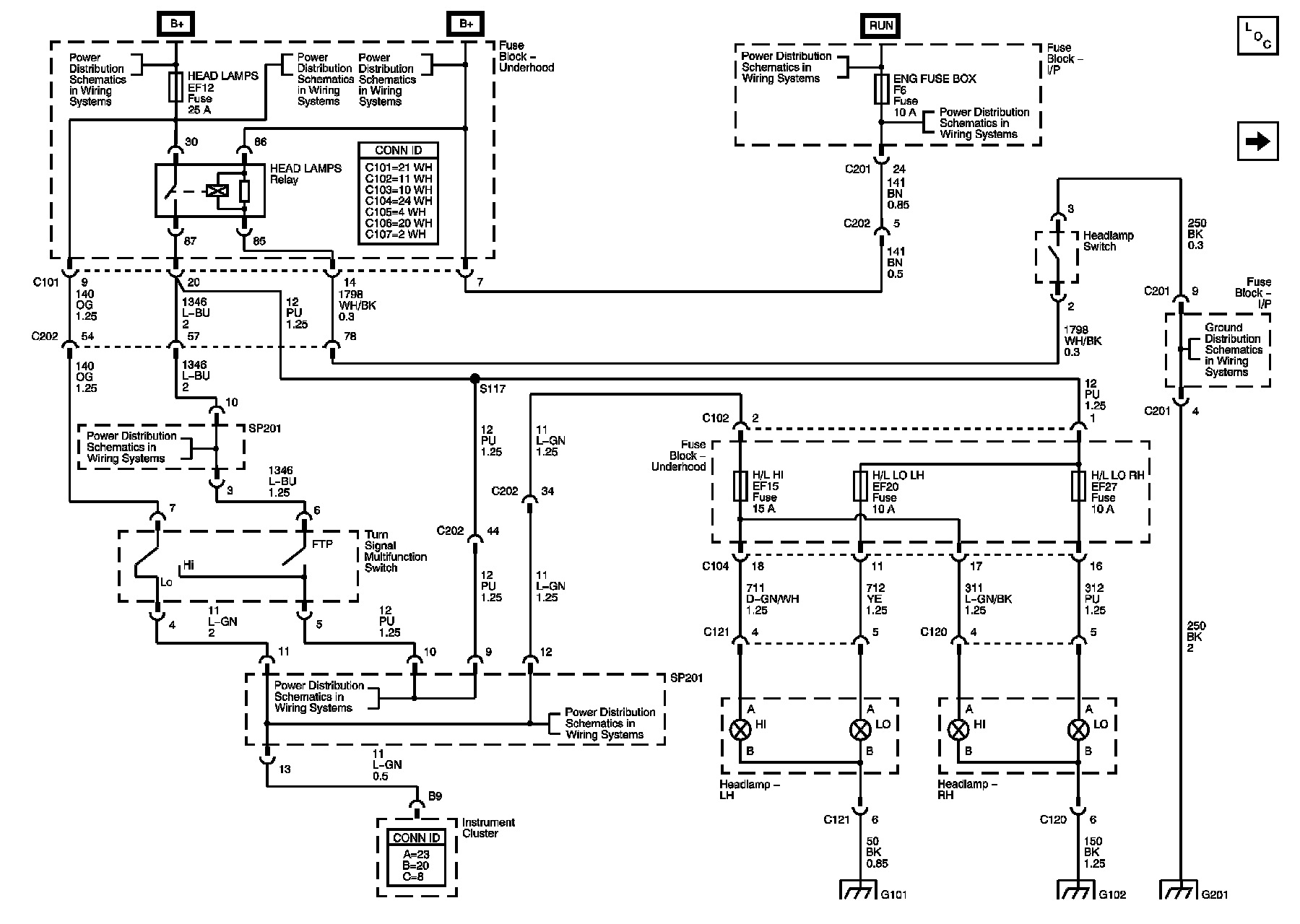

Headlamps (w/o Daytime Running Lamps (DRL))

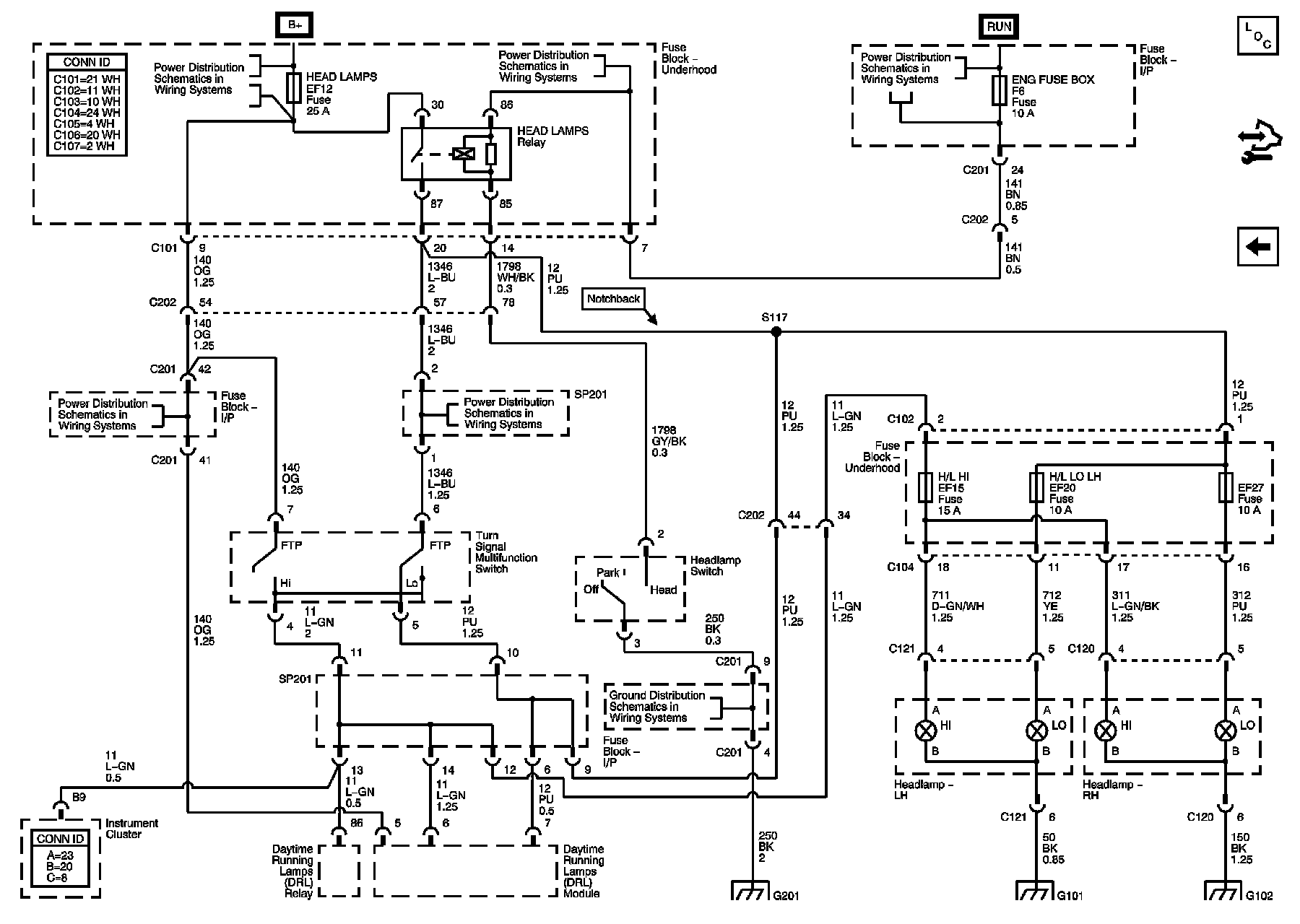

Headlamps (w/ Scandanavia Daytime Running Lamps (DRL))

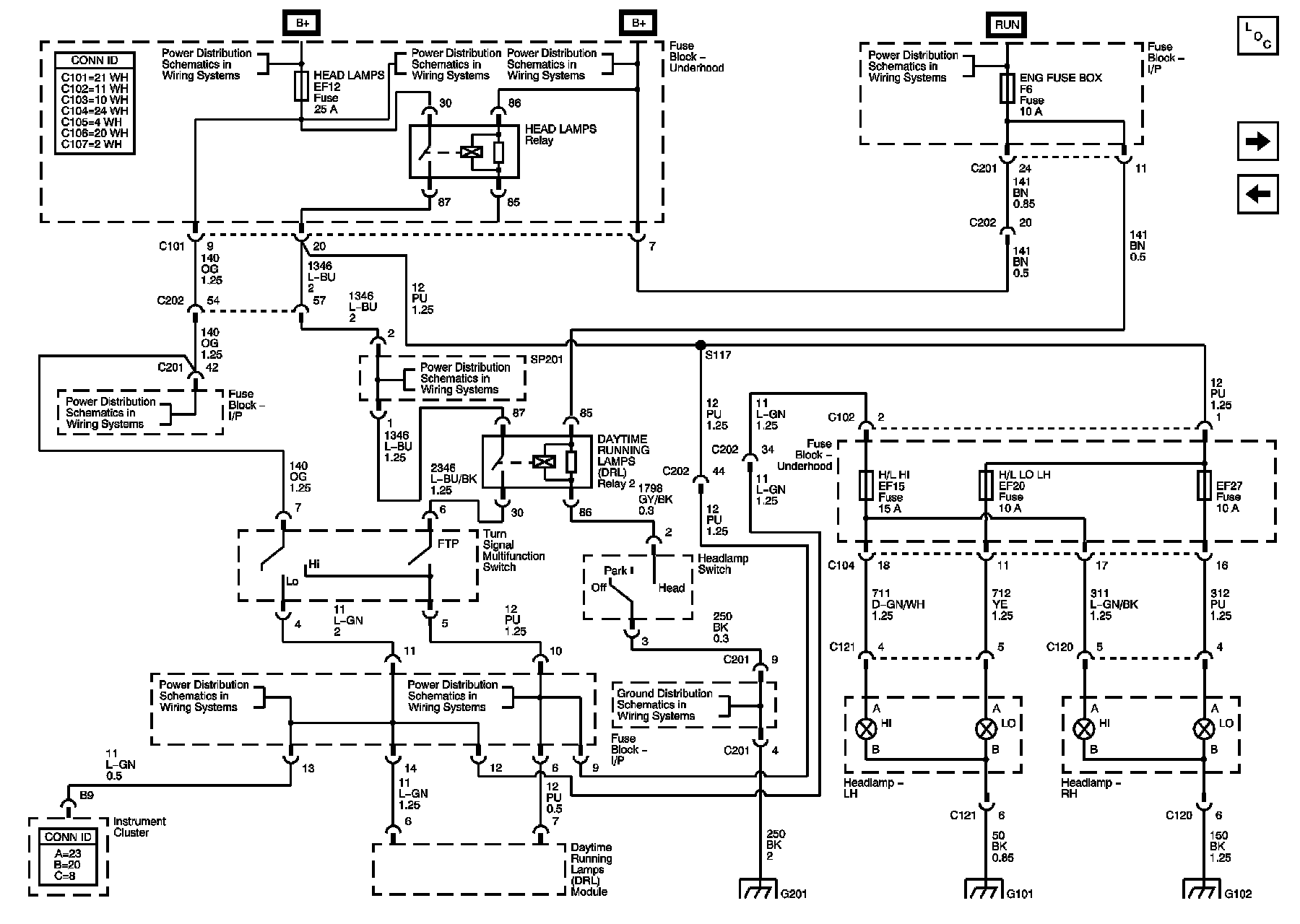

Headlamps (w/ North American Daytime Running Lamps (DRL))
