Chevrolet
>>
2004
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Locations
>>

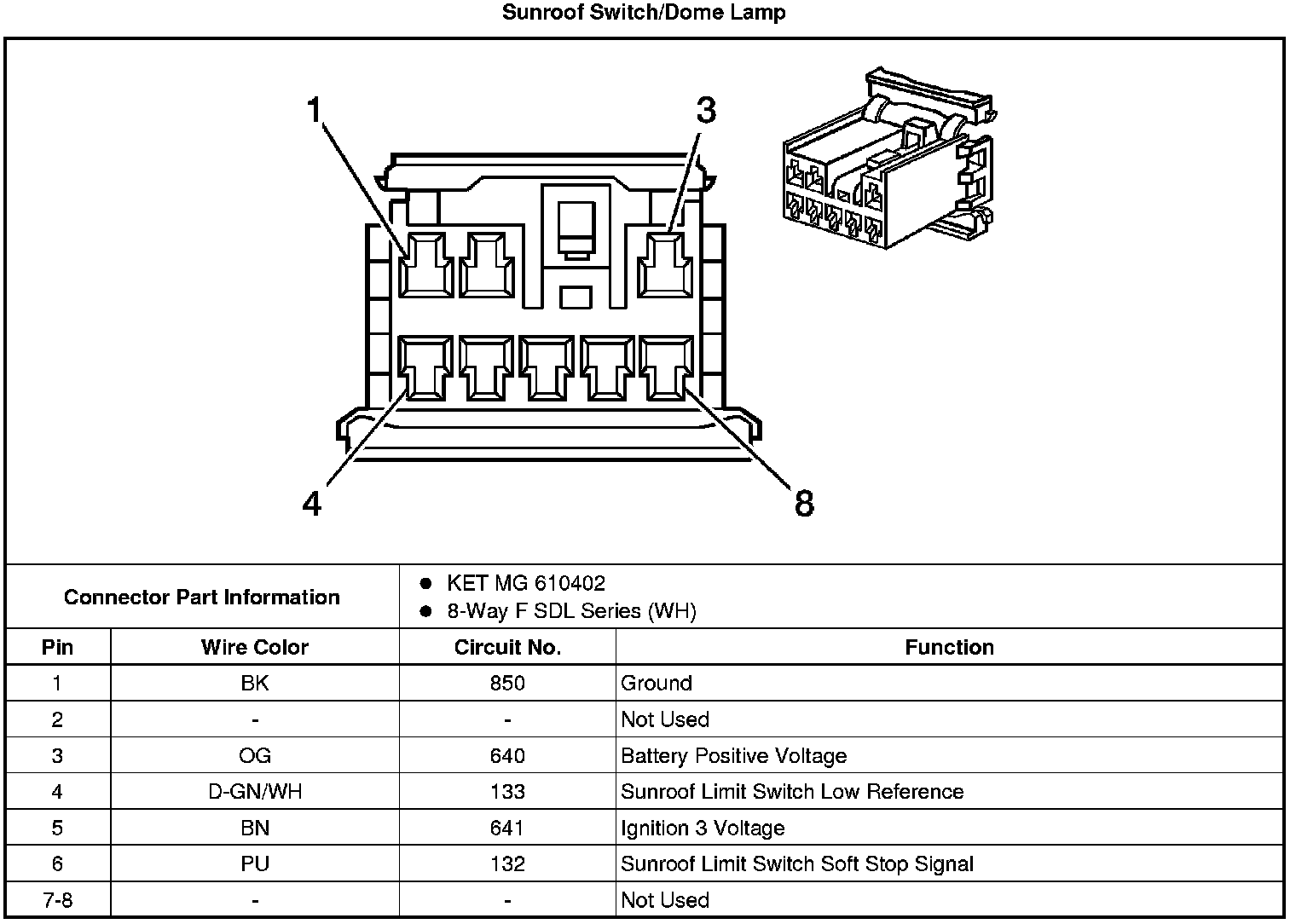

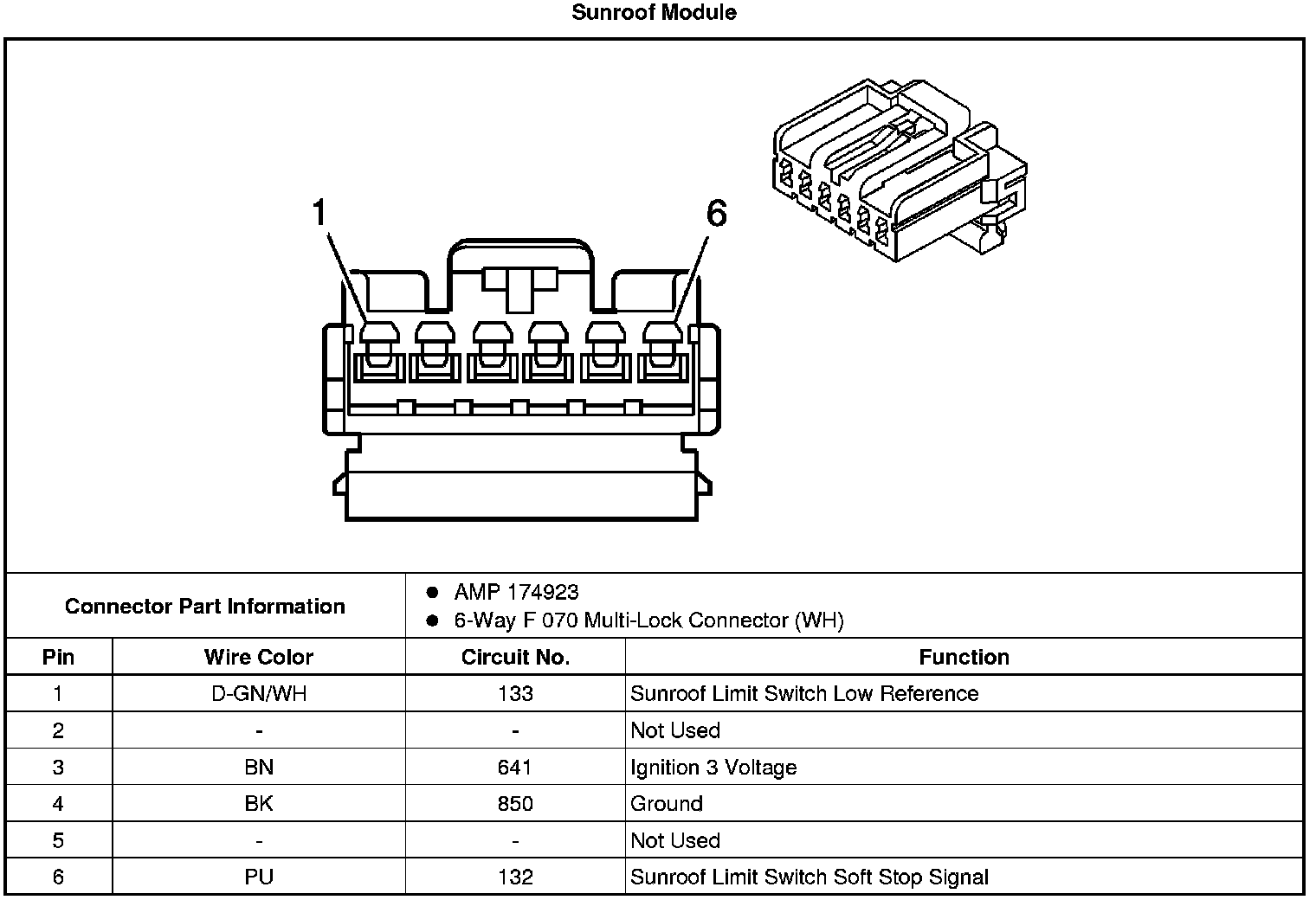

Power Roof Systems Connector End Views
Power Roof Systems Connector End Views
Power Roof Systems Connector End Views
